8. Monitoring
110
(2) Display setting area

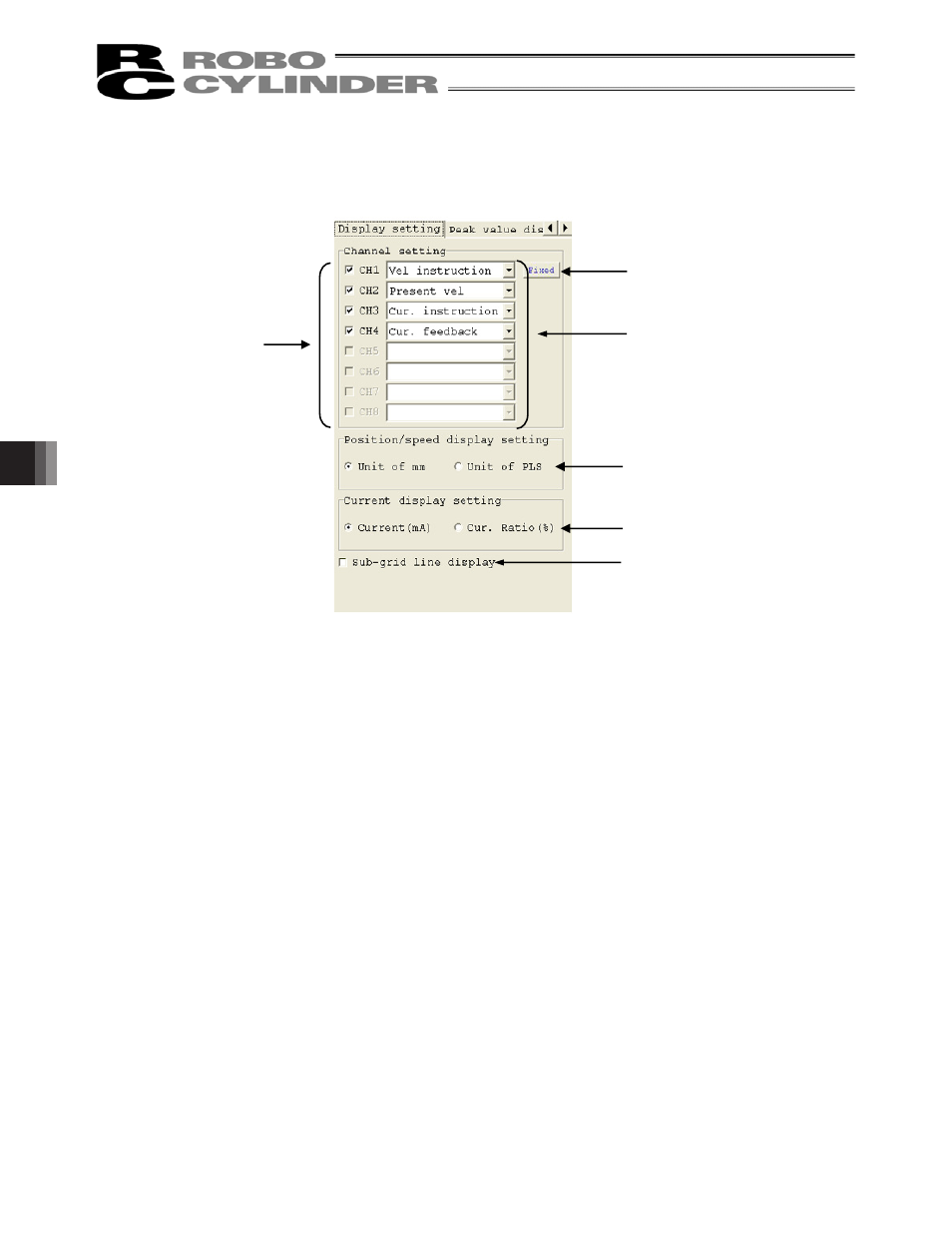

Fig. 8.16 Servo Monitor Window (Display Setting Area)
[1] Show/hide selection check boxes
Selecting each check box displays a graph of the corresponding channel.
When the check box is cleared, the graph disappears.
[2] Data type selection combo boxes
Select the type of each data you want to monitor.
[3]
Position/speed display setting radio buttons
Select the display unit of position/speed data (mm or pls).
[4]
Current display setting radio button
Select the display unit of current data ([mA] or [% of rated current]).
[5] Show/hide sub-grid line selection check box
Selecting this check box shows sub-grid lines.
When the check box is cleared, sub-grid lines become hidden.
[6] Fixed (Version V9.02.00.00 or later)
Determine the data type in the channel setting. After the confirmation, monitoring becomes
available.
[1]
[6]
[2]
[3]
[4]
[5]
