11. Smart T
uning Function (V
ersion V8.03.00.00 or Later)
160
[3] Operation Pattern Setting Tool Buttons

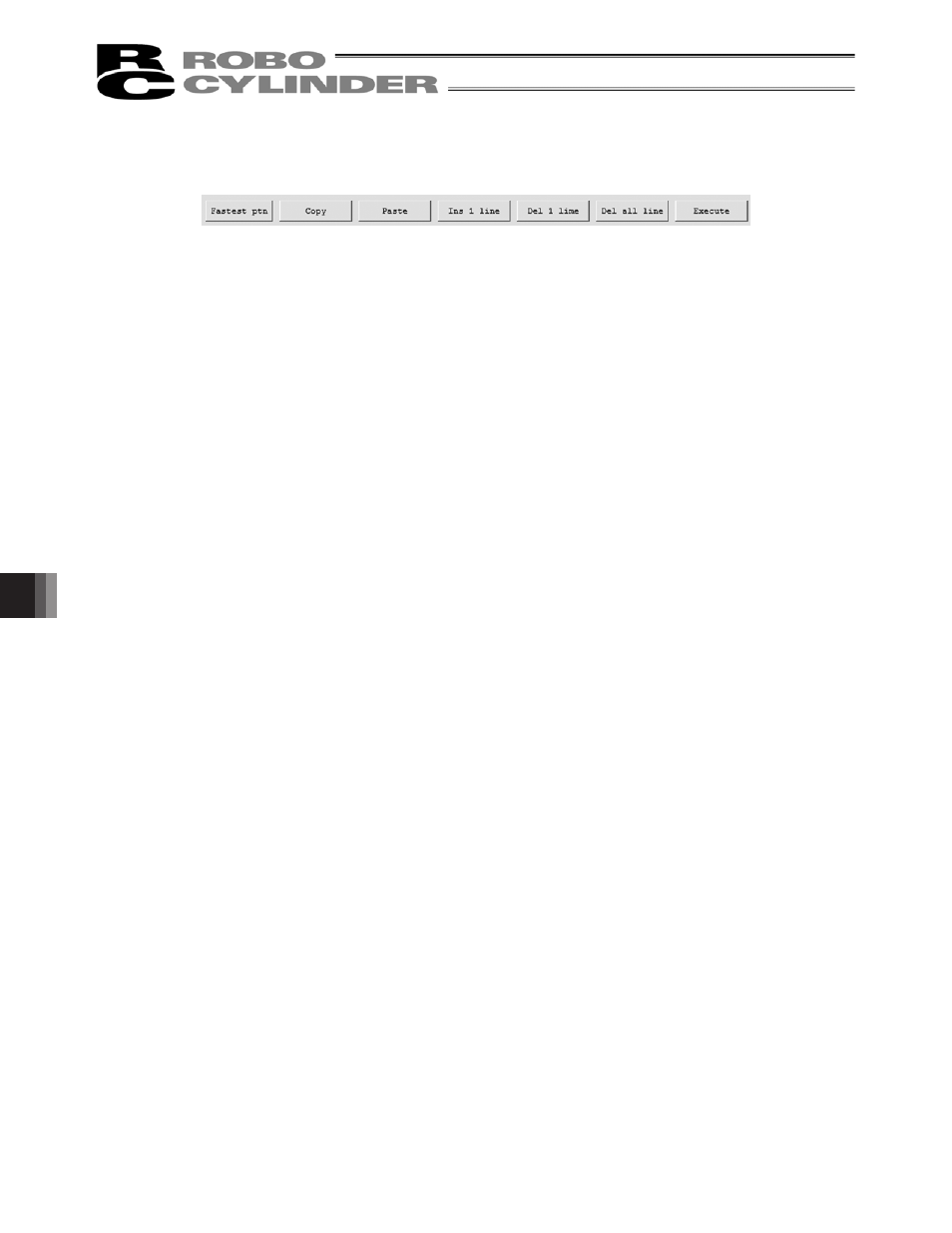

Fig. 11.79 Operation Pattern Setting Tool Buttons
Fastest ptn Button
Click this button to set the operation pattern that provides the shortest operation time considering the
moving distance.
(Note) Fastest Operation Setting cannot be set unless the settings for the carrier load and moving
distance are complete.
Copy Button
Click this button to copy the content of selected cell.
Paste Button
Click this button to paste the copied content to the selected cell.
Ins 1 line Button
Click this button to insert a blank line to the selected cell.
Del 1 line Button
Click this button to delete the content of the selected line and let the lines below the deleted line go
up by one line.
Del all line Button
Click this button to delete all the settings in the operation pattern setting grid.
Execute Button
Click this button to execute the takt time calculation with the operation pattern set to the operation
pattern setting grid.
