Recorder
E-Mon Energy User Manual 8-16 E-MON
Setting the Data Recorder Parameters
To Set the Data Recorder Parameters
1 Click on the Access DBase button.
2 Click on the Recorder Tab. In the Data Recorder Parameters group, select the Profile
Interval
from drop-down.
3 Select the Peak Demand from the drop-down.
4 Select the Rolling Demand from the drop-down. Note: The End of Interval is built in and
it is not necessary to select from the drop-down.
5 Click inside the list box on each time increment and enter the min. and max. Time
Adjustment
or click on the Sup T down arrows to adjust the time frame for each
increment.
6 Select the Time Zone from the drop-down list.
7 Click on Enable DS Time.
8 Click on the S
END R ECORDER
button, to accept/send the data to the recorder.

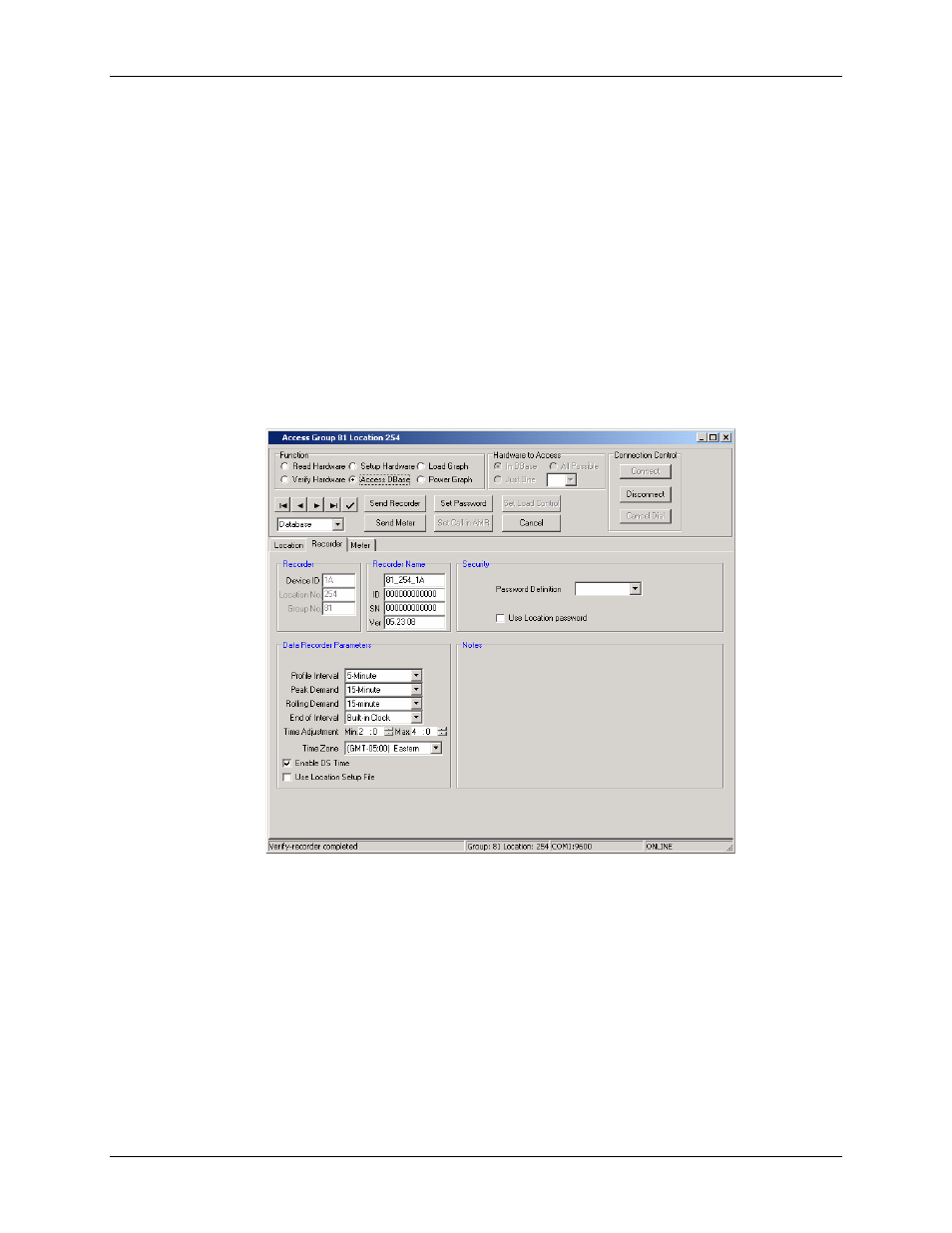

Figure 8.27 - Access Dbase Send Recorder Parameters
