E-Mon Energy Software - Manual (Page 168)

Section 17
Real-Time Graphs
E-Mon Energy User Manual 17-1 E-MON
What Is the Real-Time Load Factor?
The Real-Time Load Factor is a graph that provides information on the current KW load. The Real-Time Load
Factor graph plots meter load at a refreshing rate of once per minute. The Real-Time Load Graph can monitor up to
eight meters from any combination. Refer to the Power Graph function if you need to graph for phase voltage,
Amps, Phase Angles, Power Factor, KW, KVA, and/or KVAR.
The Load Factor Graph is available under the Access Location window and is comprised of three elements – the
Load Factor Graph,
Access Device Explorer, and the Statistic Table. Each device is plotted with different colors and
shown with its ID number and color above the graph. The graph will plot the different devices in their assigned color.
The illustration below shows a Load Factor Graph.

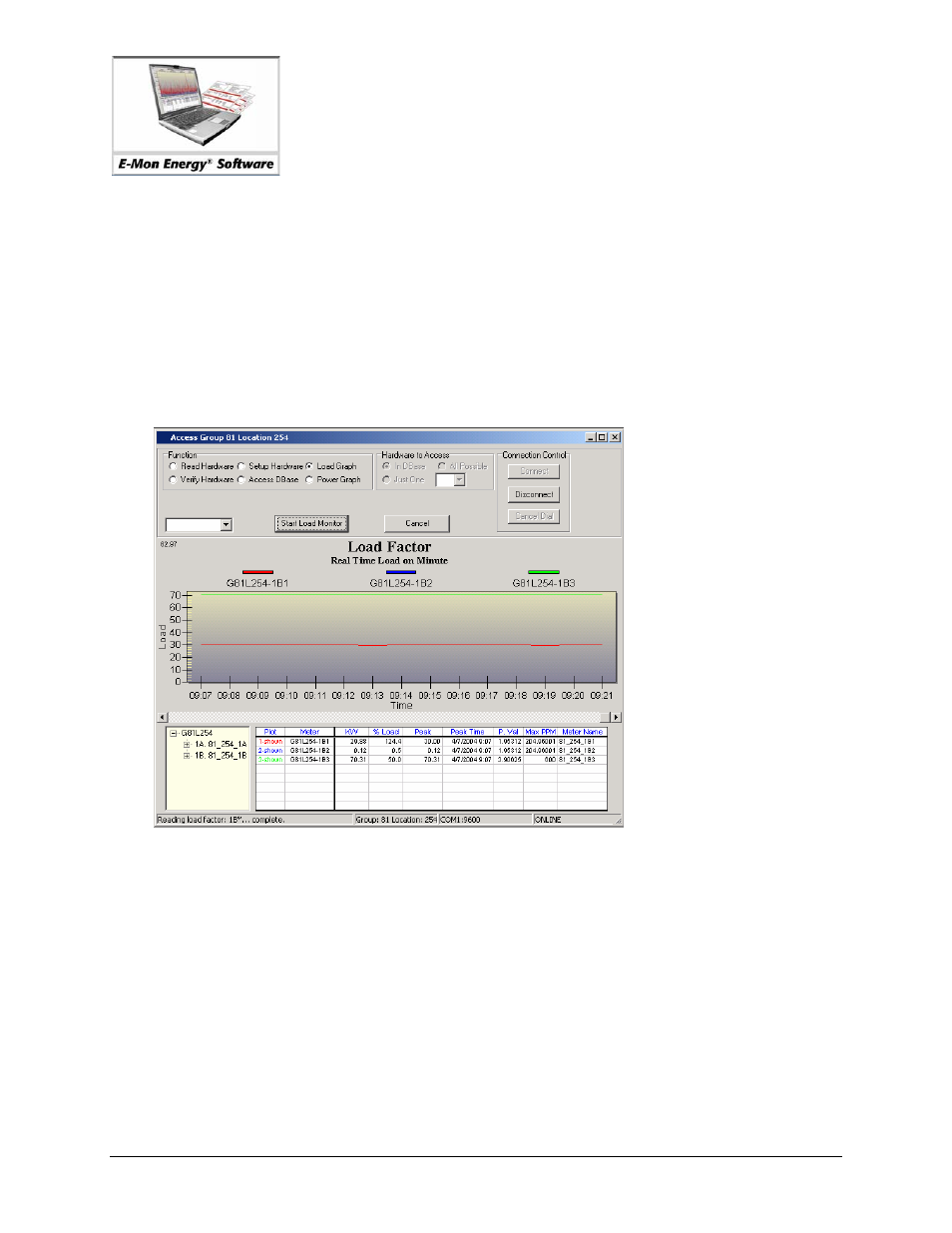

Figure 17.1 - Load Factor Graph
What Is the Access Device Explorer?
Under the graph is a green list box. This is referred to as the Access Device Explorer. The device explorer is used to
select the device(s) to graph and display. The user can right click on the location or individual devices, then select
Graph this Device
from the popup menu. This right-click option allows you to populate the data into the Statistic
Table
of the current meter data.
