Access Location
E-Mon Energy User Manual 14-2 E-MON

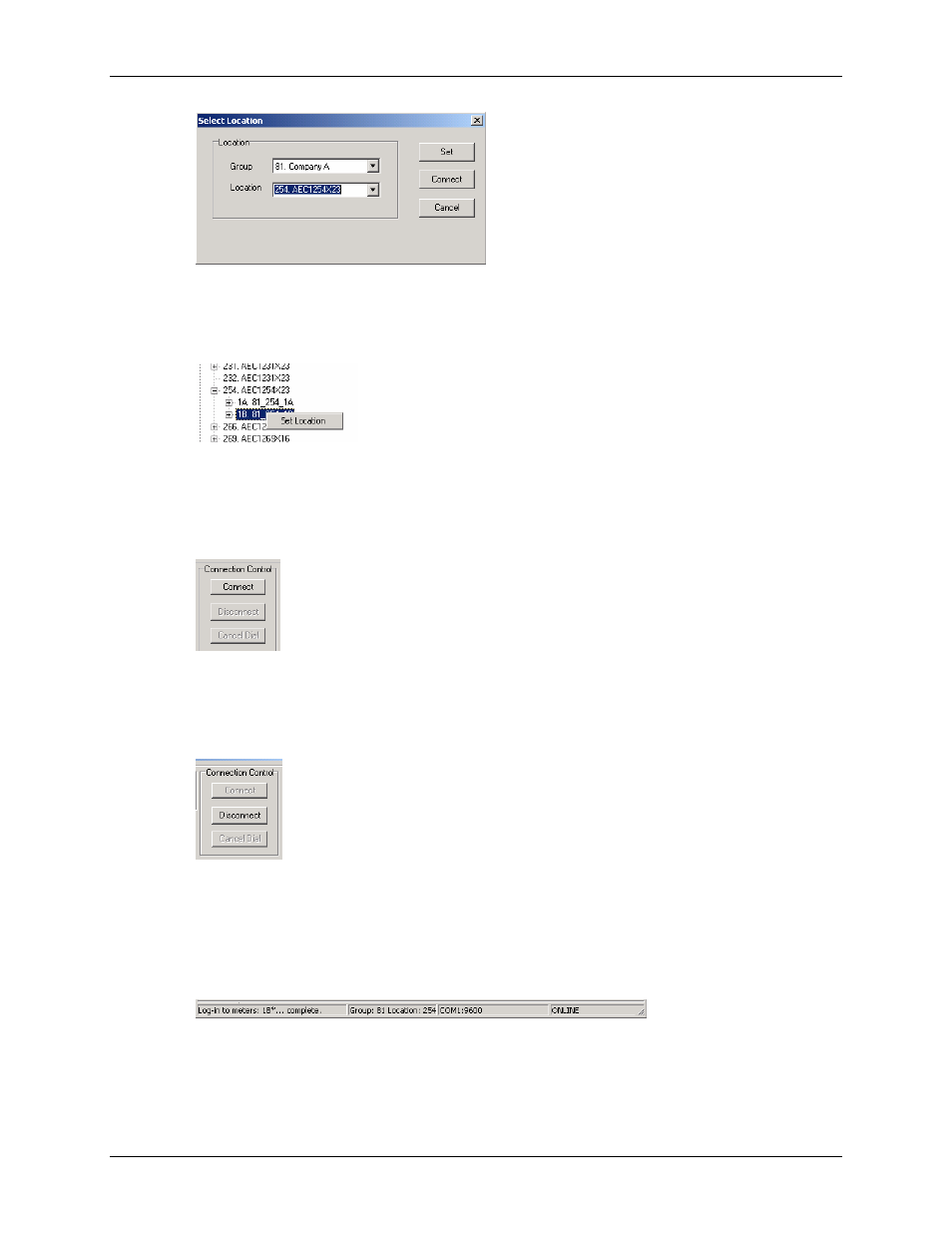

Figure 14.2 - Select Location Dialog
The second way is to select a location from the Device Explorer and right-click to display the Set Location
menu and select a location. See illustration below.
Figure 14.3 - Set Location -Device Explorer
After you have set the location, you must connect to the devices in order to communicate. Here you also have
two options, either through the Select Location dialog or wait until the Access Location window opens, then
in the Connection Control group area, click on the Connect button.
Figure 14.4 - Connection Control – Connect
To stop communication and disconnect from the devices you can click the Disconnect button located
in the Connection Control group or just click Cancel Dial.
Figure 14.5 - Connection Control - Disconnect
Access Location Window Status Bar
The status bar is located at the bottom of the Access Location window. The status bar displays the current
Function, Group and Location, Communication, and System status.
Figure 14.6 - Access Location Window Status Bar
