Access Location
E-Mon Energy User Manual 14-13 E-MON
Load Graph Functions
E-Mon Energy™ software provides a real-time Load Graph that plots meter load as a ratio of the average
load per minute. The real-time Load Graph can monitor up to eight meters from within the current location.
The Load Graph screen can be viewed by clicking on the Load Graph radio button at the top of the window.
For information on how to use the Load Graph, see the Real-Time Load Graph section.

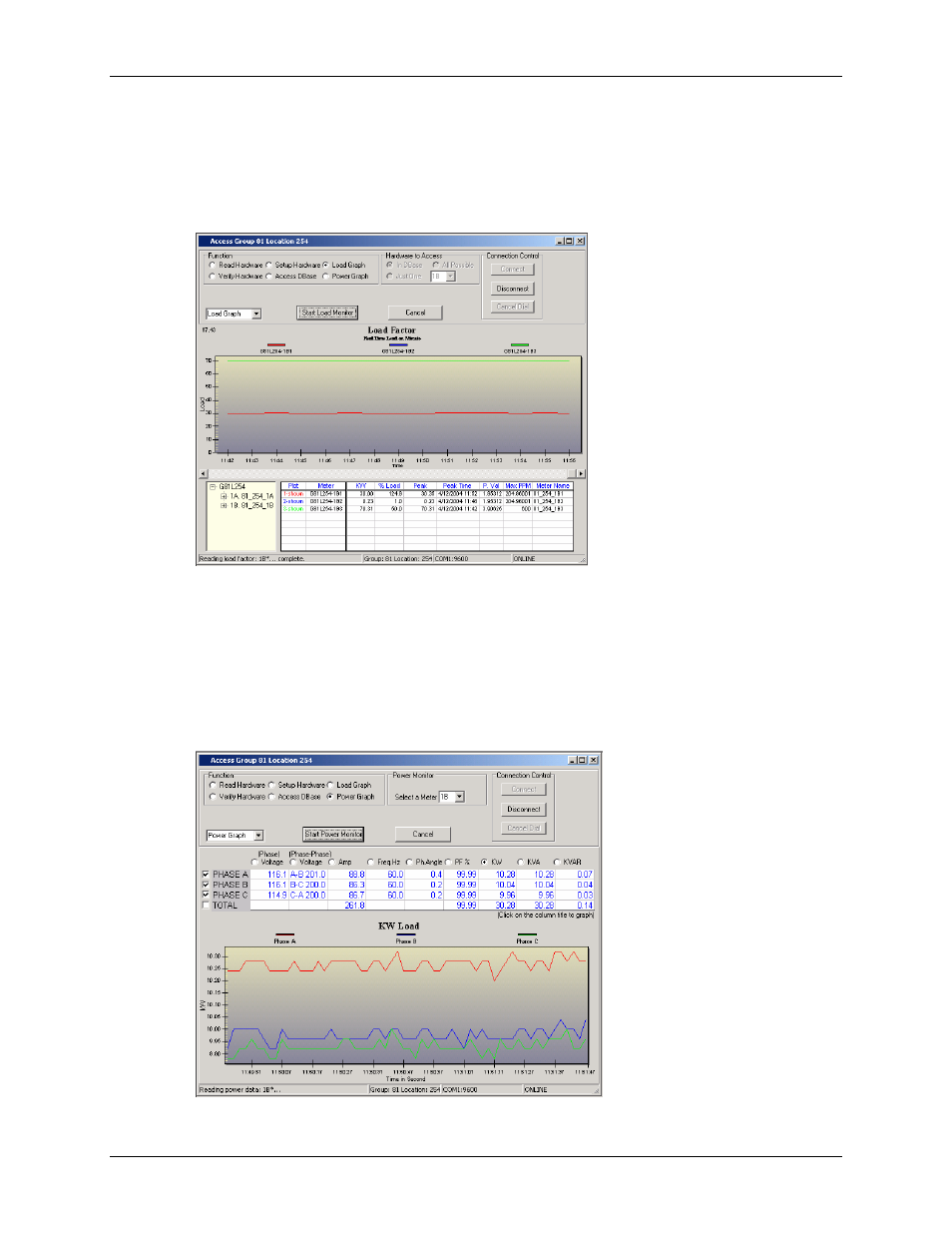

Figure 14.21 - Access Location Function – Load Graph
Power Graph Functions
E-Mon Energy software provides real-time Power Graph that displays different graphs for phase voltage,
Amps, Phase Angles, PF%, kW, kVA, and kVAR. The Power Graph screen can be viewed by clicking on
the Power Graph radio button at the top of the window. For information on how to use the Power Graph, see
the Real-Time Load Graph section.
Figure 14.22 - Access Location Function – Power Graph
