Connection Parameters
E-Mon Energy User Manual 5-5 E-MON

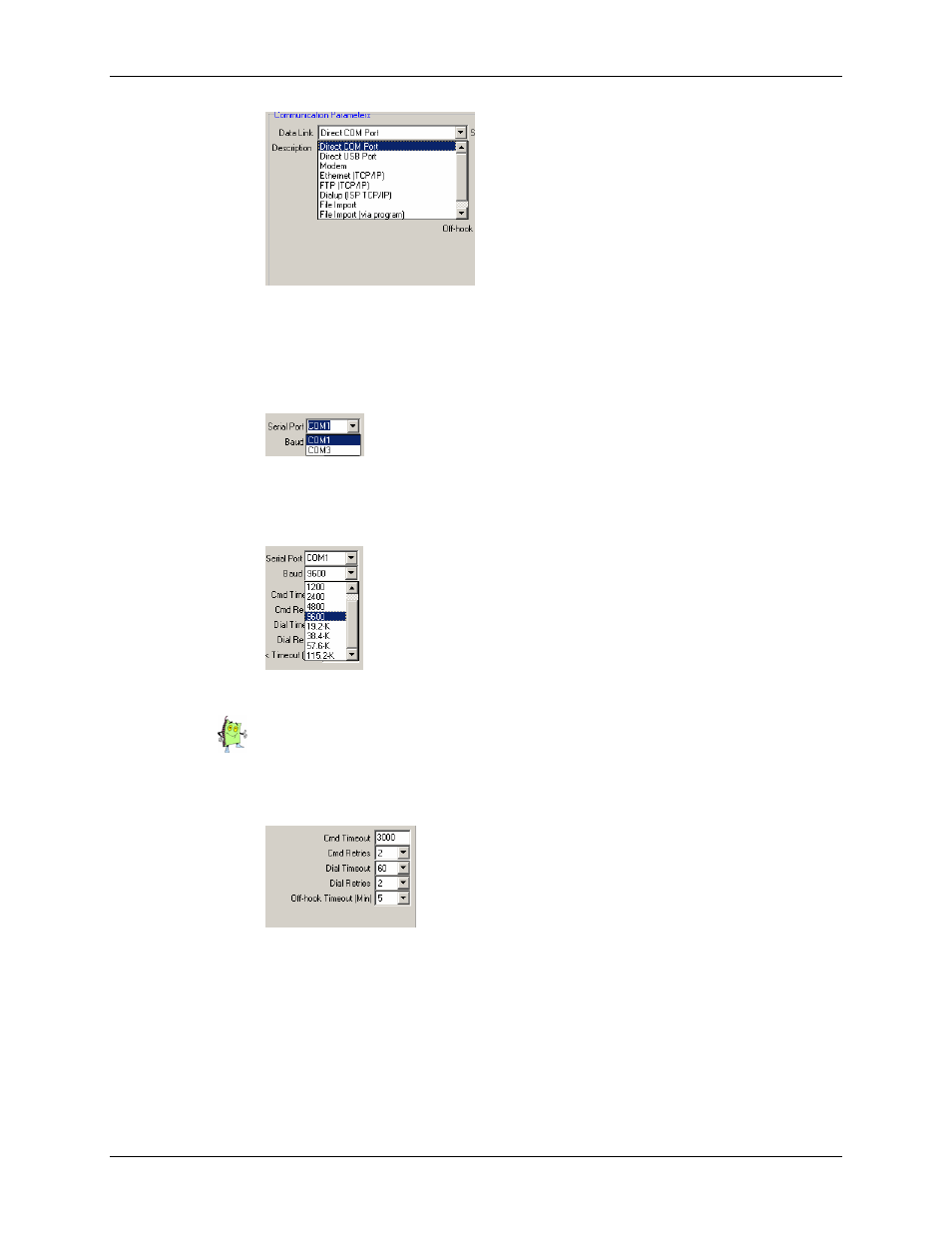

Figure 5.7 - Direct Comport Connection Data Link
6 In the Description field type a description for your connection type (i.e. Serial Port A).
7 From the Serial Port drop-down, select the serial port; usually COM1 or COM2. COM3 is
usually for the internal modem. Consult your computer hardware configuration for the
specifics of your computer setup.
Figure 5. 8 Connection Serial Port
8 From the Baud Rate drop-down, select the correct Baud Rate for your hardware
configuration. This baud rate must be the same as the recorder (device) baud rate.
Figure 5.9 - Connection Baud Rate
Be sure to check your system, recorder and meter configurations for the correct baud rate.
9 In the Cmd Timeout field, type in the pre-set time period allowed for E-Mon Energy™ to
wait for a response to a command from the recorder. (Default setting is 3000 ms)
Figure 5.10 - Command Timeout
10 From the Cmd Retries drop-down, select the number of times you want E-Mon Energy to
retry sending the command to the recorder, should it not get a response after Cmd Timeout.
(Default setting is 2)
11 From the Dial Timeout drop-down, select the pre-set time allowed for E-Mon Energy to
wait for a connection before giving up and going to a Dial Retry. (This option is applicable
to modems only)
12 From the Dial Retries drop-down, select the pre-set time allowed for E-Mon Energy to
attempt to connect to the remote system. (This option is applicable to modems only)
