Virtual Meter
E-Mon Energy User Manual 10-6 E-MON
Creating a Virtual Meter
To select a Virtual Meter:
1 Select a Recorder from the Virtual Location in the Device Explorer.
2 Click on the Virtual Meter tab and then click on the Panel Action“ + ” button to add a new
meter.

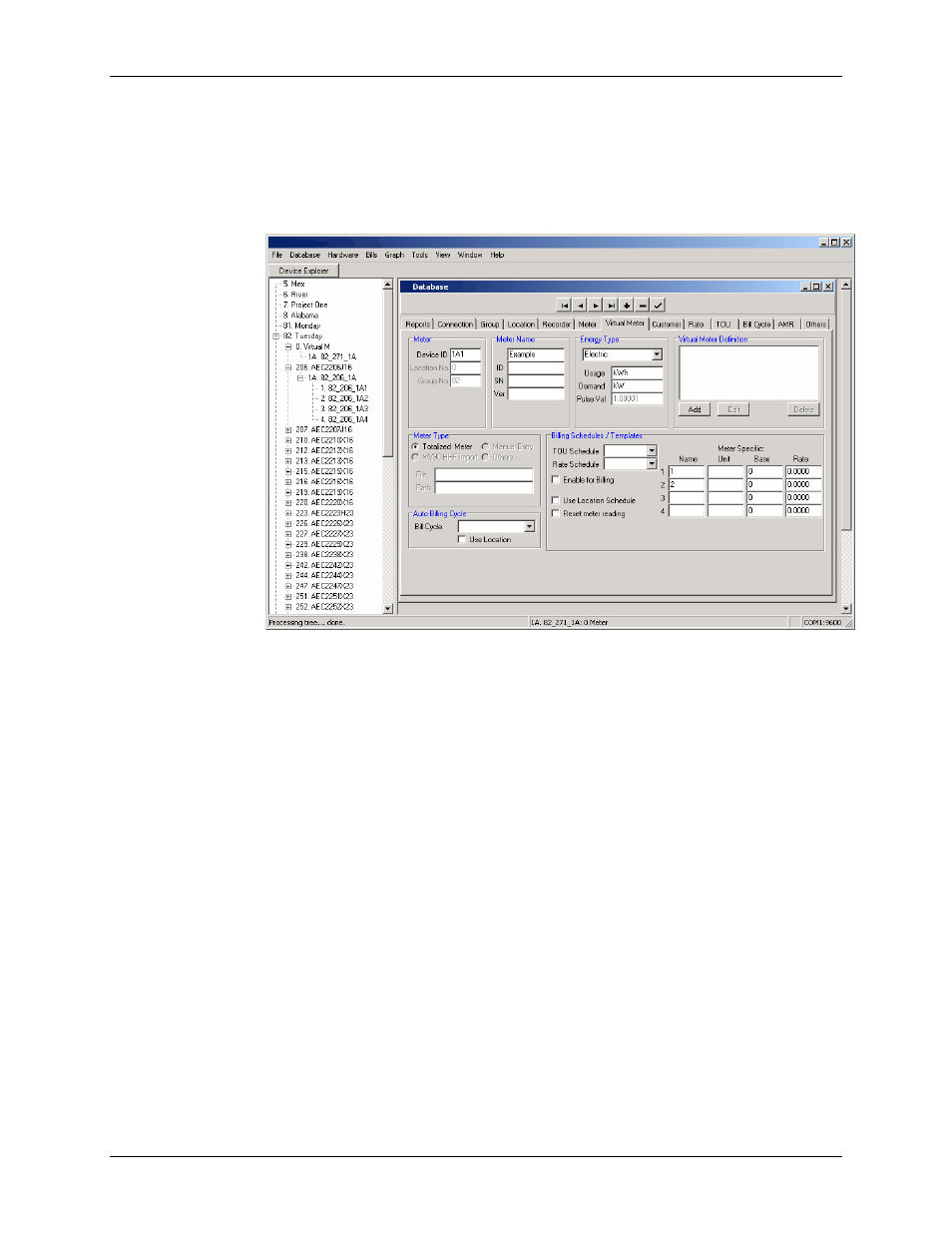

Figure 10.6 - Virtual Meter Tab
3 In the Device ID, type in (1A1, 1A2, …, 1Z1,…, 1Z8 up to 8A1, 8A2, …, 8Z1,…, 8Z8).
Note: This field is required and must be unique within each location.
4 Tab across and type in a Meter name.
5 In the Virtual Meter Definition list box, click the A
DD
button. The Virtual Meter dialog
box opens.
6 From the Select Meter Node device directory tree, drill-down and select the meter you
want. The Meter fields on the right will populate with the meter profile. If you need to add
total readings, in the Percent (%) field, type in “100.” If you need to subtract total readings,
in the Percent (%) field, type in “-100.” If you need to add/subtract partial readings, type in
the percentage number.
7 Click OK. The meter will display in the Virtual Meter Definition list box.
