Recorder
E-Mon Energy User Manual 8-15 E-MON
Initializing the Recorder
To Initialize the Recorder:
1 With ONLINE status, click on SetupHardware, and click on I
NITIALIZE R ECORDER
Button. The Initialize recorder to factory dialog box opens.

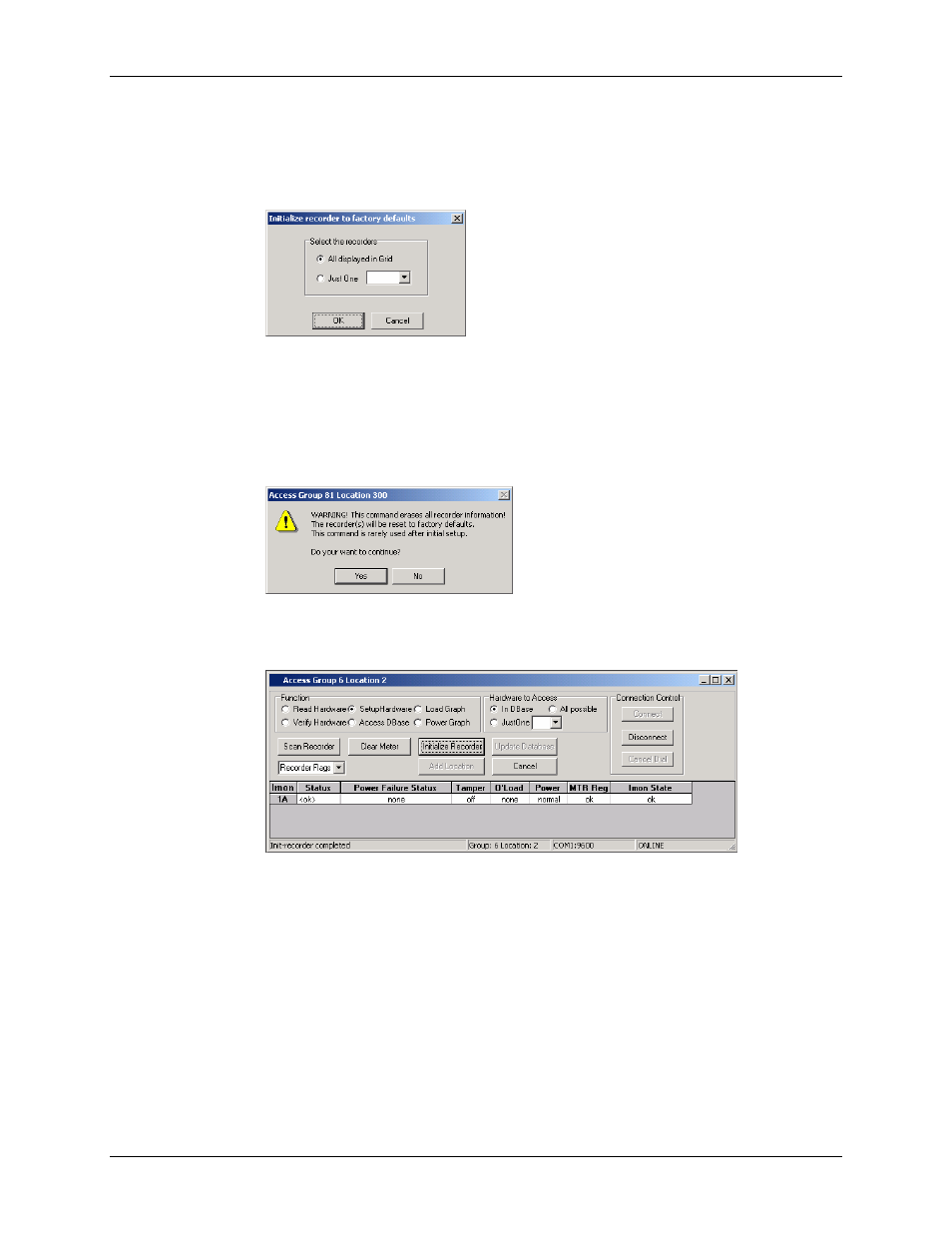

Figure 8.24 - Initialize recorder to factory defaults dialog
2 Select either the All displayed in Grid or Just One and choose from the drop-down list.
Since this is a New Location, we are selecting All displayed in Grid. A Just One example
can be an existing location where another recorder is added to it.
3 Click OK or C
ANCEL
to exit. A message dialog box opens, warning that this command
erases all record information and resets back to factory default settings.
Figure 8.25 - Warning Dialog
4 Click the Y
ES
button. The Access Group opens with an Initializing recorder status.
Figure 8.26 - Access Group Initializing recorder status
