What is a Recorder?
The recorder is a microcontroller base hardware consisting of components like ROM, RAM, real-time clock, and
battery backup. Most recorders are designed for use with the AMR software. Some models are capable of
automatically calling in at a programmed schedule – hourly, daily, weekly, or monthly. Recorders can be installed at
a single location or multiple locations depending on the site configurations. Each recorder works independently and
is capable of reading 4, 8, or 16 meters. A number of these recorders have a built-in meter. Some of the recorders
are:
• IDR (Interval Data Recorder) – This recorder reads and records data. Typically, there are two
configurations – standalone unit for use with standalone meters or mounted inside a MMU cabinet with
E-Mon meters. To communicate with E-Mon Energy™, the recorder needs an E-Mon Energy Key
(Communication Device).
• Class 3000 – An all-in-one recorder and meter, the Class 3000 is available as a standalone unit. The
Class 3000 is capable of providing detailed information on power – amperage, voltage, power factor,
phase angle, etc. To communicate with E-Mon Energy, the Class 3000 needs an E-Mon Energy Key
(Communication Device).
IDRs and Class 3000s can be connected within the same physical network. They both utilize the same EZ7 protocol.
What is the Recorder Panel?
The Database Group provides a recorder panel for managing and creating recorder parameters. The Recorder tab
will display the Device ID and Name, along with the Data Recorder Parameters. The following table describes
fields on the Recorder tab.

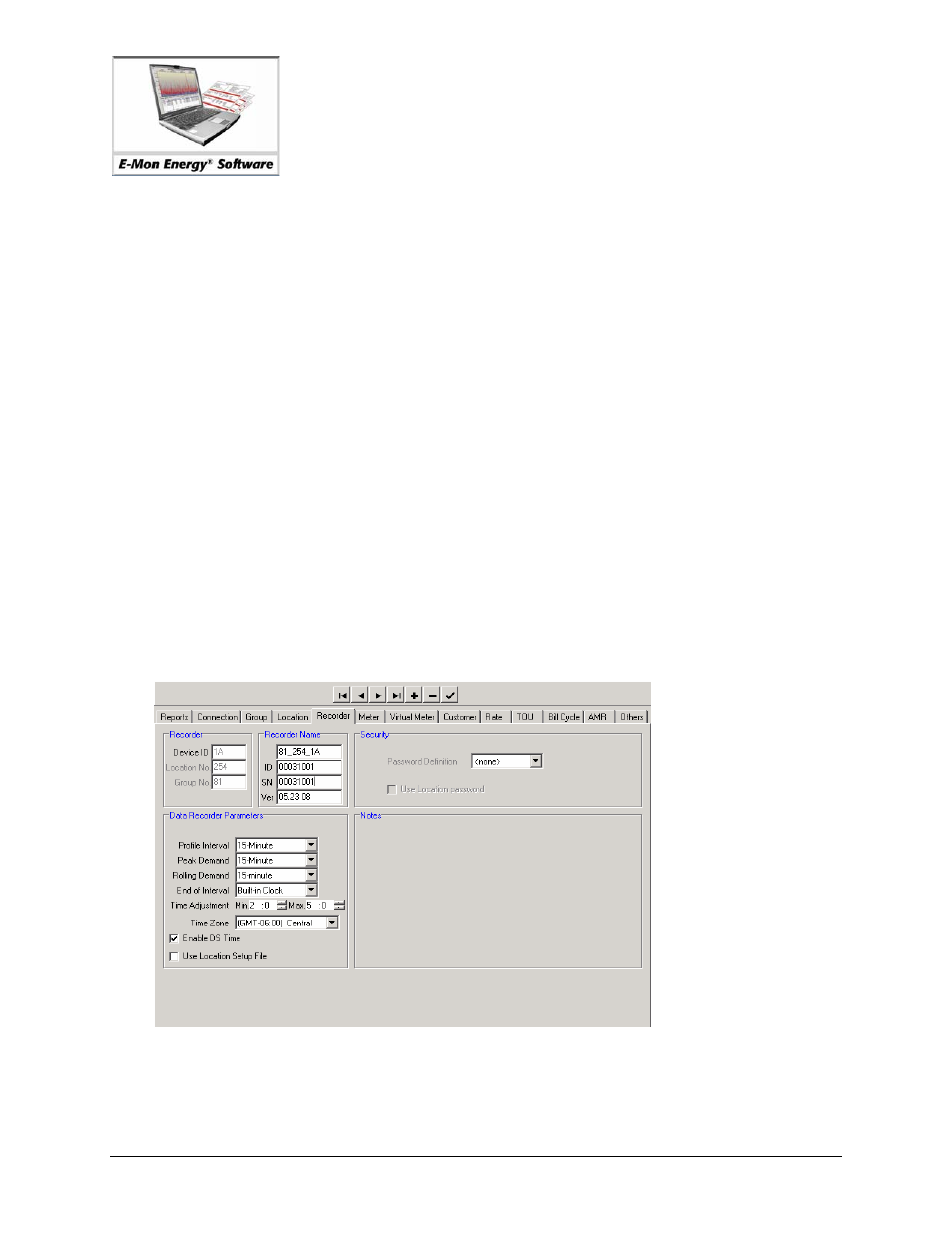

Figure 8.1 - Data Access – Recorder Panel
