Rate Table and TOU Schedule
E-Mon Energy User Manual 12-3 E-MON

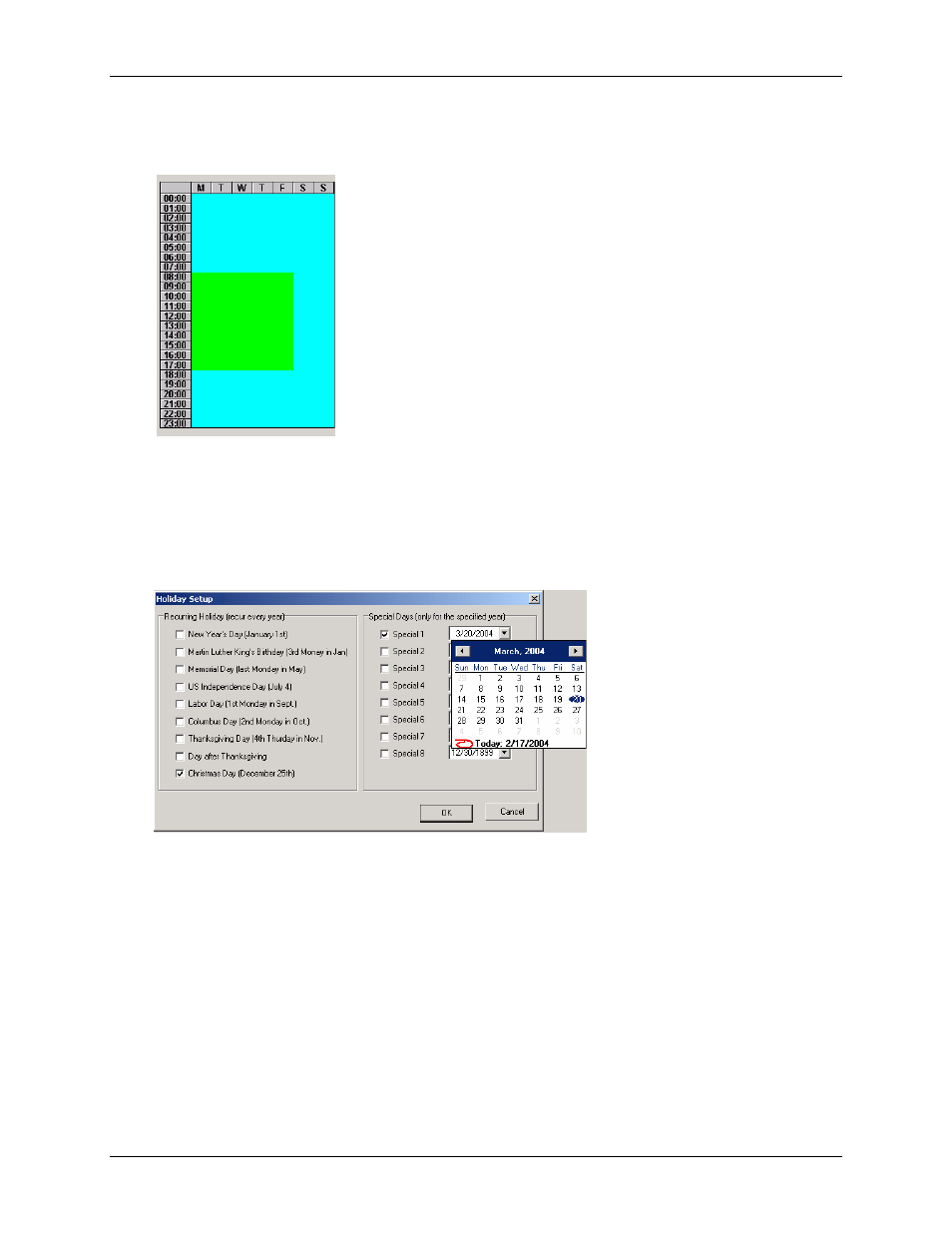

The TOU setup displays a color chart. The TOU has a color-coded graph, which displays the entire schedule based
on Days and Time. The “time allocation” specified, will be displayed to help you visually verify the correctness of
the settings. Should there be a time slot unaccounted for, the graph will display reflecting the missing slot.
Figure 12.3 - TOU Graph View
The TOU schedule supports up to eight programmable TOU Types to accommodate the different times of the day
(i.e. On-Peak, Off-Peak or Mid-Peak) for energy usage and demand. For specific events such as holidays or off days
(weekends) a Weekend and Holiday option is accessible for the TOU schedule. A dialog box is provided to
incorporate the Holiday schedule through the “Holiday Setup” button. The illustration below displays the Holiday
Setup dialog.
Figure 12.4 - Holiday Setup
