Setting up the Meter Information
To select the Meter Location:
1
Click on Meter Tab. In the Meter Size group, select the Voltage from the drop-down.
2
Select the Sensor Size (Amps) from the drop-down.
3
Select the Set of Sensors (Sets) from the drop-down.
4
Select the Pulse Input Type (kWh Meter) from the drop-down.
Note: Under the Pulse Input Type, the default setting most commonly used is 50/50. The
On/Off (50/50) must be selected
.
5
From the Energy Type group, select the Pulse Fact.
Note: The Meter Multiplier is pre-set and is automatically calculated
.
6
Click on the Send Meter button to accept/send the data to the meter.

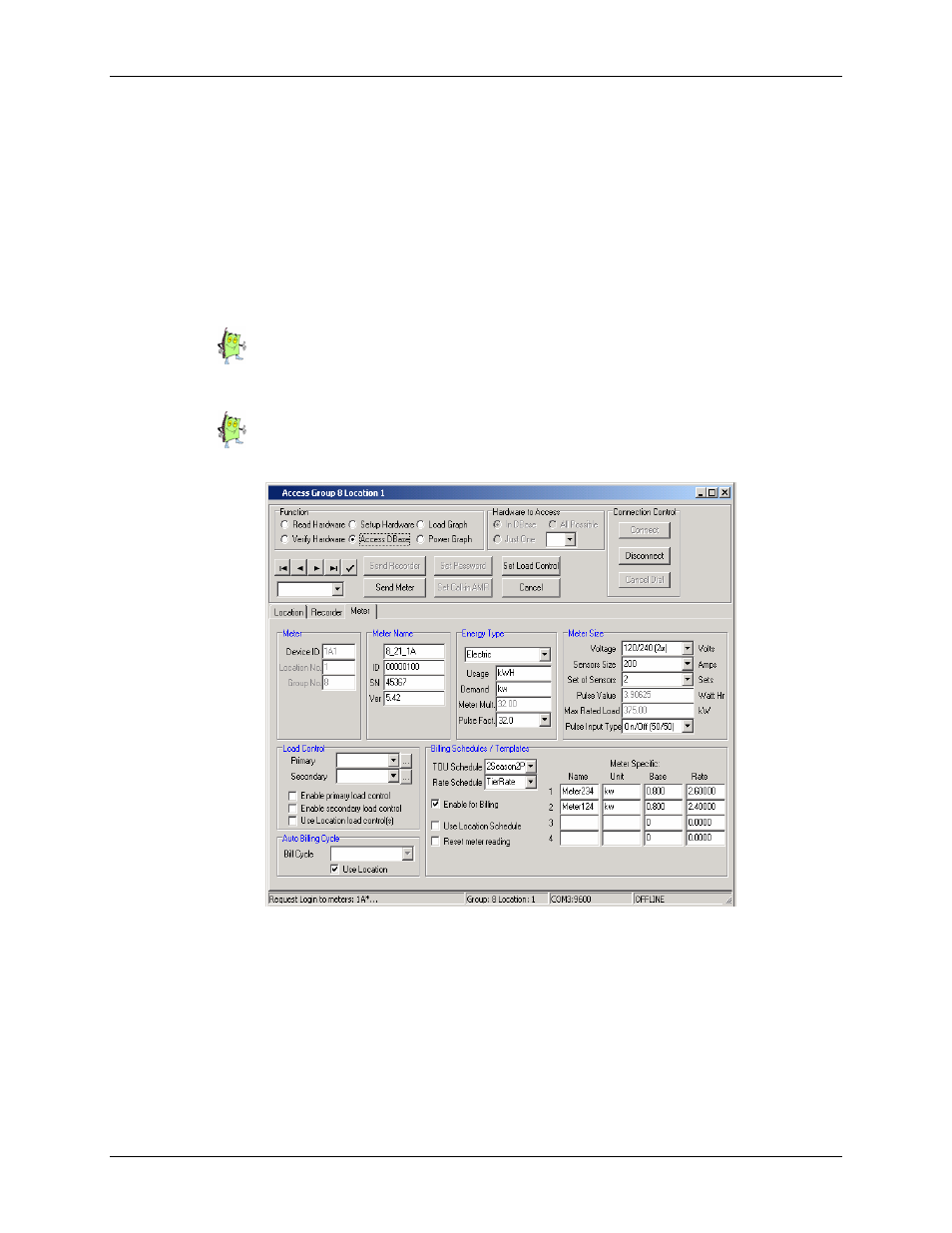

Figure 9. 9 - Access DBase Send Meter Parameters
Reading the Meter Hardware
To read the Meter Hardware:
1
From the Access Function Group, click on Read Hardware. Click on Profile Status to
display the status (i.e. Status, Start Date, Days left from last Download, Sampling Rate,
State [On/Off], Last Time downloaded data [Download Thru], and how many Days left to
Download to Avoid Data Lost). If you want to read only one meter, select Just One and
choose the Device ID from the drop-down list to the right.
