ConfiGuraTion anD funCTion of The moDules
English
8645 - 9
FIELdBuS MOduLE cANOPEN
config�uration and Function
The fieldbus module connects the FreeLINE automation system to
a field bus network.
The module is used for digital networking with the higher level
control system.

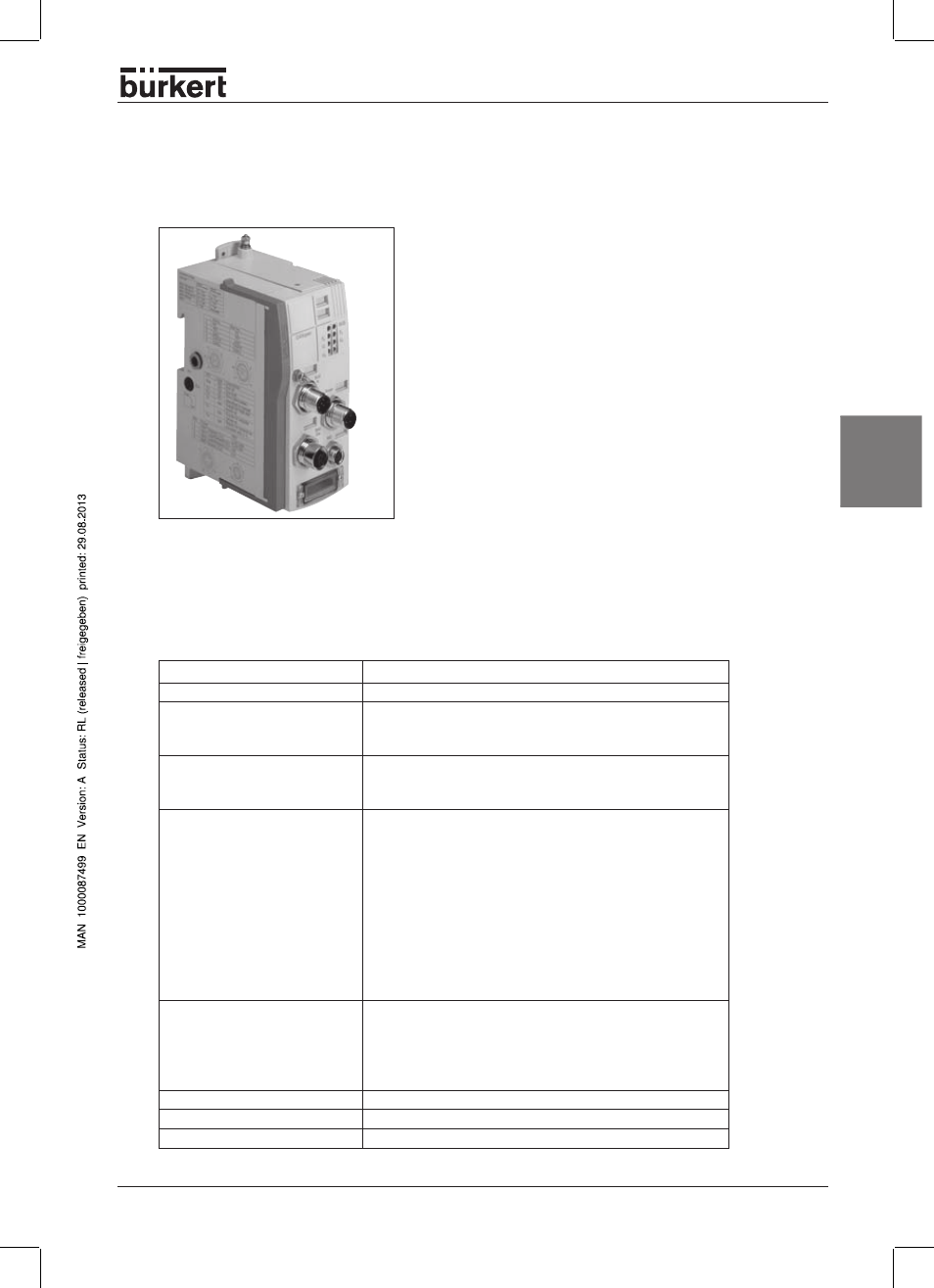

Illustration: Fieldbus module CANopen
Technical data
General Technical data
Operating voltage 24 V -15 % / +20 %
Residual ripple 2 Vss
Current consumption
Inputs / logic
Outputs
max. 1 A
max. 4 A (M12)
CANopen
transmission rate
20 kBaud to 1 MBaud
(selectable using rotary encoder switch)
Electrical connections
Power supply
CANopen incoming
CANopen
outgoing RIO
Address setting
Address range
Diagnostics
Integrated diagnostics
interface
Diagnostic LEDs
M12, plug, 4-pin, max. 4 A
M12, plug, 5-pin, a-coded
M12, jack, 5-pin, a-coded
M8, jack, 4-pin
using rotary encoder switch
0 to 99
-pin (RM 2.54)
2 x bus status, 2 x error indication, x supply voltage
Pneumatic connections
Compressed air supply
Exhaust air auxiliary control air
Pilot control exhaust air
G 1/4”, NPT 1/4”, D10
G 1/4”, NPT 1/4”, D10
M5, D6, D4, D 1/4”
M5, D6, D4, D 1/4”
System expansion possibilities up to 15 RIO participants
Material PBT
Weight 50 g
