Install the FE connection on the front of the fieldbus module.
Connect the FE contacts via the FE rail.
FE contacts
Screw
(separate
FE connection)

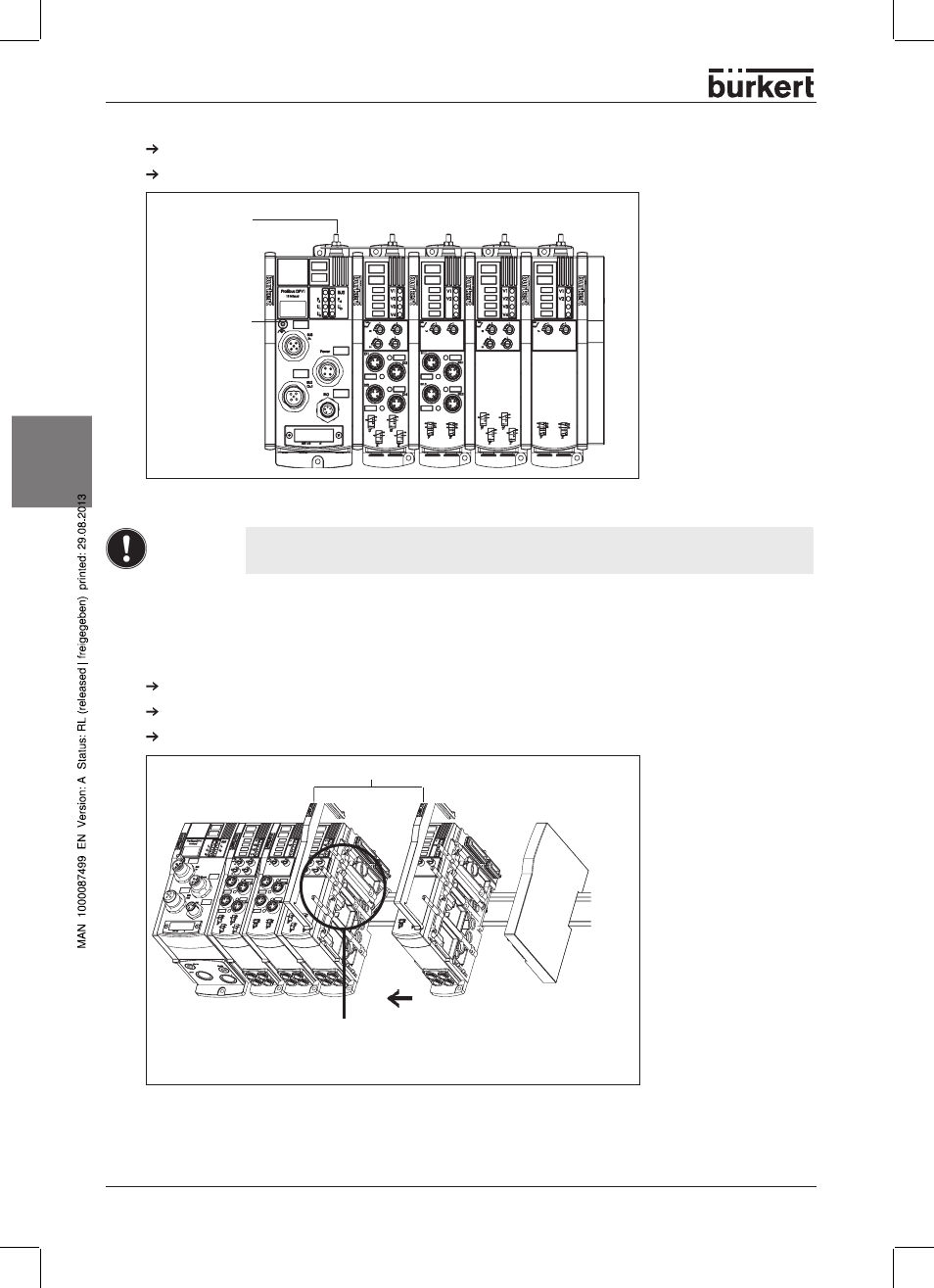

Illustration: FE connections / contacts of the FreeLINE system
NOTE!
Both the FE connection on the front of the module and the FE rail must be connected to
FE.
MOuNTING ON dIN RAIL
Install the DIN rail at its intended location (wall, machine, control cabinet, etc.).
Install the modules from left to right.
Remove the blue connection bracket.
Details, see Illustration: Locking when
mounting on DIN rail (2)
Connection bracket
Illustration: Locking when mounting on DIN rail (1)
