4.2 Interface
The Interface menu enables you to set the balance communication parameters for an RS 232 interface. The baud rate,
data bits, parity and stop bit can be set to match the communication requirements of external printers or computers.
Go Back
Help
Print Enter
Procedure

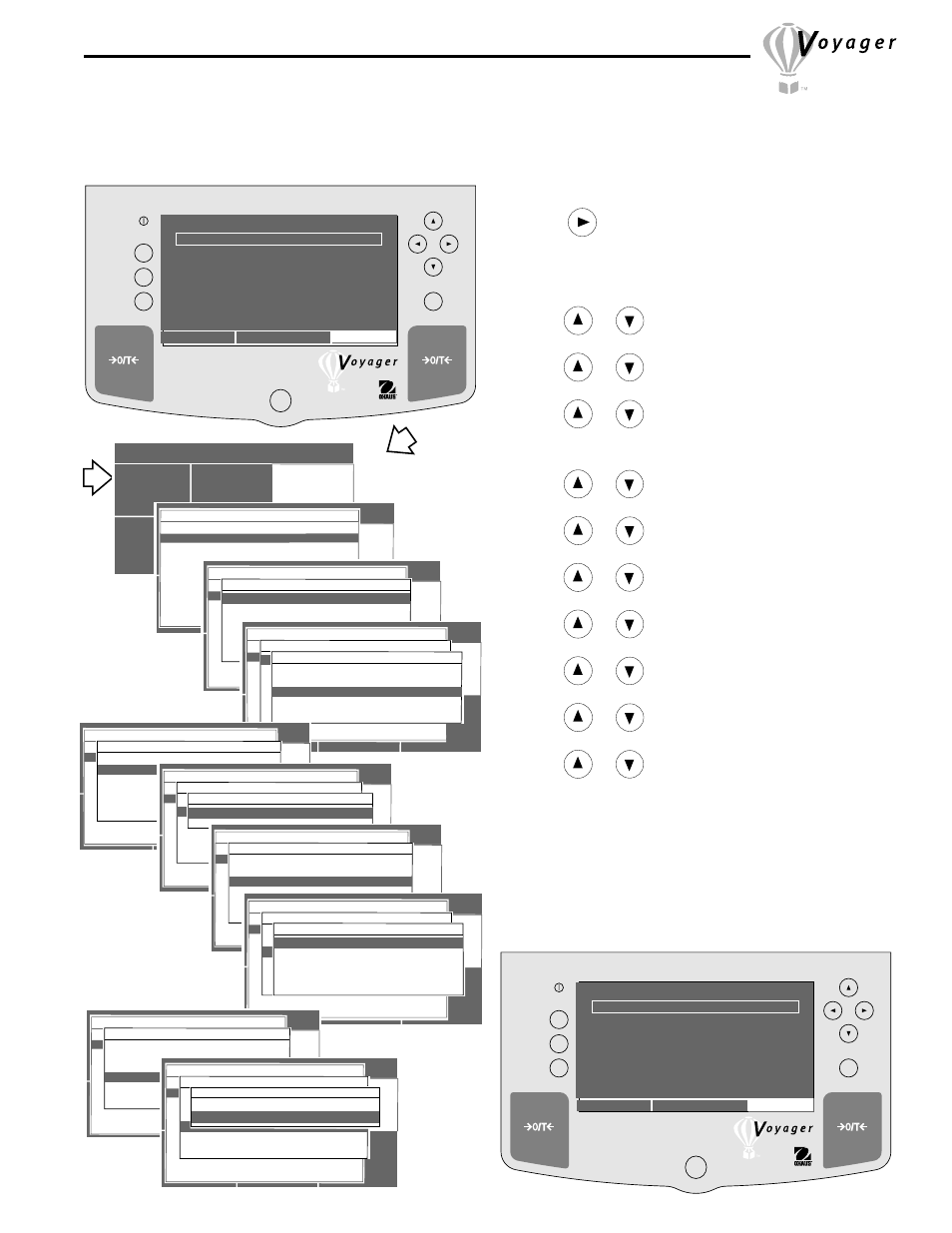

• Press arrow button to select MAIN MENU, press
Enter button.
• Using the arrow buttons, select SET BALANCE, press
Enter button.
• Press or arrow button and select INTER
FACE, press Enter button.
• Press or arrow button and select BAUD
RATE, press Enter button.
• Press or arrow button and select either
300, 1200, 2400, 4800, or 9600. ( 2400 is normal),
press Enter button.
• Press or arrow button and select DATA
BITS, press Enter button.
• Press or arrow button and select 7 or 8,
press Enter button.
• Press or arrow button and select PARITY,
press Enter button.
• Press or arrow button and select either
NONE. EVEN, ODD , 0 or 1, press Enter button.
• Press or arrow button and select STOP
BIT, press Enter button.
• Press or arrow button and select 1 or 2,
press Enter button.
• Press or arrow button and select SAVE and
EXIT, press Enter button.
