4

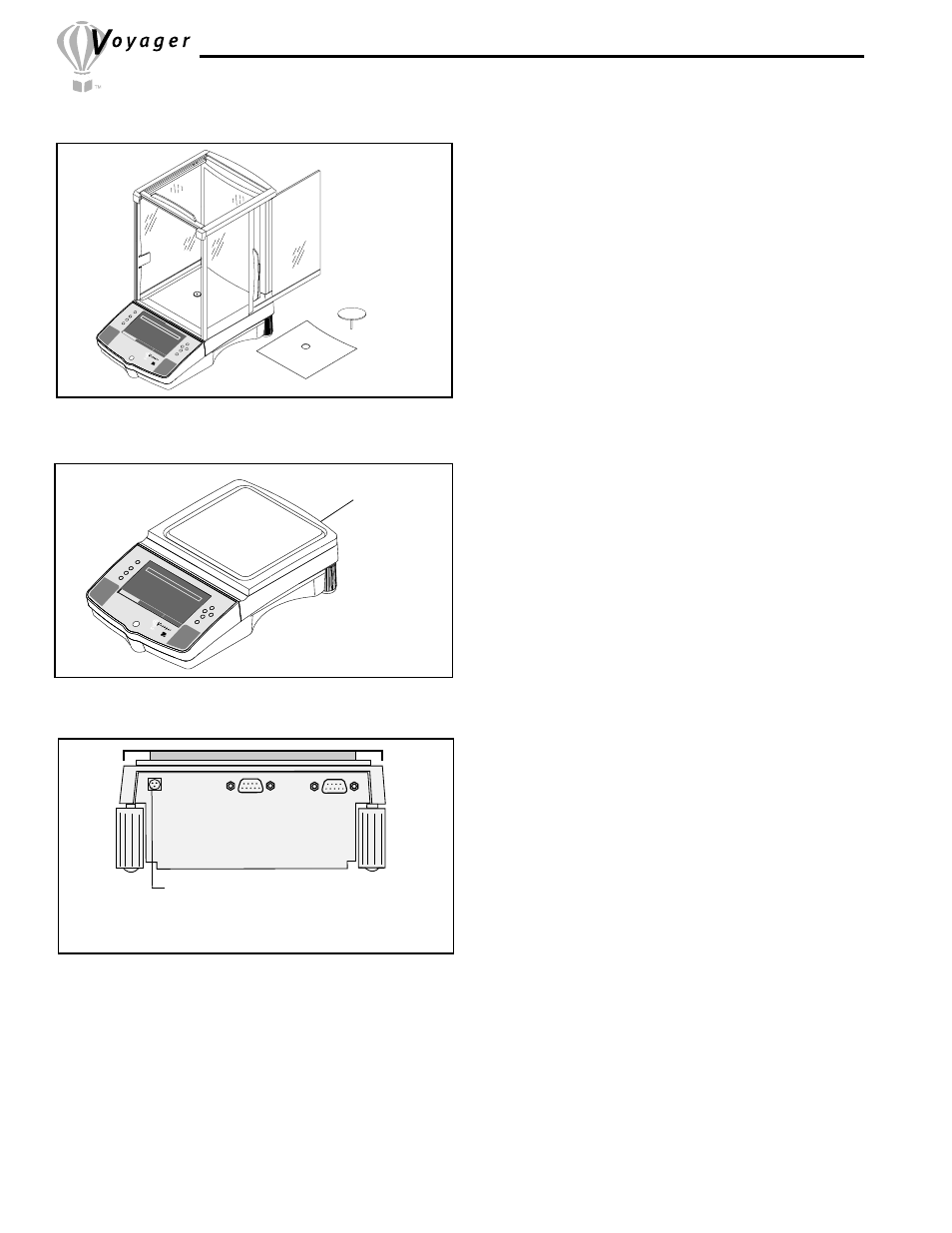

Balances in the range of 62g to 410g are shipped with
the pan and the protective cover plate not installed. On
balances equipped with a draft shield, slide open the side
door and place the cover plate into position. Then, insert
the pan into the center hole which is the measuring
transducer. Higher capacity balances with 6" or 8" pans
do not have a cover plate.
Wind Shield
On 610g to 4100g balances with 0.01g resolution, a wind
shield is required to reduce the possibility of air currents
from disturbing the pan. When the wind shield is in
place, air currents are deflected up over the pan.
Make sure the wind shield is firmly snapped into place.
2.5 Installing Wind Shield
2.4 Installing Cover Plate and Pan
2.6 Connecting Power
Connect the AC Adapter supplied to the three pin con-
nector located at the rear of the balance.
The balance is now ready for operation.
Rear of Balance
AC Adapter Connection
>O/T<
>O/T<
0.00
WEIGHT
0%
100%
CONTRAST
GRAMS
STABLE
MOVE HIGHLIGHT
CONTRAST
MAIN MENU
Enter
Go Back
Heip
Print
OHAUS ®
>O/T<
>O/T<
OHAUS ®
0.000
WEIGHT
0%
100%
CONTRAST
GRAMS
STABLE
MOVE HIGHLIGHT
MAIN MENU
Enter
Go Back
Help Print
Cover Plate
Pan
