Getting to know the MAX 200 21

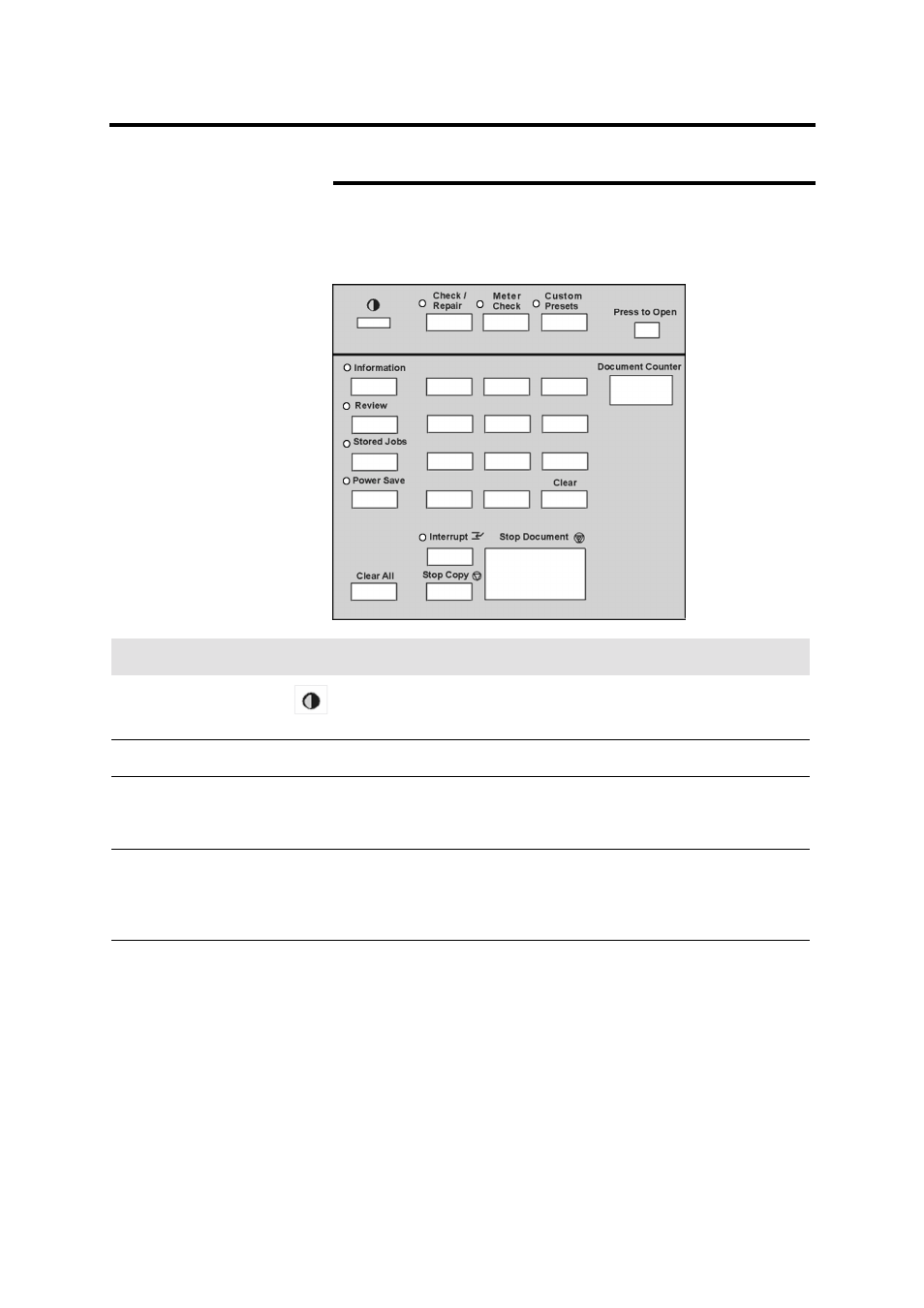

Scanner control panel
Upper components
The scanner control panel is divided into two sections; the upper
and lower sections. The upper section is located under the scanner
control panel cover. To access the upper section, press the press to
open latch and release.
Name Function
Brightness control dial The brightness control dial adjusts the brightness of the touch
screen.
Check/repair button The check/repair button is for the service representative.
Meter check button The meter check button provides access to the billing meter. The
meter reads the printer usage. For detailed information on how to
use the meter check button, refer to page 24.
Custom presets button The custom presets button provides access to the system, copy,
and storage/disk manager defaults. You can change the defaults to
meet your specific needs. For detailed information about the custom
presets button, refer to page 24.
Press to open latch Press and release the press to open latch, to open the top cover of
the scanner control panel.
1 2 3
4 5 6
7 9 8
. 0 C
