16 Getting to know the MAX 200
Scanner (continued)

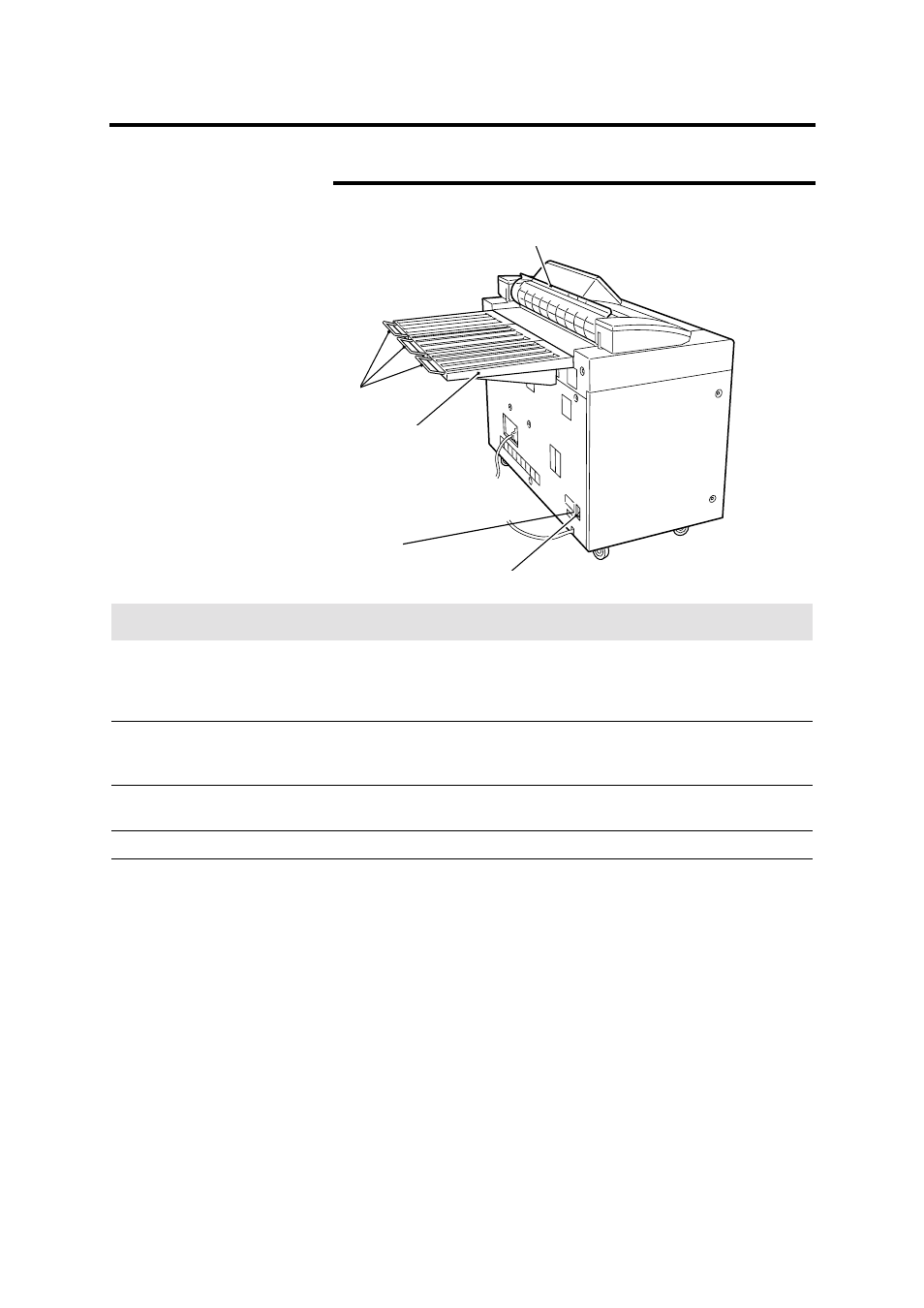

Rear
No. Name Function
9 Document exit guide The document exit guide is positioned manually. If the guide is
positioned up, documents are fed to the document output tray. If the
guide is positioned down, documents are fed to the front of the
scanner.
10 Document support
guides If documents are longer than 36 inches, pull out the document
support guides. The guide keeps long documents from falling off the
document output tray.
11 Document output tray The document output tray receives documents when the document
exit guide is in the up position.
12 Scanner circuit breaker The circuit breaker switches the main power to the scanner on or off.
13 Ground fault protector If the scanner detects an electrical problem, the ground fault
protector switches the scanner power off.
