C h a p t e r 5

D A 7 U s e r s ’ G u i d e

1 7

Channels,

Library

, & Meters

5-4 METER Group Windows

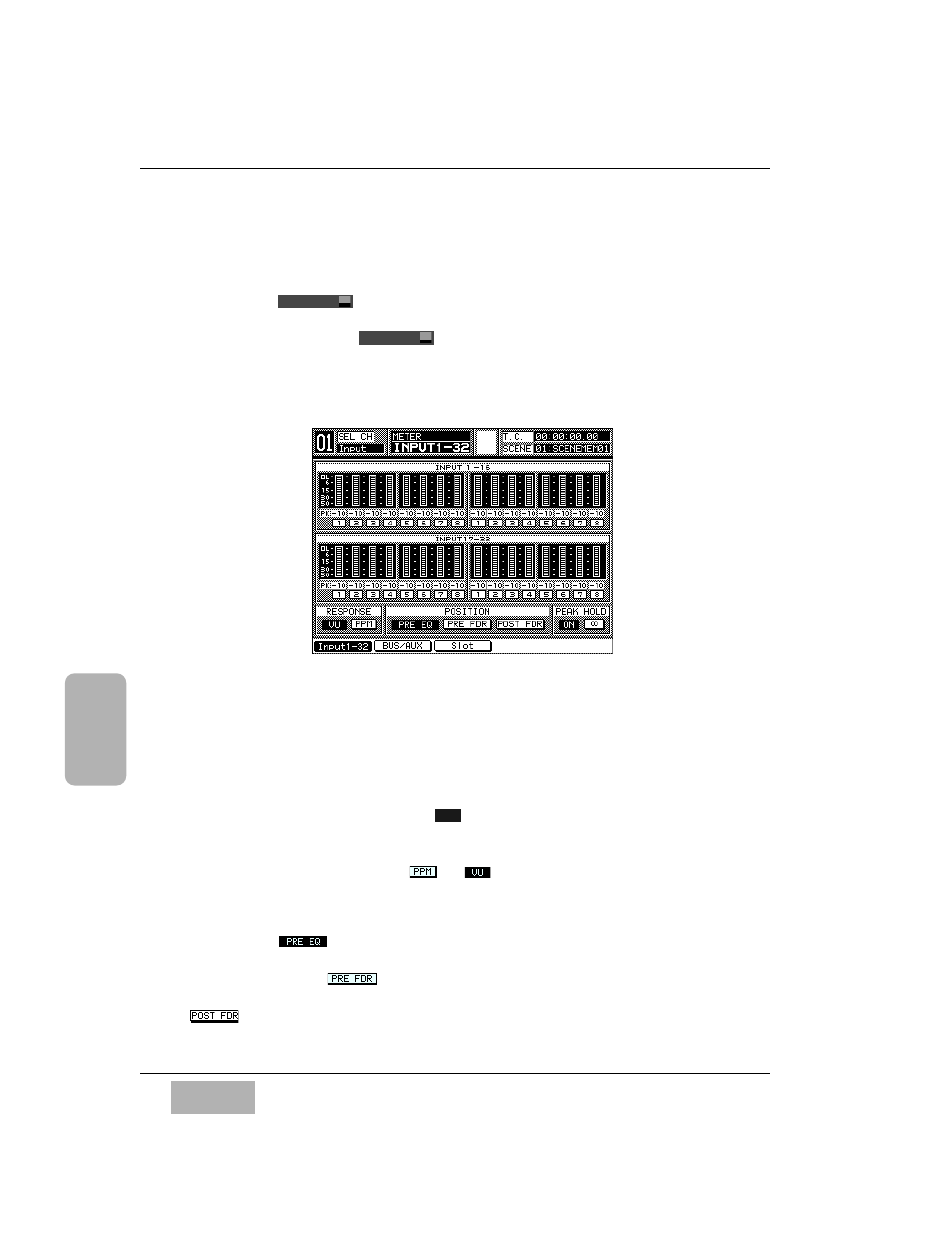

[INPUT 1-32] Meter Window

Pressing the

button on the Top Panel displays the last window

used from the

[METER] group, ([INPUT 1-32], [BUS/AUX], or [SLOT]).

Repeated presses of the

button will display the windows in this

order.

This window shows the meters for the 32 input channels and allows for level
adjustments.

[INPUT 1-16], [INPUT 17-32] Areas

These areas show the signal input levels of all 32 channels simultaneously.

[PK Lvl] Area

This data field, below the individual channel level meters, displays a numeric
peak value when

[PEAK HOLD] is .

[RESPONSE] Area

Select meter response of either

. See

Glossary for additional

information.

[POSITION] Area

Cursor to the

button, and press the

ENTER button to meter the point

immediately after analog-to-digital conversion before processing an input
signal. Cursor to the

button, and press the

ENTER button to meter

the point immediately before the channel

ON LED button. Cursor to the

button, and press the

ENTER button to meter the point after the

Channel Fader.

METER

INPUT 1-32 Meter Window
