Pressing the

METER button will display the [METER] window group on the

LCD screen in the

Display Bridge. Pressing the METER button again will

cycle the three window selections:

[METER INPUTS 1-32], [BUS/AUX],

[SLOT].

Pressing the

CHANNEL button will display the [CHANNEL] window group

on the LCD screen in the

Display Bridge. The window displayed will show

the current mixer strip selected.

See Chapter 5, Channel, Library, and Meter Windows for additional
information.

EQUALIZER Section

There are three parameter knobs and four frequency range LED buttons in
the

EQUALIZER section, which are used to change the EQ settings of the

currently selected channel. The

EQ ON LED button toggles the EQUALIZER

on (green) and off. When the controls are active, adjustments can be made to
the currently selected channel.

The three knobs are labeled

Q (quality), FREQ (frequency), and GAIN

(gain). The additional labeling of

(left),

(surround left), and

(surround subwoofer) indicate the surround sound parameters that are
controlled by the knobs when the

[SURROUND] mixing area is activated.

Surround sound capabilities are discussed in Chapter 8.

The four frequency band LED buttons can be selected one at a time, and turn
on (orange) to show which band is operating. They are labeled

H (high), HM

(high-mid),

LM (low-mid), and L (low).

Pressing the

GAIN knob displays the [EQUALIZER] window on the LCD

screen. Once the

[EQUALIZER] is displayed in the LCD window, these

buttons perform other shortcut functions.

The

EQUALIZER section is detailed in Chapter 7.

SUB

S L

C h a p t e r 2

D A 7 U s e r s ’ G u i d e

DA7 T

our

EQUALIZER

FREQ

GAIN

SUB

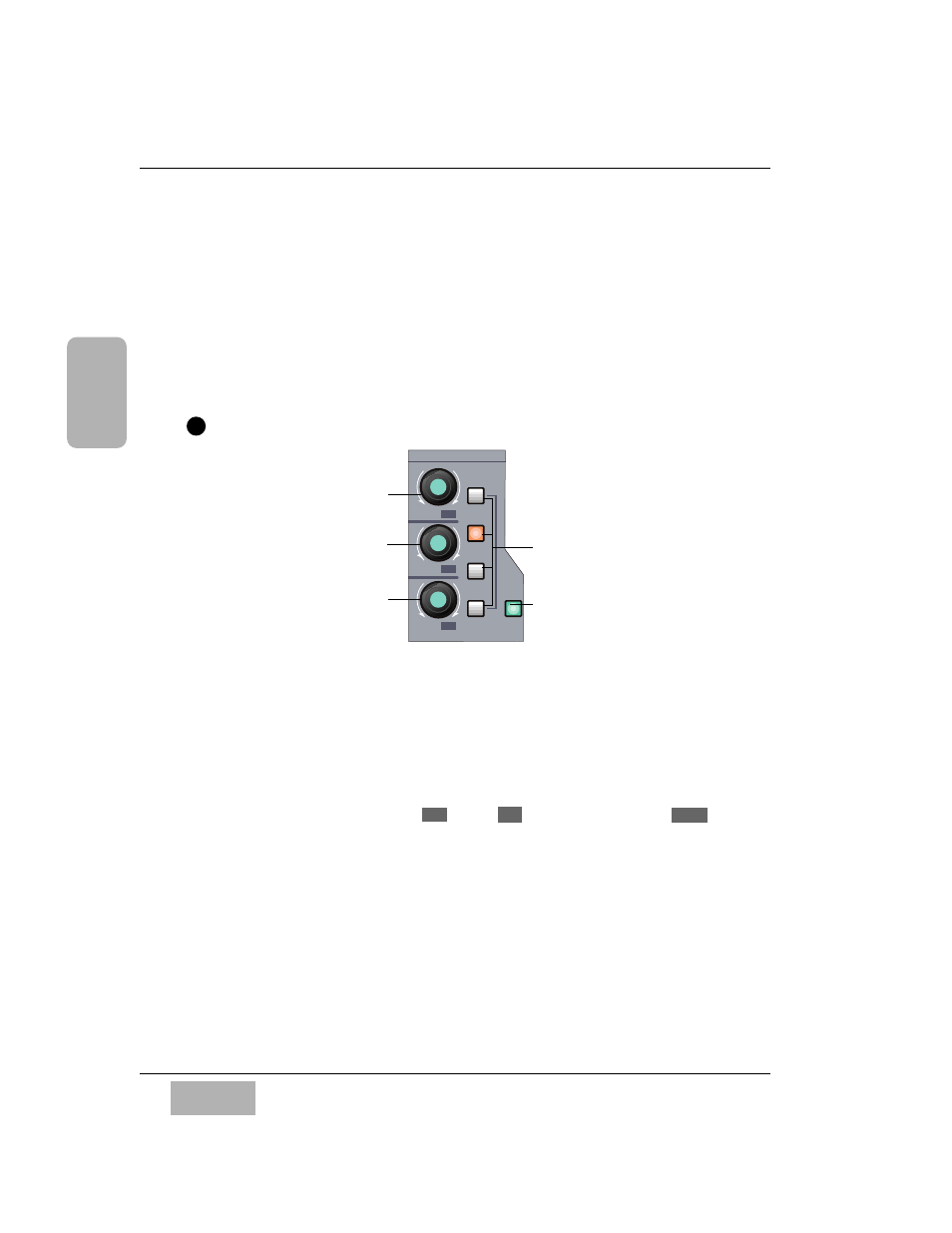

EQUALIZER Section

Q (quality) parameter knob or
left surround sound
attenuator

FREQ (frequency) parameter

knob or surround left

surround sound attenuator

GAIN parameter knob or
subwoofer surround sound
attenuator

Frequency band LED
buttons

EQ ON LED button
