A p p e n d i x E

D A 7 U s e r s ’ G u i d e

Cables &

Connections

TANDEM Option Card

One of the Panasonic Premium Cables, part

# DA/DB-DB (DB-25 to DB-25,

Length 1 meter) is recommended.

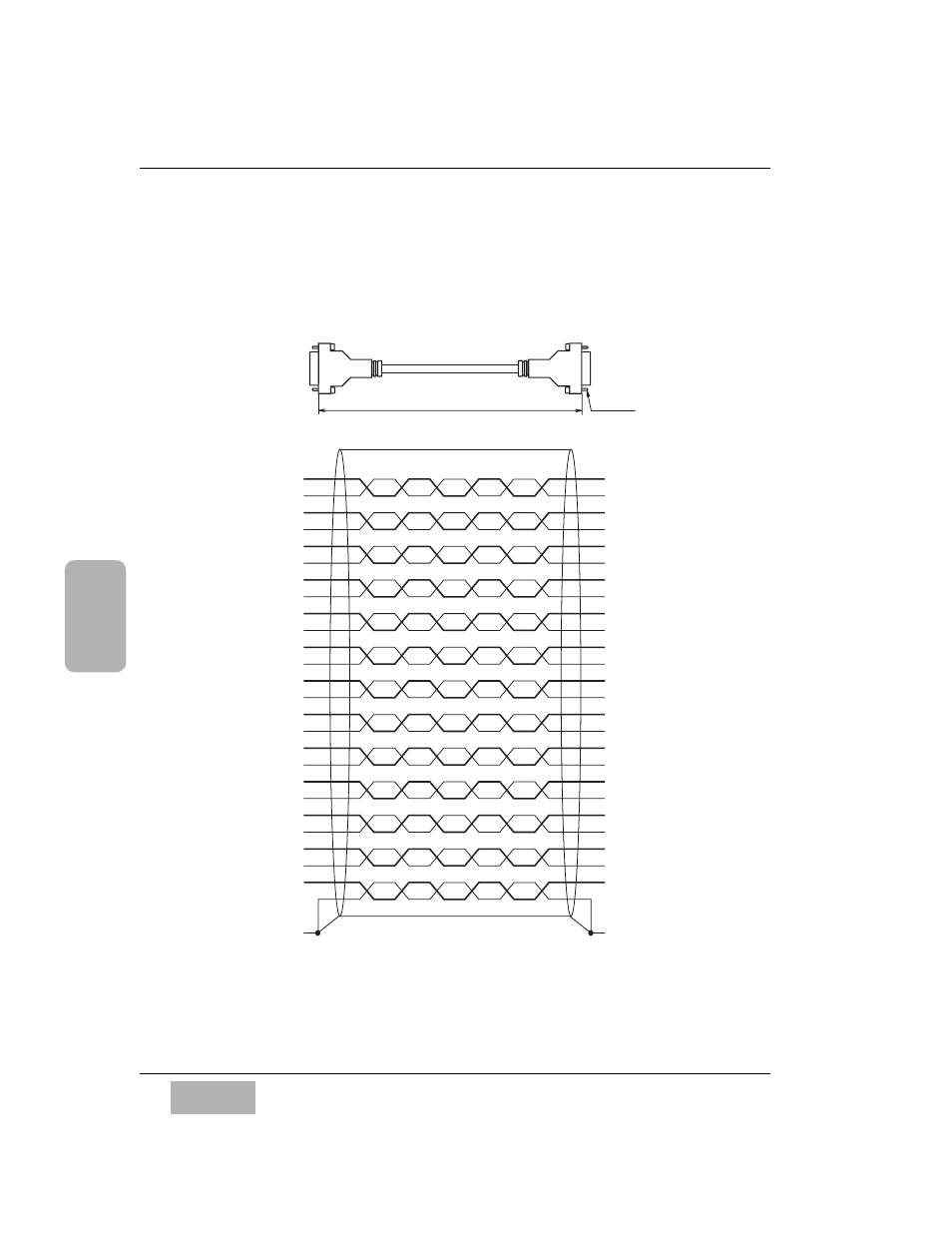

See drawings below when you build a customized cable.

Name Pin#

PWRFAILO 1

FG 2

PWRFAILI 14

FG 17

CKO - 3

CKO+ 15

256O - 4

256O+ 16

CASO3+ 5

CASO3 - 18

CASO2+ 6

CASO2 - 19

CASO1+ 7

CASO1 - 20

CKIN+ 8

CKIN - 21

256IN+ 9

256IN - 22

CASI3 - 11

CASI3+ 23

CASI2 - 12

CASI2+ 24

CASI1 - 13

CASI1+ 25

FG 10

Shell -

Pin# Name

14 PWRFAILI

2 FG

1 PWRFAILO

17 FG

21 CKIN -

8 CKIN+

22 256IN -

9 256IN+

23 CASI3+

11 CASI3 -

24 CASI2+

12 CASI2 -

25 CASI1+

13 CASI1 -

15 CKO+

3 CKO -

16 256O+

4 256O -

18 CASO3 -

5 CASO3+

19 CASO2 -

6 CASO2+

20 CASO1 -

7 CASO1+

10 FG

- Shell

TANDEM Cable

Shield

Abbreviation: I=Input, O=Output

UL2464, AWG#28, 13-Twisted Pair, Shielded

Shorter than 10 m

Fixing screw

M 2.6 mm

DB-25 (Male)
