C h a p t e r 2

D A 7 U s e r s ’ G u i d e

1 3

DA7 T

our

The

SOLO LED button toggles on (red) or off. When on, the selected bus

output will be routed to the

MONITOR A speakers and headphones,

overriding the previous input.

There are two bus numbers for each strip, indicating the

BUS ASSIGN

selections that can be controlled by the strip.

The

FLIP LED button flips the BUS Fader Strip from controlling one bus to

controlling the other bus for the strip. The LED color (red or green) indicates
the current bus selection.

The

SELECT LED button, when on (orange), identifies the bus strip as the

current bus strip selected. Only one

BUS Fader Strip can be selected at a

time unless they are paired for

LINK or STEREO operation.

The

ON LED button toggles on (red) and off. When on, the bus output is

active.

The

AUX/BUS indication at the bottom of the BUS Fader Strip indicates the

strip function when the

AUX/BUS Fader Layer control is selected.

See Chapter 6, Fader Layers and Channel Strips for additional information.

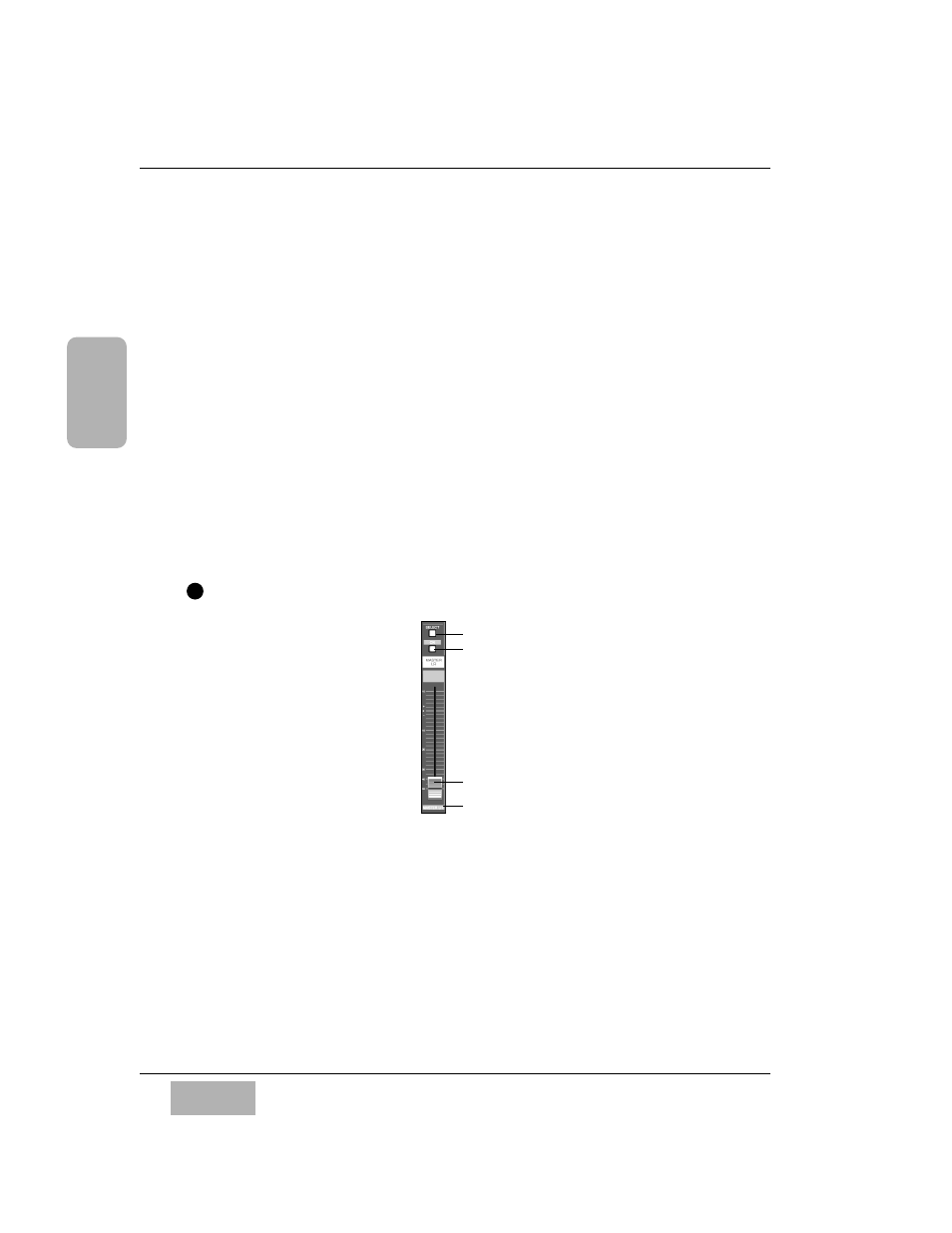

MASTER L/R Fader Strip

The

MASTER L/R Fader Strip controls the DA7 master L/R output.

The

SELECT LED button, when on (orange), identifies the strip as the

current fader strip selection.

The

ON LED button toggles on (red) and off. When on, the master output is

active.

See Chapter 6, Fader Layers and Channel Strips for additional
information.

Fader

AUX/BUS Layer function

SELECT LED button

ON LED button

MASTER L/R Fader Strip
