The buttons of

[ON], [SELECT], [SOLO] and [FADER] that are placed

in the

INPUT 1-16, 17-32 and the AUX Return channels can be

operated from the

TopPanel of both the slave and master DA7. For the

output channels of

AUX Send, BUS and the MASTER L/R, these

buttons and faders are inoperative from the

TopPanel of the slave DA7.

TANDEM connection settings

Settings are required in the

[MIDI>SETUP] window and the [D-I/O>TO

SLOT] window for both the master and the slave DA7

Display the

[MIDI>SETUP] window for both the master and the slave

DA7.

Select the

TO PC button in the PORT SELECT area of the

[MIDI>SETUP] window for both the master and the slave when using
the

TO PC port. For MIDI this selection is not required.

Set the same

BAUD RATE in the BAUD RATE area for both the master

and the slave when using the

TO PC port. For MIDI this selection is not

required. For ToPC operation, set

BAUD RATE to 125 k.

Select the same MIDI channel for

Gen. Rx and Gen. Tx in the MIDI

SETUP area of the [MIDI>SETUP] window. Set the same channel for
both the master and the slave.

Display the

TANDEM mode of the [D-I/O>TO SLOT] window for both

the master and the slave DA7.

Set the

TANDEM area to ON (inversed video) in the SLOT 3 section.

Set the

OFFSET DELAY TIME area to AUTO.

Select

TO PC or MIDI in the PORT SELECT area.

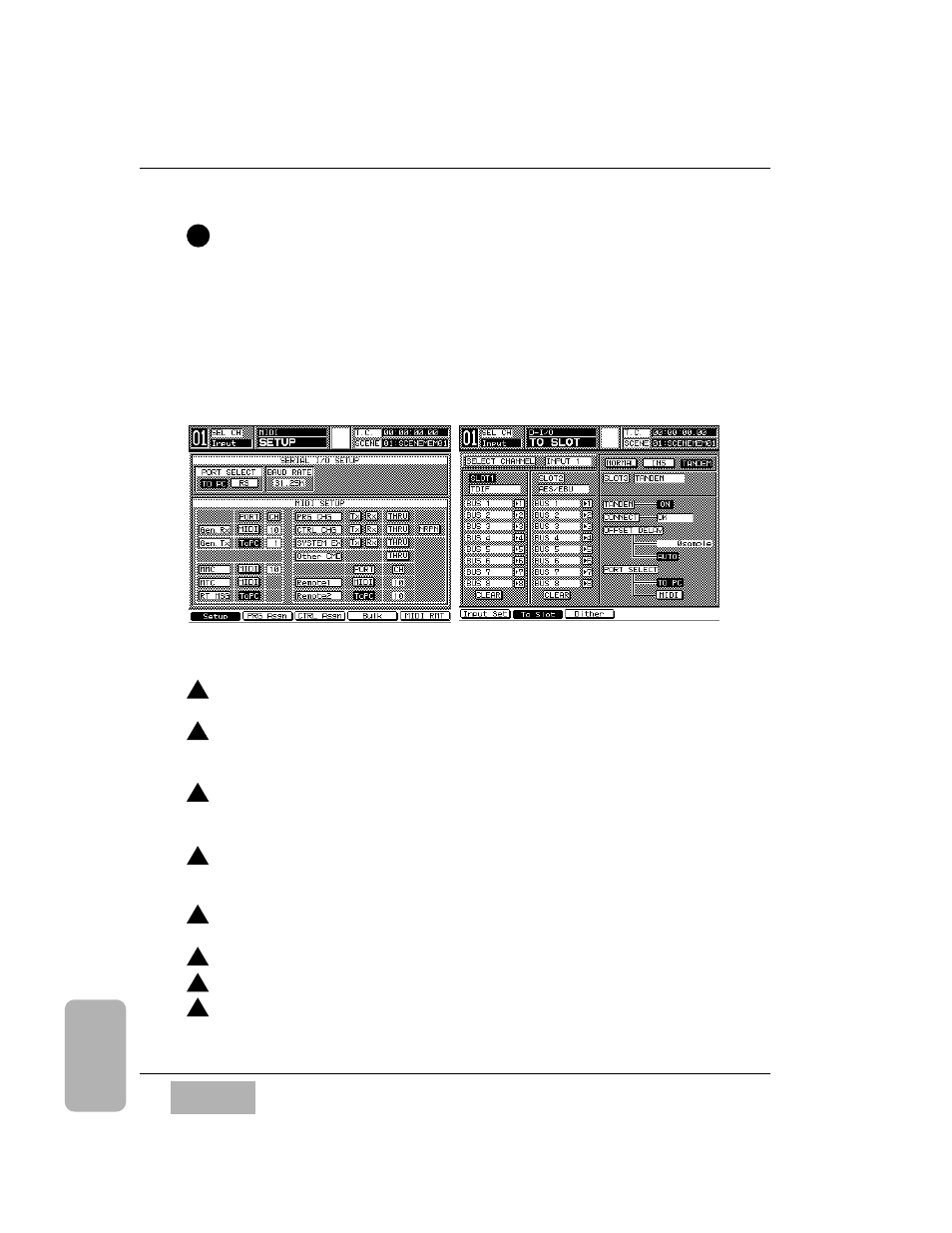

MIDI Setup Window

TO SLOT Window, Tandem Mode
