DA7 T
our
PAN/ASSIGN/ , BUS ASSIGN Section
Pan, bus assignment, and surround sound parameters for the selected
channel is set within this area. The pan control is always active for the
L/R
bus, so you do not need to activate the ON button to pan across the Master
L/R out. However, if you wish to pan between odd/even buses, you must
push the
ON button. Assignment to the DIRECT output is not affected by the
pan control.
The additional labeling of (center) indicates the surround sound
parameter that is controlled by the knob when the [SURROUND] mixing
area is activated.
The L/R, the DIRECT, and the BUS ASSIGN LED buttons toggle on (green)
and off. In addition to the eight bus selections, labeled 1 - 8, selections for
L/R (master L/R) output and DIRECT output are available. The DIRECT
output works in conjunction with the option cards installed in the DA7 Rear
Panel, routing signals directly to the cards.
The DIRECT output is detailed in Chapter 12, D-I/O.
Pressing the PAN knob displays the [SURROUND] window on the LCD
screen.
The PAN/ASSIGN , BUS ASSIGN section of the Top Panel is
detailed in Chapter 8.
C
5

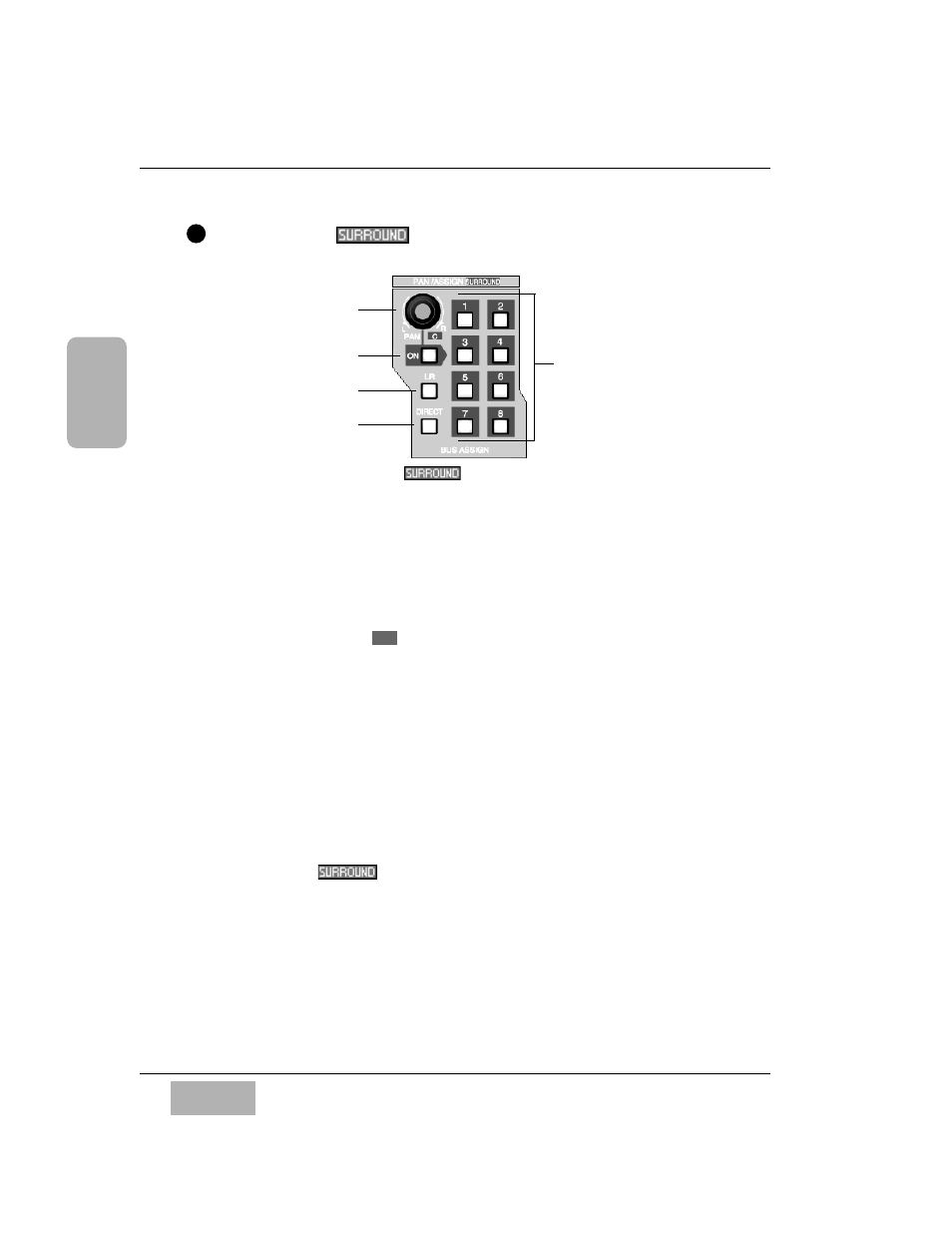

PAN/ASSIGN/ , BUS ASSIGN Section
PAN parameter knob or
center surround sound
attenuator
PAN ON LED button
MASTER L/R LED button
DIRECT LED button
BUS ASSIGN LED
buttons
