C h a p t e r 1 6

D A 7 U s e r s ’ G u i d e

Utility

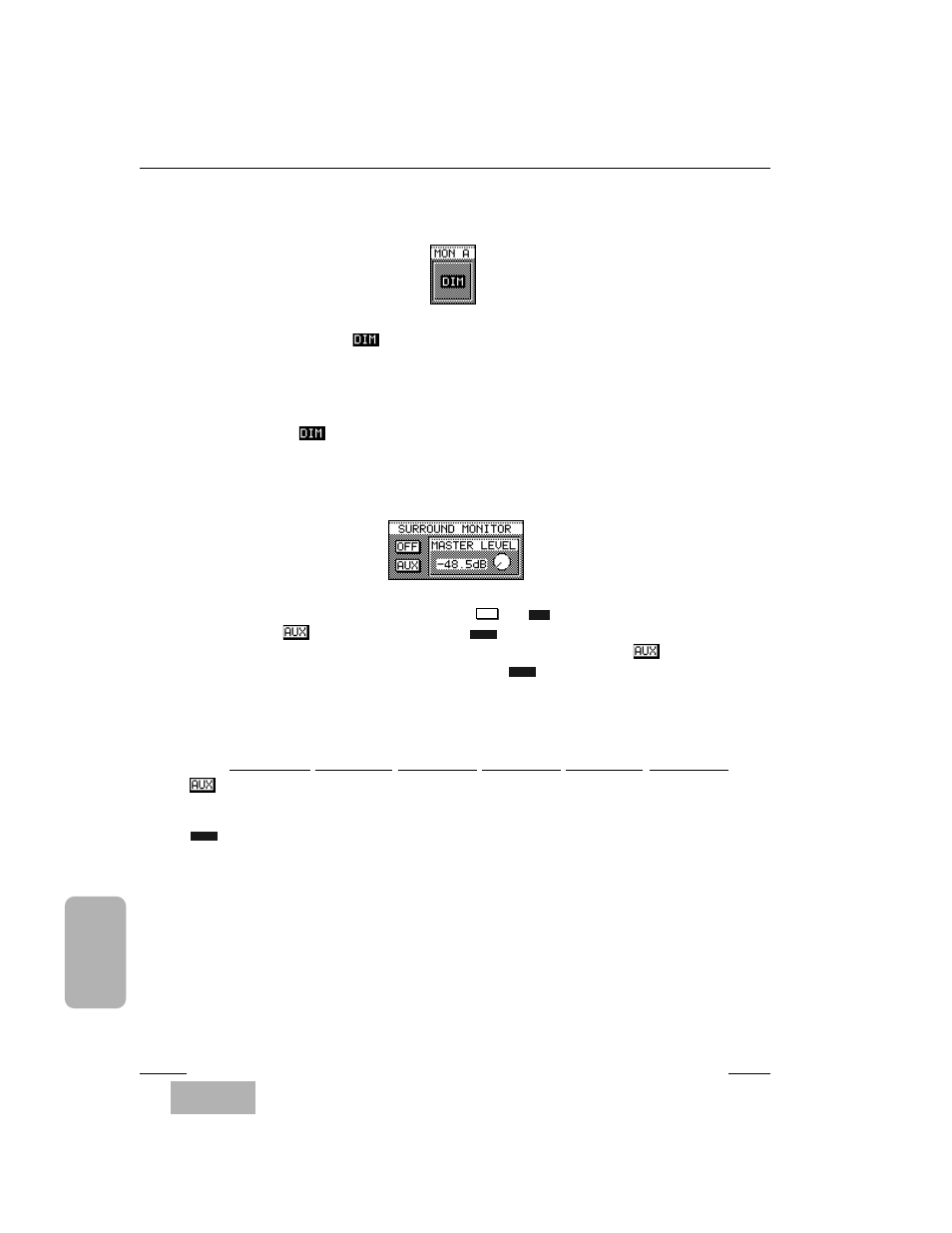

[MON A] Area

Engaging the

[MON A]

button lowers the volume of the

MONITOR A

system by 20dB, regardless of Talk Back operations. To toggle the

[MON A]

DIM button while the button is not displayed on the LCD, from the
TopPanel press and hold the MMC/CURSOR button, at the same time press
the

SOLO/MONITOR button.

If the

[MON A]

button is off, the monitor volume will be lowered by

20dB whenever the

TALKBACK button on the Top Panel is on. The

monitor volume will be restored when the

TALKBACK button is turned off.

[SURROUND MONITOR] Area

The surround monitor feature is toggled

in this area of the

window. The

button toggles with a

button, which determines the

assignment for the surround bus monitor outputs. Cursor to the

button,

and press the

ENTER button to toggle to the

button. The surround bus

assignments are reflected in the table below, as determined by the current
selection.

The outgoing

[MASTER LEVEL] of the surround sound feature is also set in

this area of the window. The soft knob controls the level for the surround
sound monitoring system. The knob has a range of -

∞

to +10dB. Cursor to

the

[MASTER LEVEL] soft knob, and rotate the JogDial to raise or lower

the surround monitor output level. To control the

[MASTER LEVEL] knob

while that soft knob is not displayed on the

LCD, from the TopPanel, rotate

the

Level ON/OFF knob in the AUX section, when the individual channel

surround screen is displayed.

See Chapter 8, Pan/Assign, Surround, Bus Assign for further information.

MON

OFF

SURROUND MONITOR Area

MON

Surround

bus 1 (L)

Mon A (L)

Surround

bus 2 (R)

Mon A (R)

Surround

bus 3 (C)

Aux send 3

Mon B (L)

Surround

bus 4 (SW)

Aux send 4

Mon B (R)

Surround

bus 5 (SL)

Aux send 5

Master L

Surround

bus 6 (SR)

Aux send 6

Master R

MON A Area
