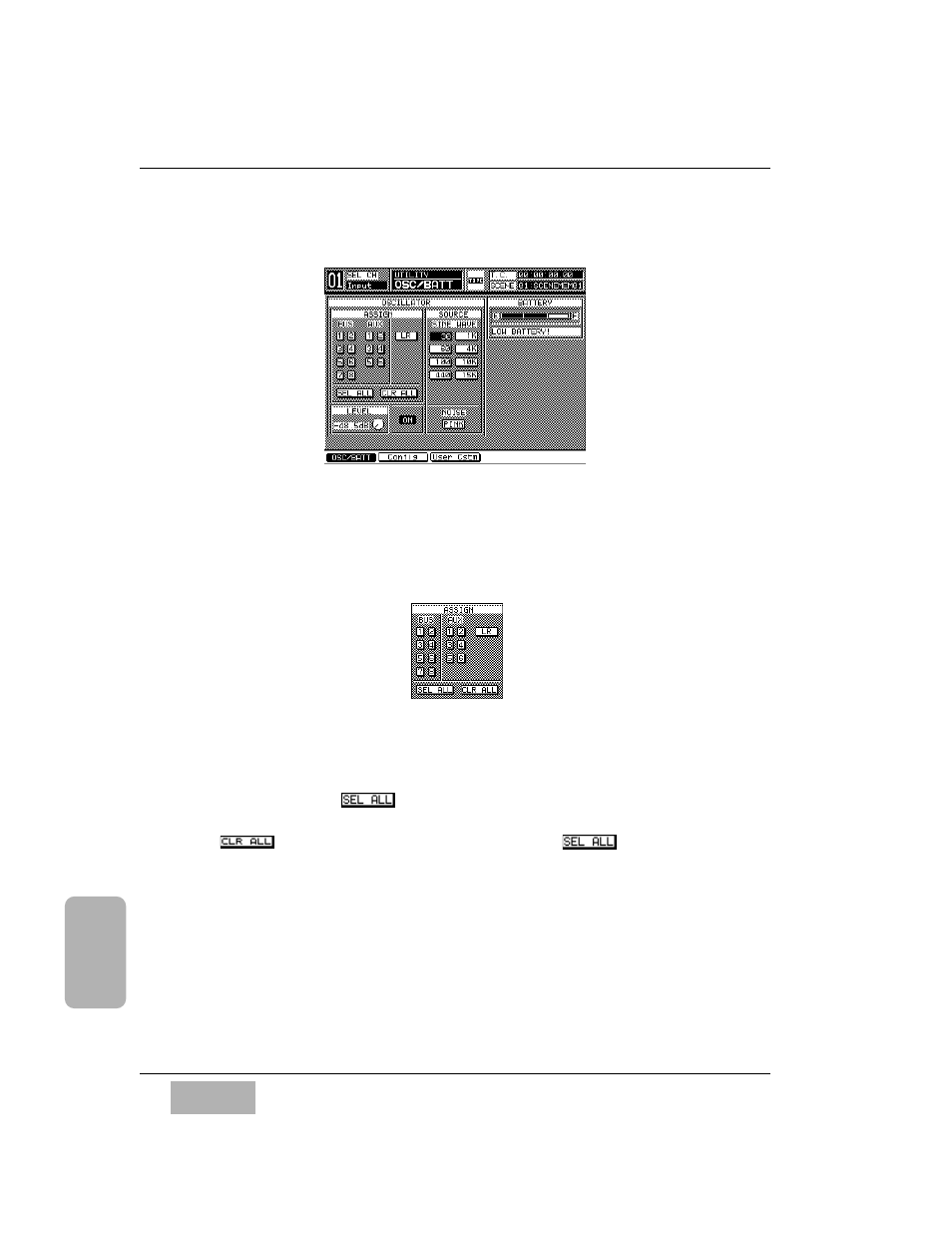

16-2 Utility, Oscillator/Battery (OSC/BATT) Window

There is an on board oscillator in the DA7. A reference

[SINE WAVE] or

[NOISE] generator can be assigned to the BUS, AUX, and L/R outputs of the
mixer.

[ASSIGN] Area

The Oscillator can be assigned to any one or all of the

[BUS 1-8], [AUX 1-6],

and

[L/R] outputs. Cursor to the output selection button, and press the

ENTER button. The selected button will appear as inverse video.

When you enable the

button, it will appear as inverse video and

apply the Oscillator to all of the

BUS, AUX, and L/R outputs.

The

button performs the inverse function of

. When it is

selected, the Oscillator is no longer assigned to any of the outputs.

C h a p t e r 1 6

D A 7 U s e r s ’ G u i d e

Utility

ASSIGN Area

OSC/BATT Window
