Display Bridge
The Display Bridge contains the information for the current status of the
DA7 and the LCD screen. The various windows for the functions and features
of the mixer are displayed on the LCD screen.
BUS Fader Strip
There are four BUS Fader Strips on the DA7. In conjunction with the
Fader Layer controls, each strip directly controls the BUS outputs, or the
AUX/BUS functions which are indicated on the bottom of the strip, or a user
CUSTOM/MIDI function.
C h a p t e r 2
D A 7 U s e r s ’ G u i d e 2 - 1 2
2
DA7 T
our
Fader
AUX/BUS Layer function
SOLO LED button
FLIP LED button
SELECT LED button
ON LED button
Bus Assign
numbers
8
9

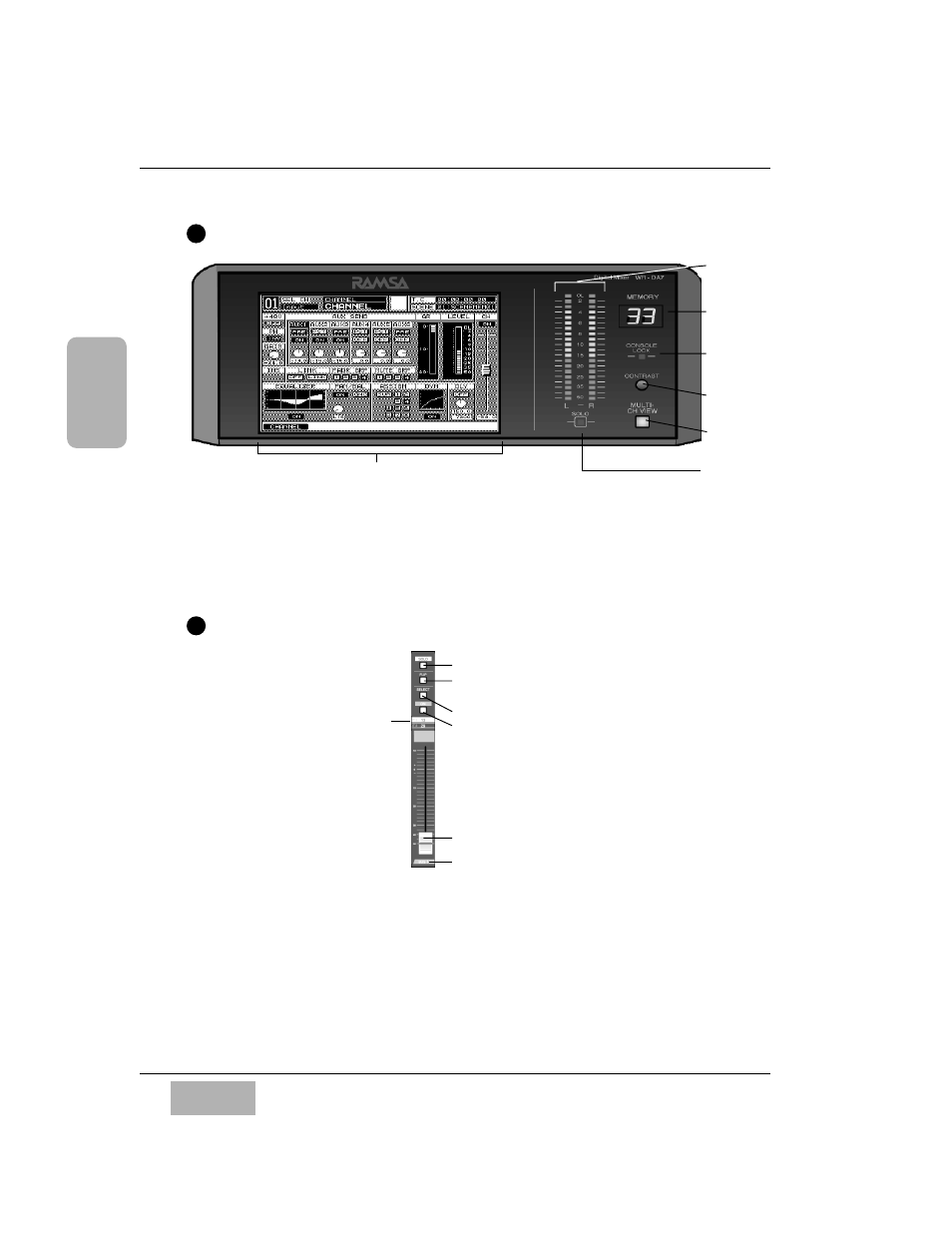

BUS Fader Strip
LCD screen
L/R Meter display
MEMORY
numeric readout
CONSOLE LOCK
LED status
indicator
LCD CONTRAST
control knob
MULTI-CH VIEW
LED button
SOLO LED status
indicator
Display Bridge Section
