Equalizer

7-2 EQUALIZER Section

The primary settings for the equalizer can be accessed on the Top Panel
while the LCD screen continues to display the

[CHANNEL] window.

Although this

[CHANNEL] window functionality is convenient when you are

making general equalizer adjustments, to aid you in understanding the
following information, please follow these steps to access and activate the
controls in the

EQUALIZER section:

Press the

knob in the

EQUALIZER section to display the

[EQUALIZER] window. Or,

cursor to the

[EQUALIZER] area in the

[CHANNEL] window, and press the ENTER button to display the
[EQUALIZER] window. Or, when the [AUTO DISP CHANGE] selection
in the

[UTILITY>CONFIG] window is

, press an LED button or adjust

a knob in the

EQUALIZER section to automatically display the

[EQUALIZER] window.

Press a

SELECT button to select the channel you want to adjust.

Turn the equalizer on by pressing the

EQ ON LED button on the Top

Panel, or cursor to the

[EQ] area

button, and press the

ENTER

button.

Select a band to adjust by pressing one of the frequency band LED
buttons,

H, HM, LM, or L.

Adjust EQ parameters by turning the

Q, FREQ, and GAIN knobs, or

cursor to a soft knob, and adjust with the

JogDial. The EQ characteristics

are displayed on the graph in the

[EQUALIZER] window, and are also

displayed in the

[EQUALIZER] area of the [CHANNEL] window.

OFF

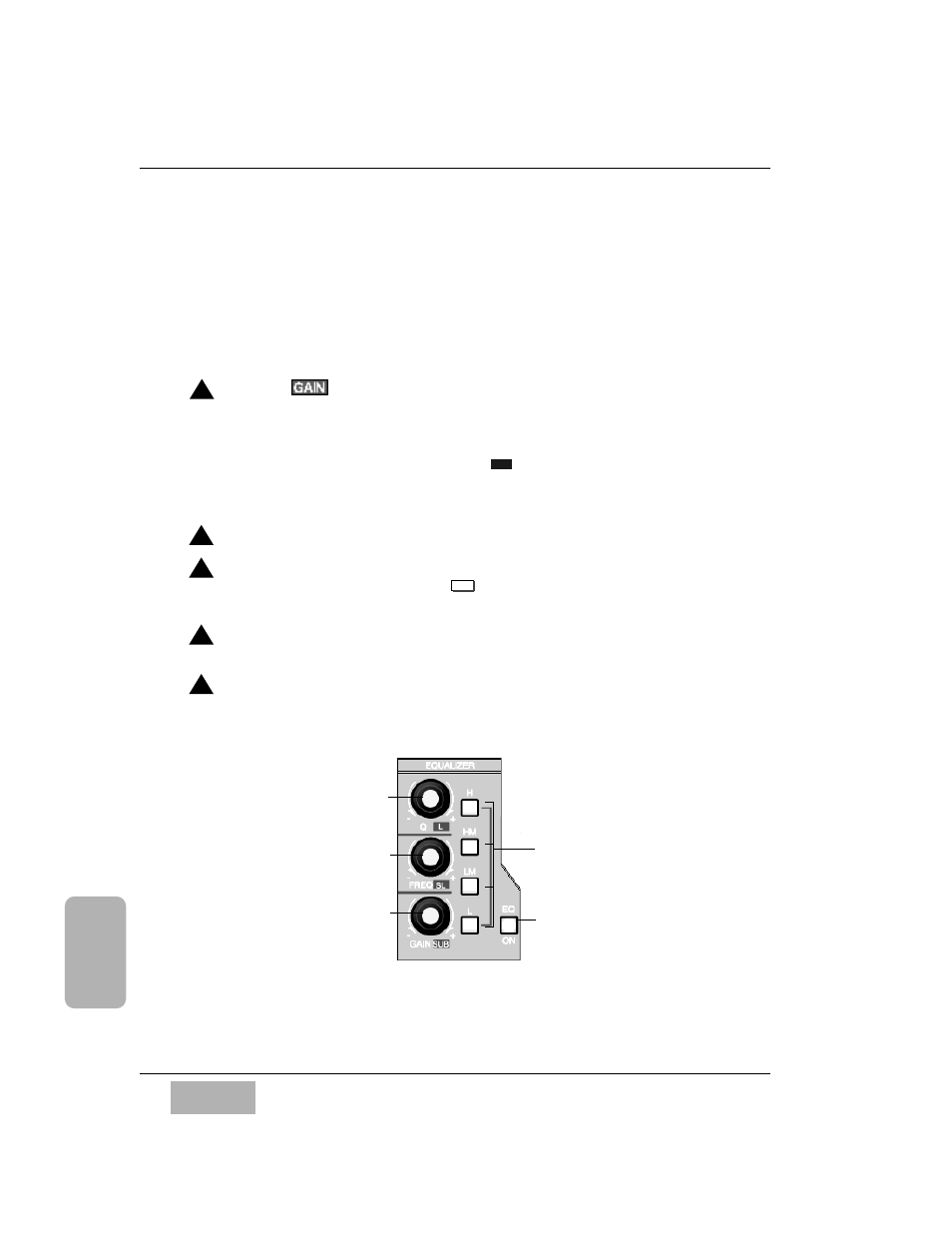

EQUALIZER Section

Q (quality) knob/Left
surround parameter

FREQ (frequency) knob/

Surround sound rear left

parameter

GAIN knob/ Surround
sound subwoofer
parameter

Frequency range LED
buttons

EQ ON LED button
