HI-3010 Filler/Dispenser/IBC 40
Service Manual
DEFAULT: OFF
PARAMETER:AUTO ZERO TIME
RANGE: .01-9.99 SECONDS
DEFAULT: 1.00 SECOND
Step 1. Press the down button until the cursor is in front of
Zero Tolerance. (See Fig. 4-78)

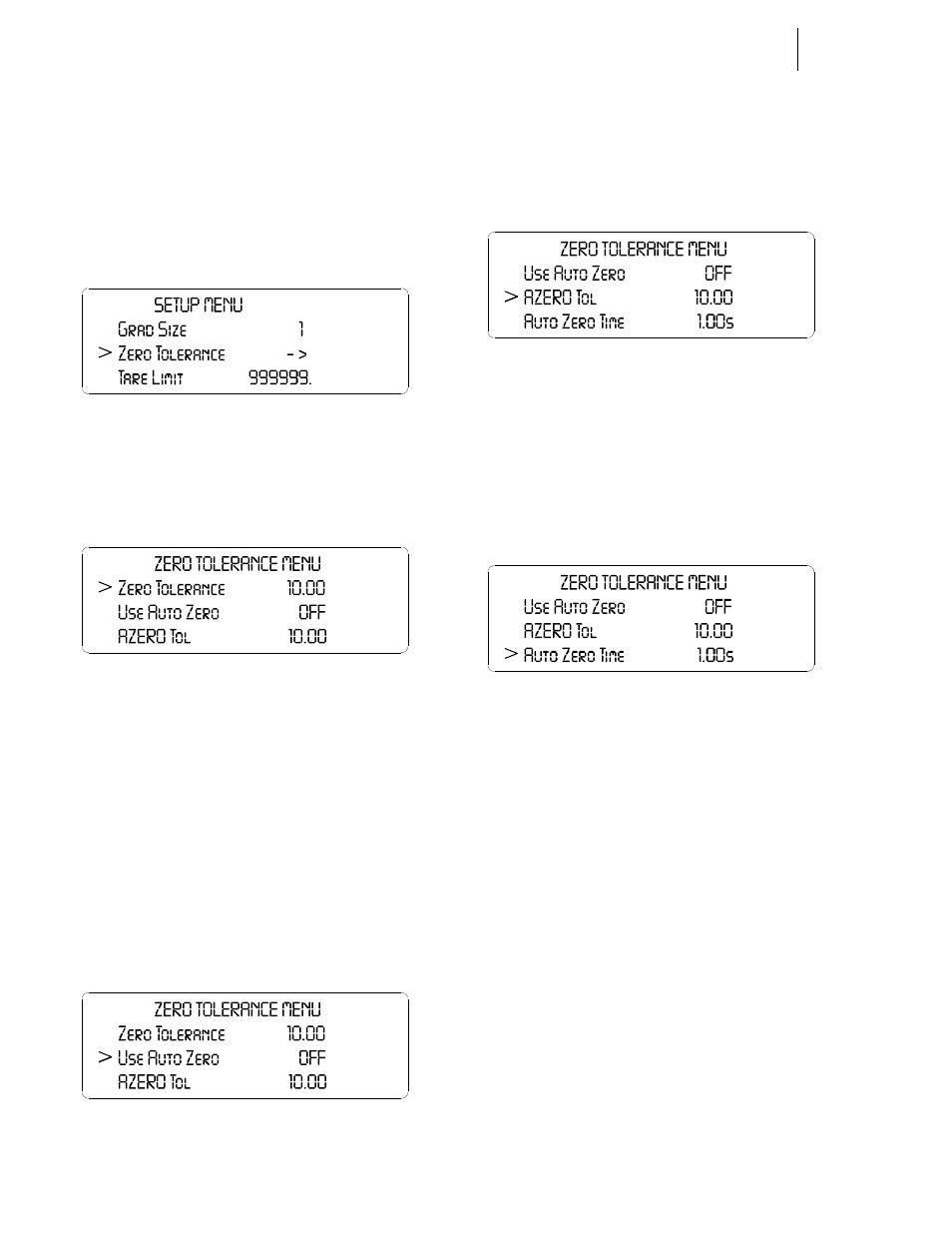

FIG. 4-78 SETUP MENU/ZERO TOLERANCE
Step 2. Press the Enter button. The Zero Tolerance Menu
appears with the cursor in front of Zero Tolerance.
(See Fig. 4-79)
FIG. 4-79 ZERO TOLERANCE MENU/ZERO
TOLERANCE
Step 3. Press the Clear button to clear the current value.
Step 4. Used the alphanumeric key pad to enter the new
Zero Tolerance value.
Step 5. Press the Enter button to set the entry.
NOTE: Zero Tolerance should be set if you are going to
use the Discharge Function. Setting the zero tol-
erance sets the parameter that indicates when a
vessel is empty after discharging a fill.
Step 6. Press the down arrow button until the cursor is in
front of Use Auto Zero. (See Fig. 4-80)
FIG. 4-80 ZERO TOLERANCE MENU/USE AUTO
ZERO
Step 7. Press the right or left arrow buttons to toggle
between OFF or ON.
Step 8. Press the Enter button to set the entry.
Step 9. Press the down arrow button until the cursor is in
front of AZERO Tol. (See Fig. 4-81)
FIG. 4-81 ZERO TOLERANCE MENU/AUTO ZERO
TOLERANCE
Step 10. Press the Clear button to clear the current value.
Step 11. Use the alphanumeric key pad to enter the new
Auto Zero Tolerance value.
Step 12. Press the Enter button to set the entry.
Step 13. Press the down arrow button until the cursor is in
front of Auto Zero Time. (See Fig. 4-82)
FIG. 4-82 ZERO TOLERANCE MENU/AUTO ZERO
TIME
Step 14. Press the Clear button to clear the current value.
Step 15. Use the alphanumeric key pad to enter the new
time.
Step 16. Press the Enter button to set the entry.
Step 17. Press the Exit button to return to the SETUP
MENU.
Tare Limit Parameter
About the Tare Limit Parameter
The Tare Limit Parameter limits the amount of automatic
tare. Tare is the artificial zeroing of the weight hopper so that
a new weight can be displayed. Also, the action of adjusting
out the know weight of the container from the total indicated
weight, so that the indicator reads net weight directly.
PARAMETER:TARE LIMIT
RANGE: .000001-999999
DEFAULT: 999999
Step 1. Press the down arrow until the cursor is in front of
Tare Limit. (See Fig. 4-83)
