25 CHAPTER 4
Configuration
Fill Cycles
About Fill/Dispense Cycles
Fill cycles are the number of fill/dispense cycles you are
going to use for this ingredient. In our example we are using
the ingredient Flour and we want “Flour” to cycle 15 times.

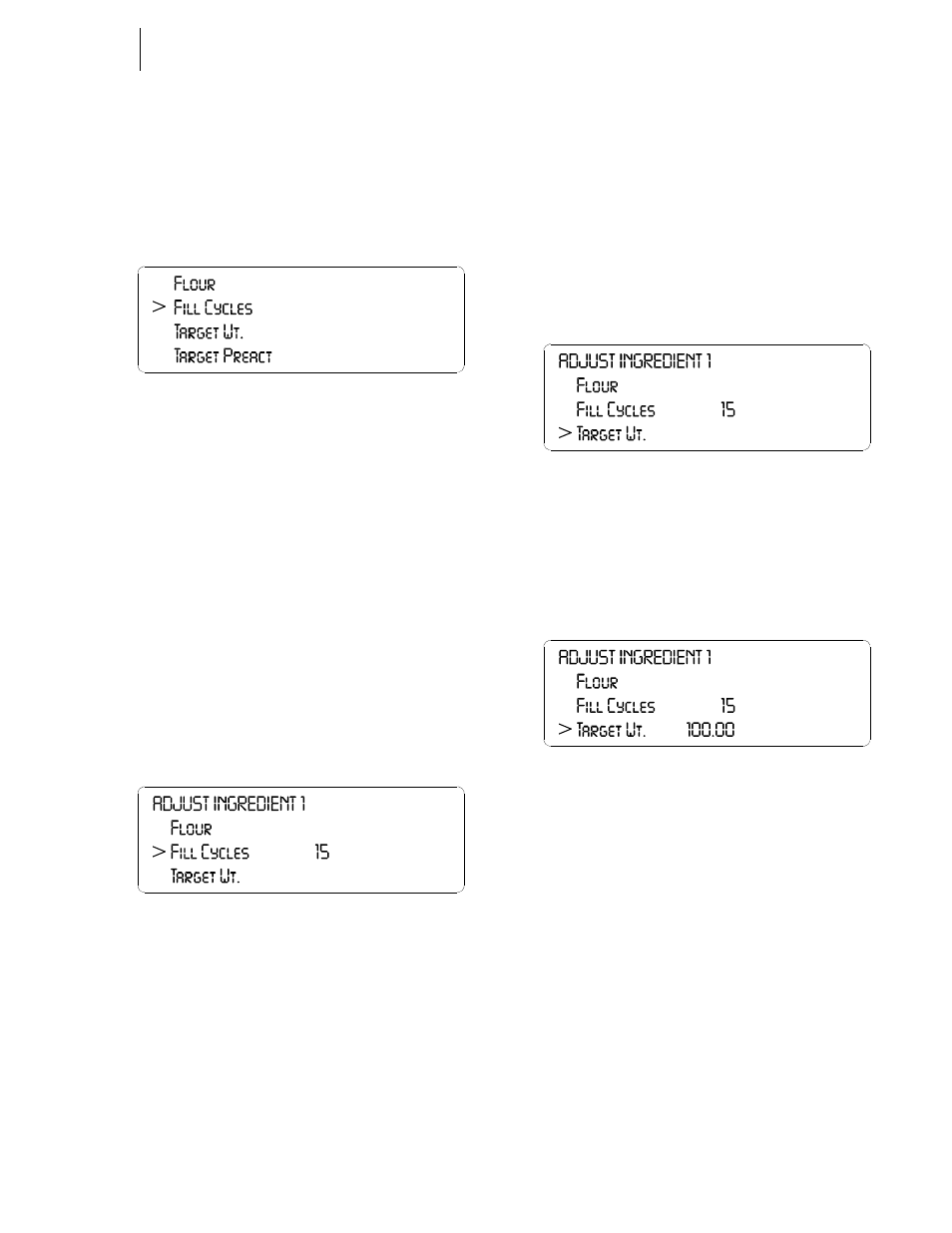

FIG. 4-14 INGREDIENT MENU/FILL/DISPENSE
CYCLES
PARAMETER:FILL/DISPENSE CYCLES
RANGE: 0 - 9,999
DEFAULT: 1
NOTE: For continuous fills/dispenses set the parameter
to 0.
Step 1. The cursor is in front of Fill Cycles. If you are
entering this parameter for the first time, use the
alphanumeric key pad and enter the number of
cycles you want for this ingredient. (See Fig. 4-15)
Step 2. If a value already exists, press the Clear button to
clear the previous entry.
Step 3. Use the alphanumeric key pad and enter the number
of cycles for this ingredient. In our example we set
15 cycles for the ingredient Flour. (See Fig. 4-15)
FIG. 4-15 FILL/DISPENSE/CYCLES PARAMETER
Step 4. Press the Enter button. The cycles are set and the
cursor moves to Target Wt. (See Fig. 4-16)
Target Weight
About Target Weight
The Target Weight is the gain-in-weight (Fill) or loss-in-
weight value (Dispense) you want for this ingredient. If you
want one cycle to fill/dispense 100 lbs of an ingredient, you
set the Target Weight to 100. Keep in mind that the Units
Parameter is set in another menu. In our example we set the
Target Weight to 100 lbs. (See Fig. 4-16)
PARAMETER:TARGET WEIGHT
RANGE: .000001 - 999,999
DEFAULT: 1
Step 1. The cursor is in front of Target Weight. If you are
entering this parameter for the first time, use the
alphanumeric key pad and enter the target weight
for this ingredient. (See Fig. 4-16)
FIG. 4-16 INGREDIENT MENU/TARGET WEIGHT
Step 2. If a value already exists, press the Clear button to
clear the previous entry.
Step 3. Use the alphanumeric key pad and enter the target
weight for this ingredient. In our example we used
100.00 lbs. (See Fig. 4-17)
FIG. 4-17 TARGET WEIGHT PARAMETER
Step 4. Press the Enter button. The Target Weight is set and
the cursor moves to Target Preact. (See Fig. 4-18)
Target Preact
About Target Preact
Target Preact is the number of units above or below the set
point value (Target Weight) at which time you want the relay
to trip. Use as an “in flight” compensation value for the time
it takes for a valve, gate to close or a conveyor to stop. You
want to set the Target Preact to start closing/stopping so that
when it closes or stops completely the Target Weight Set
Point is reached.
About Smart Preact
Smart Preact is an automatic function that calculates the
loss-in-weight/gain-in-weight during a cycle to determine if
the Target Preact Set Point is set so that the cycle is within
