5. Operation of CON Controllers
5.12 User Adjustment
You can perform home return, etc.

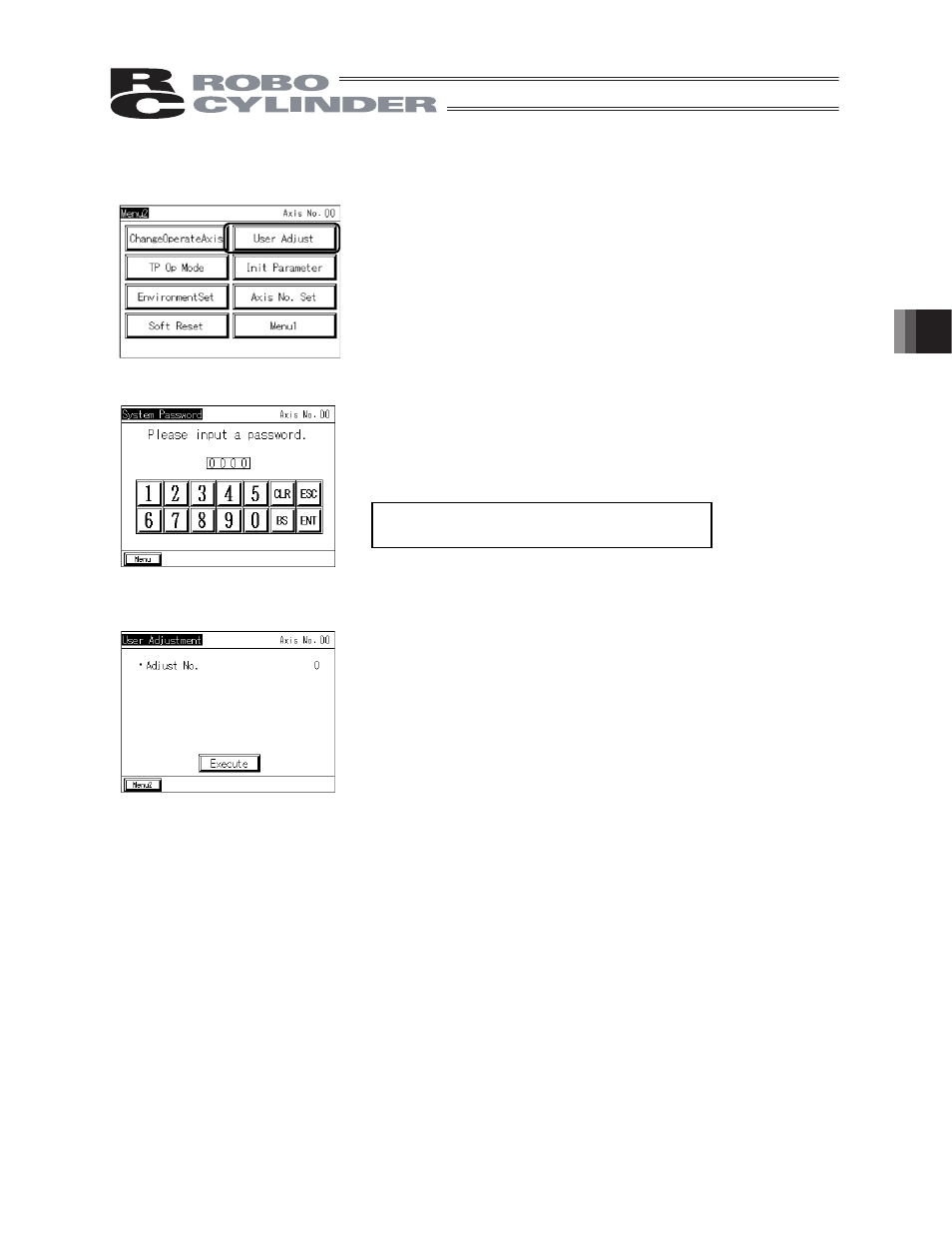

Touch [User Adjust] on the Menu 2 screen.
If a system password is set, the password setting screen appears.
Input a system password.
The user adjustment screen appears.
Touch [Adjust No.] and ten keys will be displayed.
Set the adjustment number and then touch [Execute].
[Adjust No.]
x 1:
Home return
Home return can be performed.
x 2: Axis number setting
The operation is the same as what you do on the axis number
setting screen.
x 3: Alarm list clear
The operation is the same as what you do on the alarm list
screen.
x 4: Controller restart
The operation is the same as what you do when restarting the
controller on the Menu 2 screen.
x 6: Calibration
Calibration of the load cell is performed.
x 7: Time setting
You can move to the time setting screen to set time.
(SCON-CA (CON-PT version 1.20 or later), PCON-CA
and ERC3 PIO Converter)
x 8: Maintenance information
Maintenance information can be displayed.
(SCON-CA (CON-PT version 1.20 or later), PCON-CA
and ERC3 PIO Converter)
(Note) Adjustment numbers 7 and 8 can be set only on SCON-CA,
PCON-CA and ERC3 PIO Converter.
The default password is "5119."
You can set a password on the setting screen.
