5.4 Menu Selection
2 u n e M 1 u n e M

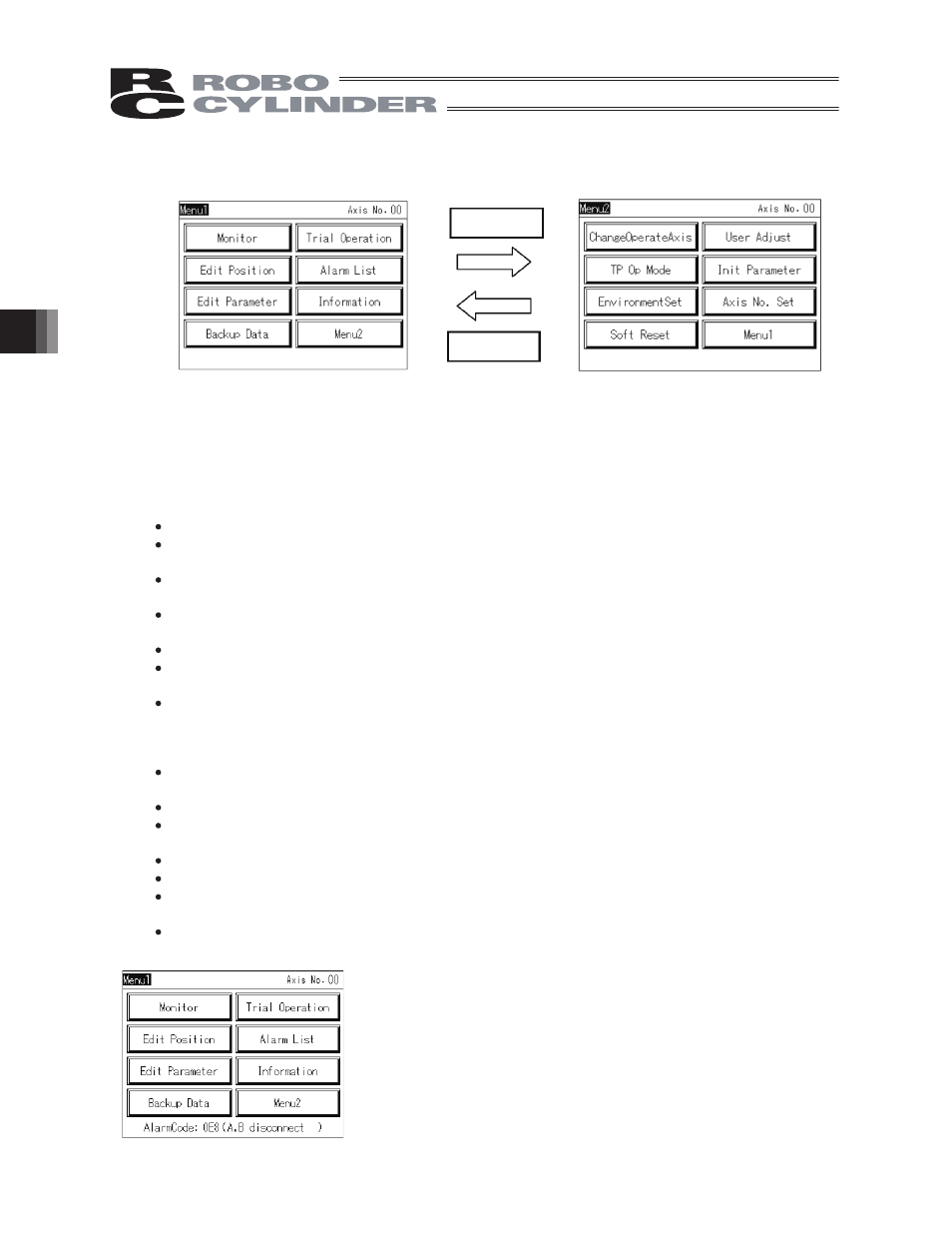

Two menu selection screens, Menu 1 and Menu 2, are available.
Touching [Menu2] on the Menu 1 screen changes the display to the Menu 2 screen.
Touching [Menu1] on the Menu 2 screen changes the display to the Menu 1 screen.
The Menu 1 screen and Menu 2 screen provide seven menu items, respectively. Select and touch
one of these items.
The screen changes to the one corresponding to the menu item you have touched.
Menu 1 list
Monitor Display the controller status. [Refer to 5.6, "Monitor."]
Edit Position Display and edit the position data table. [Refer to 5.7, "Position
Editing."]
Edit Parameter Display and edit zone boundary+ and other parameters. [Refer to
5.8, "Parameter Editing."]
Trial Operation Perform operation test for jogging, inching and axis movement.
[Refer to 5.9, "Trial Operation."]
Alarm List Display alarm details. [Refer to 5.11, "Alarm List."]
Information Display controller information such as the version. [Refer to 5.16,
"Information."]
Backup Data Transfer data between the memory of the touch-panel teaching
pendant and the controller. [Refer to 5.18, "Data Backup."]
Menu 2 list
Change Operating Axis Select the controller axis to connect the touch-panel teaching
pendant to. [Refer to 5.4, "Changing Operating Axis."]
Soft Reset Restart the controller. [Refer to 5.12, "Restarting Controller."]
TP Op Mode Select a desired TP operation mode. [Refer to 510, "TP Operation
Mode."]
User Adjust Execute home return, etc. [Refer to 5.13, "User Adjustment."]
Init Parameter Initialize parameters. [Refer to 5.14, "Parameter Initialization."]
Axis No. Set Set the axis number of the controller. [Refer to 5.15, "Axis Number
Setting."]
Environment Set Set the language and touch tone, change the system password, etc.
[Refer to 5.17, "Environment Setting."]
Menu 2
Menu 1
When an alarm generates, the corresponding alarm code and
message will appear at the bottom of the screen and the
backlight color will change to pink. If an emergency stop is
detected, the backlight color will change to red.
