167
7. Operation of MEC Controllers

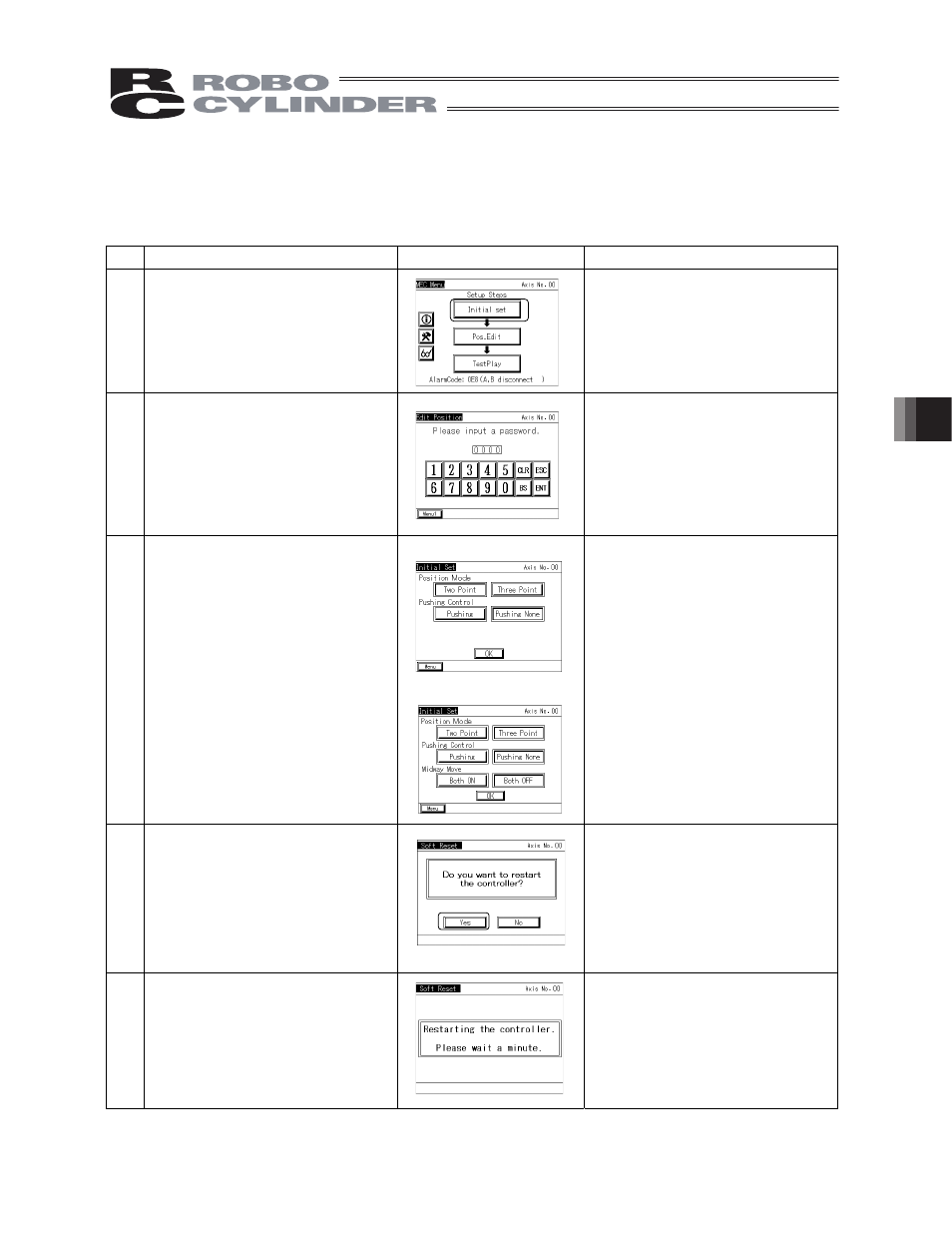

[1] Example of initial setting operation
The operation is explained using specific examples.
Example of stopping at 2 points Set as follows.
No. Operation Screen Remarks
1 Touch [Initial set] on the MEC
menu screen.
2 If the password is not “0000,” the
password entry screen appears.
Enter the password, and then
touch [
€].
The password is “5119” (factory
setting). A desired password can
be set using the “system
password” parameter accessible
from the maintenance menu.
3 x Touch and select either [Two
Point] or [Three Point] based on
the number of positioning points.
x To perform positioning operation,
select [Pushing None]. To
perform push-motion operation,
select [Pushing].
x In the case of positioning to the
intermediate position in the 3-
point stop pattern, select
[Both OFF] or [Both ON] for the
ST0 and ST1 input signals, and
then touch [OK].
Stopping at 2 points
Stopping at 3 points
Touch [Menu] to return to the first
MEC menu screen.
(Reference)
Factory setting
Stop position: [Two Point]
Push function: [Pushing None]
Intermediate point specification
method: [Both ON]
4 Touch [Yes] To make the specified items
effective, you must restart the
controller. The settings you have
made will not be reflected until the
controller is restarted.
Touch [No] to return to the
previous screen.
5
