136
6. Operation of SEP
Controllers
[3] Examples of I/O setting operations
Respective operations are explained by giving specific examples.
Example of operation mode 0 (standard movement between 2 points) Set as follows:
Operation mode Single solenoid
Use of pause command (*STP) Not used
Control Servo Control
OUT2, OUT3 output signals OUT2 HEND, OUT3 *ALM
Home AUTO (start home return upon power on)
DO signal
LS0 (backward end position detection), LS1
(forward end position detection)

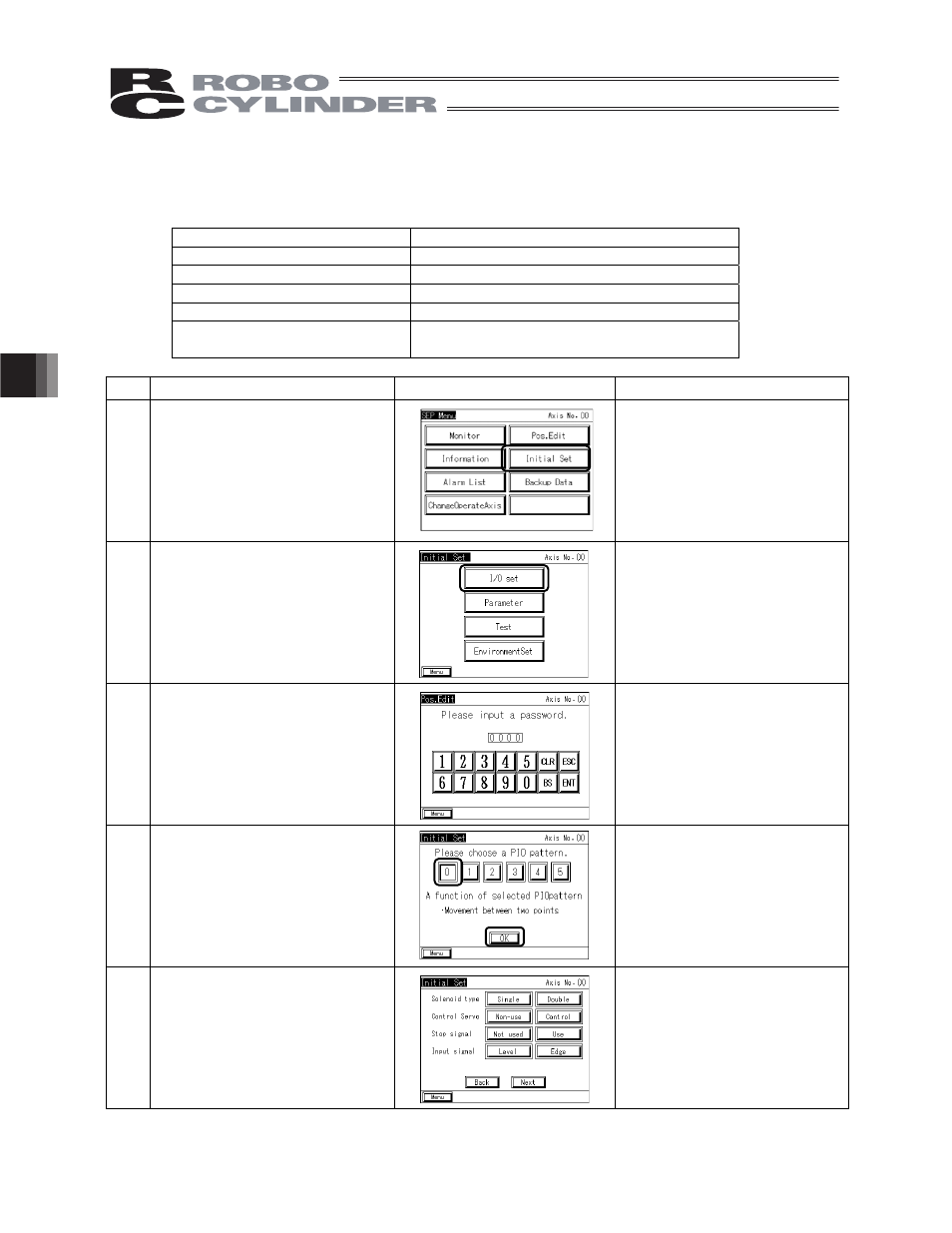

No. Operation Screen Remarks
1 On the SEP menu screen:
Touch [Initial Set]
2 Touch [I/O set]. Touch [Menu] to return to the
SEP menu screen.
3 Input a password. The password is "5119" (default
setting).
4 Touch [0] and touch [OK].
Operation pattern 0 is selected. Touch [Menu] to return to the
initial setting menu screen.
5 Touch [Menu] to return to the
initial setting menu screen.
