7. Operation of MEC Controllers
7.2 Initial
Screen

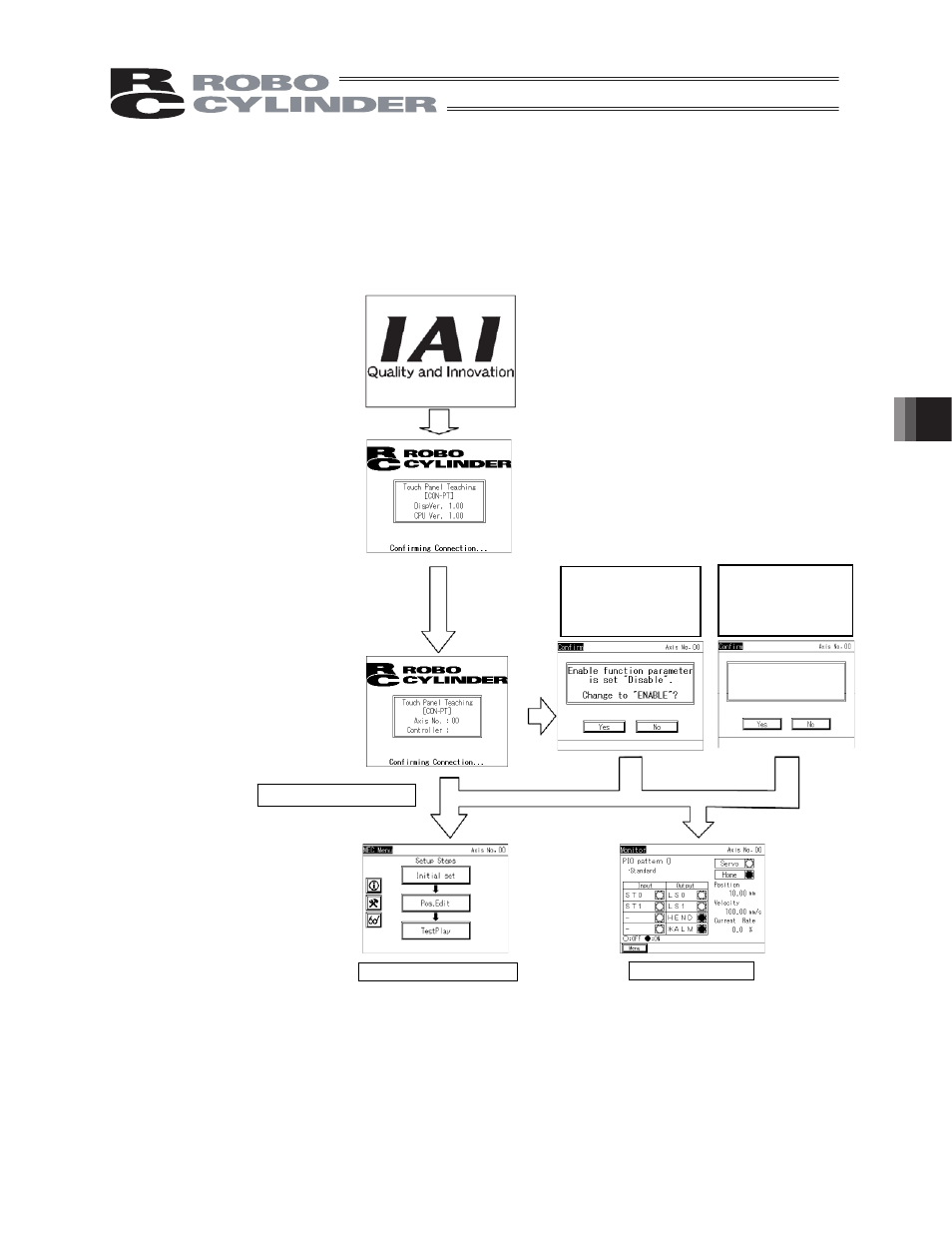

Upon connection to the controller, power is supplied to the touch-panel teaching pendant and
processing starts.
When the power is turned on, the IAI logo is displayed for approx. 1 second on the operation display
screen (hereinafter referred to as "operation screen") of the touch-panel teaching pendant, after
which version information is displayed.
On CON-PD/PG pendants,
this screen is displayed
when the enable function
parameter of the controller
is set to “Disable.”
On CON-PT pendants,
this screen is displayed
when the enable function
parameter of the controller
is set to “Enable.”
Enable function parameter is
set “Enable”.
Change to “Disable”?
* The same items can be set on the
automatic monitor setting screen
accessible from the environment
setting screen of the controller.
The menu screen appears.
wzlw
[Refer to 7.4, “Menu Selection.”]
[Refer to 7.14, “Monitor.”]
