35

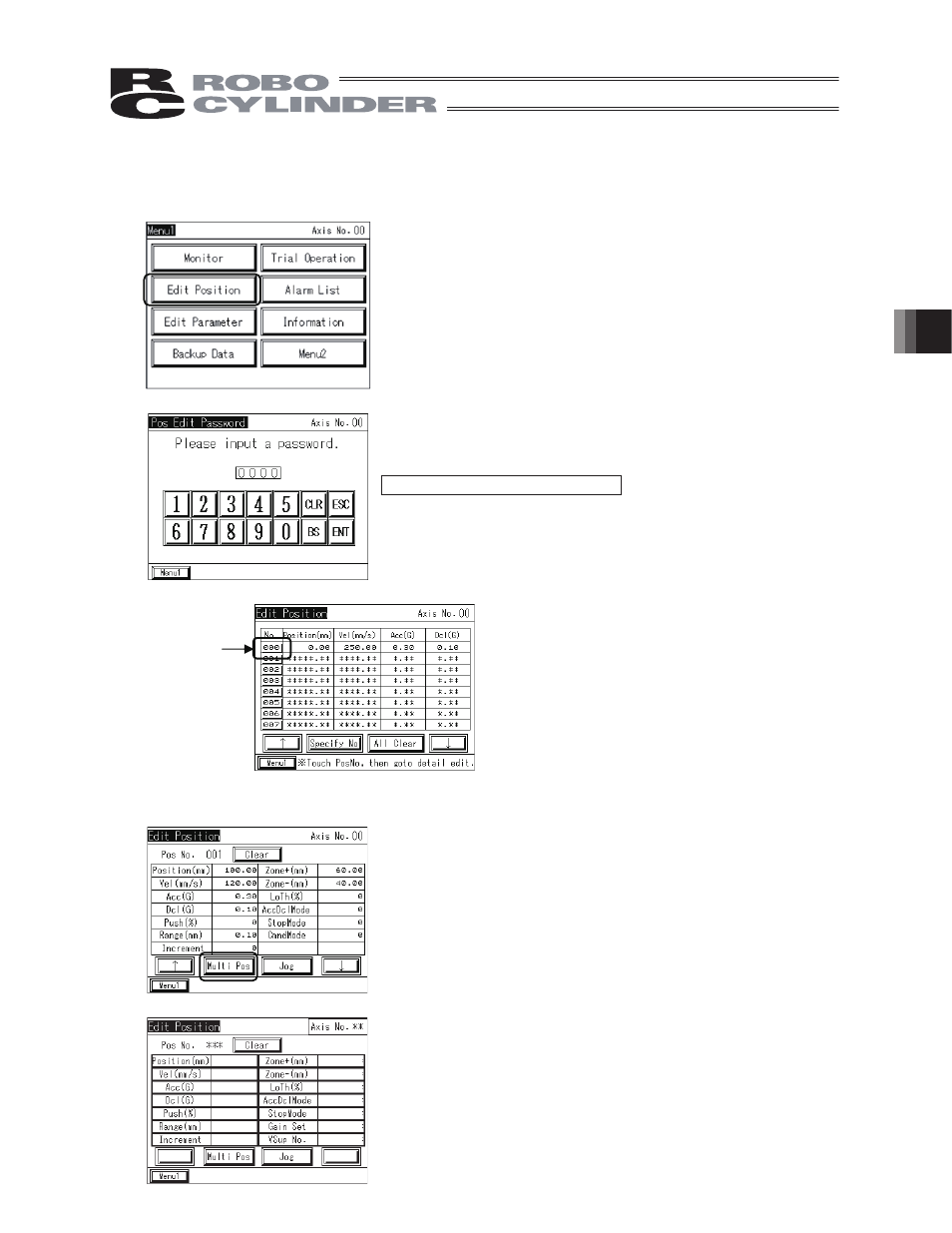

5. Operation of CON Controllers
5.6 Position Editing
Set/edit the target position, speed, acceleration, deceleration and other data related to positions. You
can move the axis by jogging or inching.
Touch [Edit Position] on the Menu 1 screen.
If a position password is set, the password setting screen appears.
Enter the position password.
The default password is "0000."
A position data table appears.
Touch Specify No. to set the position number
you want to set, and a table showing the
position number you have just set appears.
To set data other than the target position,
speed, acceleration and deceleration shown in
the table, touch other position number such as
"000."
Data of the selected position number appears.
Version V1.20 and Earlier
Touching [Multi Pos] returns the screen to the position data
table display.
Position No.
Version V1.20 or later
0
0 . 1 0
0
0 . 1 0
0 . 3 0
1 2 0 . 0 0
1 0 0 . 0 0
0
0
0
0
0
4 0 . 0 0
6 0 . 0 0
5.7
