25

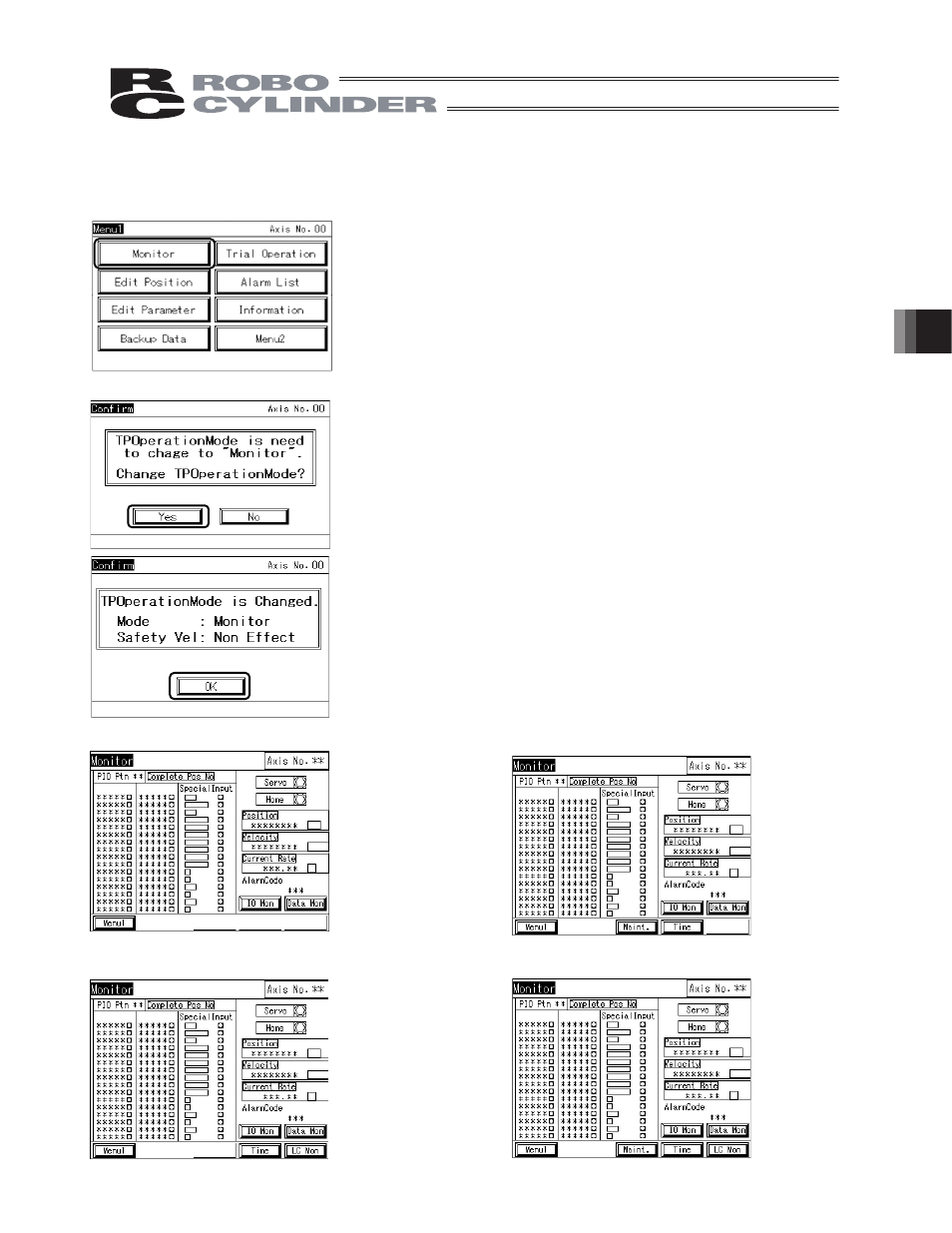

5. Operation of CON Controllers
5.6 Monitor
The I/O statuses, current position and other information of the controller connected to the serial
communication line are displayed.
Touch [Monitor] on the Menu 1 screen.
If the TP operation mode is not Monitor Mode 1 or 2, the following message screen appears.
Touch [Yes] to change to Monitor Mode 1 or 2.
If not, touch [No].
(Note) The safety speed does not change.
If the current mode is Teaching Mode 1, it changes to
Monitor Mode 1.
If the current mode is Teaching Mode 2, it changes to
Monitor Mode 2.
Touch [OK].
Models other than SCON-CA, PCON-CA, ERC3
PCON-CA, ERC3
The main monitor screen appears.
SCON-CA (CON-PT version 1.20 or later, but before 1.30)
SCON-CA (CON-PT version 1.30 or later)
Maintenance information can be displayed.
5.6
