98
6. Operation of SEP
Controllers
6. Operation of SEP
Controllers
6.5 Menu Selection

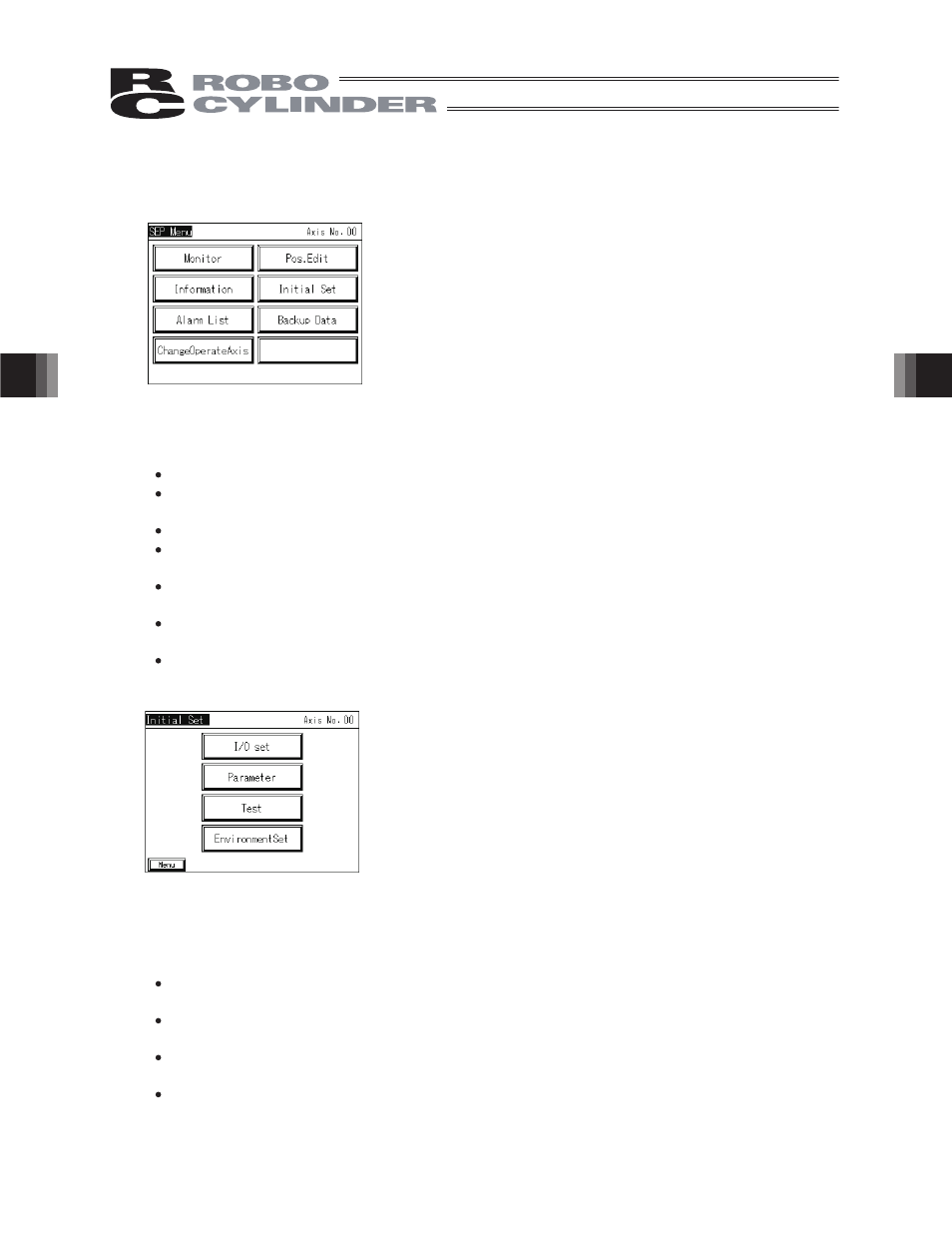

SEP menu
The SEP menu has seven items. Select and touch one of them.
The screen changes to the one corresponding to the menu item you have touched.
Menu list
Monitor Display the controller status. [Refer to 6.7, "Monitor."]
Information Display the operation pattern, version and other information. [Refer to
6.8, "Information."]
Alarm List Display alarm details. [Refer to 6.9, "Alarm List."]
Change Operate Axis Select the controller axis to connect the touch-panel teaching pendant
to. [Refer to 6.5, "Changing Operating Axis."]
Pos. Edit Set the position, push power, push band, etc. Move by jogging. [Refer to
6.10, "Position Setting."]
Backup Data Transfer data between the touch-panel teaching pendant and controller.
[Refer to 6.15, "Data Backup."]
Initial Set
Touching [Initial Set] switches to the next selection screen, which is the initial setting screen.
The initial setting screen shows a menu consisting of four items. Select and touch one of them.
The screen changes to the one corresponding to the menu item you have touched.
Touch Menu to return to the previous SEP menu screen.
Initial setting menu list
I/O Set Select an operation pattern (PIO pattern 0 to 5), set an operation mode
(single solenoid, double solenoid), etc. [Refer to 6.11, "I/O Setting."]
Parameter Set parameters such as the default positioning band. [Refer to 6.12,
"Parameters."
Test Perform I/O tests and operation tests for axis movement. [Refer to 6.13,
"Test."]
EnvironmentSet Set the environment such as touch tone. [Refer to 6.14, "Environment
Setting."]
