5. Operation of CON Controllers
2) Numerical input
Example 1 Move back and forth between the two points of 30 mm and 250 mm at a speed of 300
mm/sec.

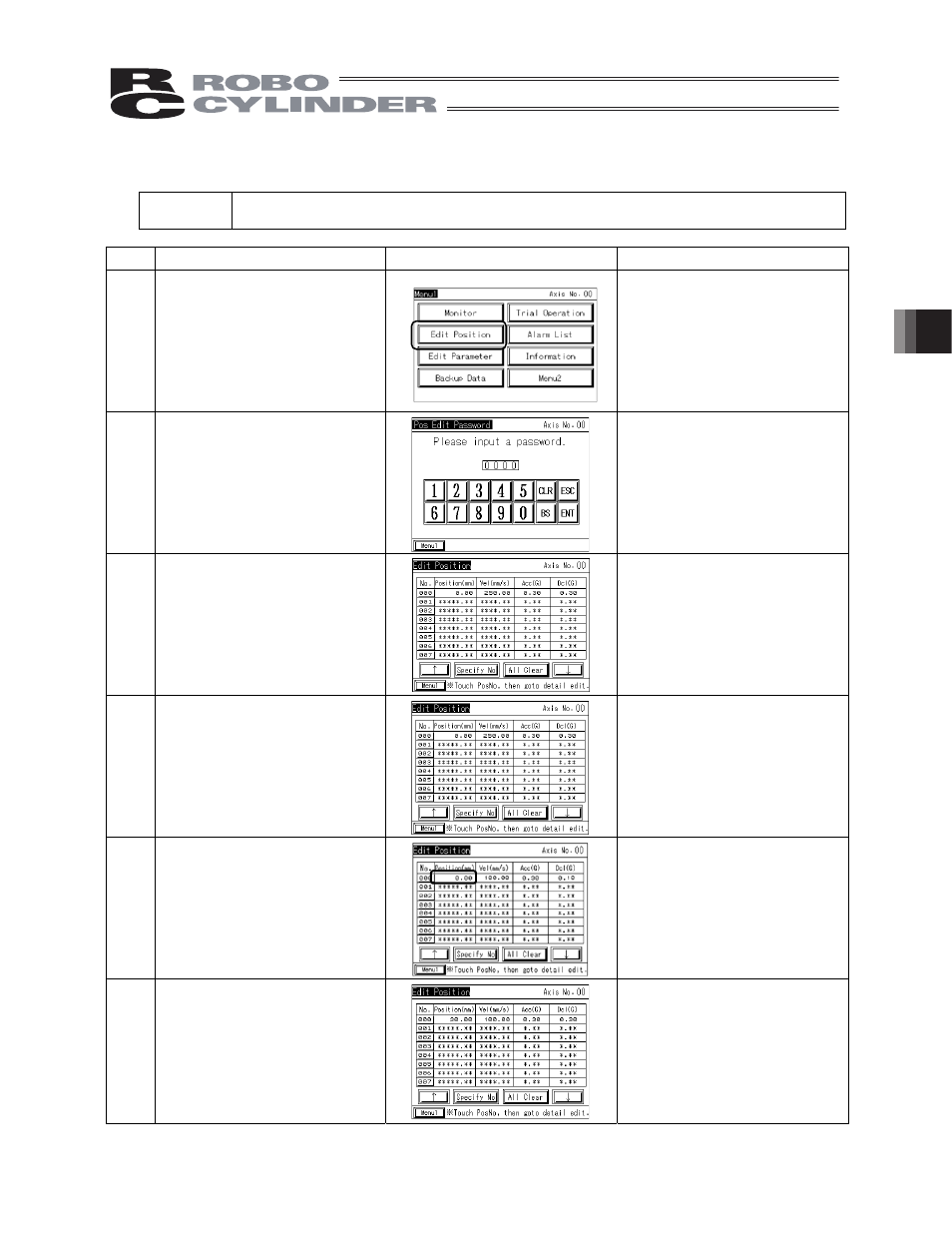

No. Operation Screen Remarks
1 Touch [Edit Position].
2 If the password is not "0000,"
the password screen appears.
Input a password. The default password is
"0000."
3 The position data table screen
appears.
4 Touch [ n] and [p] to display the
table showing the position
number you want to set.
Position data fields in which no
data is registered yet contain an
"*" (asterisk).
5 Touch the target position of the
desired position number.
In this example, data is entered
for No. 0.
When the numerical keypad
appears, touch [3], [0] and then
touch [ENT]. To reenter the value, touch
[ESC].
6 When registering a new position
data, the default values set by
user parameters are
automatically entered for the
velocity, acceleration,
deceleration, etc.
In this example, the default
value is 100 mm/s.
