7. Operation of MEC Controllers
7. Operation of MEC Controllers
7.4 MEC Menu Selection

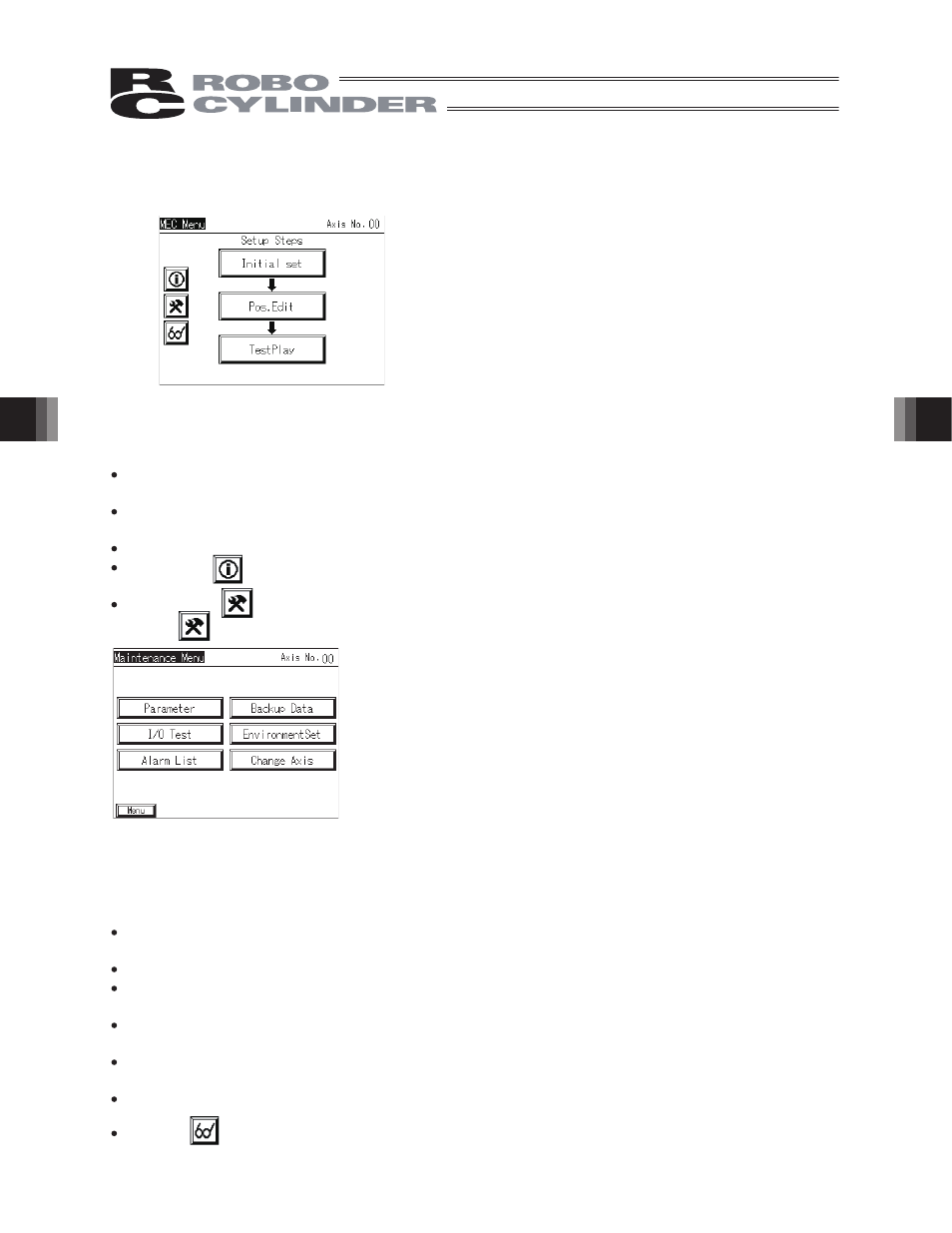

MEC menu
The MEC menu has six items. Select and touch one of them.
The screen changes to the one corresponding to the menu item you have touched.
Menu list
Initial Set Set the operation pattern (stopping at 2 points or 3 points).
[Refer to 7.6, “Initial Setting.”]
Pos. Set Set the position, push force, push band, etc. The axis can be operated manually.
[Refer to 7.7, “Position Setting.”]
Trial Operation Conduct axis movement operation tests. [Refer to 7.8, “Trial Operation.”]
Information The operation pattern, version and other information are displayed. [Refer to 7.9,
“Information.”]
Maintenance
Touching switches the display to the maintenance menu screen, which is the next selection screen.
The maintenance screen shows five menus, so select and touch a desired menu.
The display will change to the menu screen corresponding to the menu you have touched.
Touch [Menu] to return to the previous MEC menu screen.
Maintenance menu list
Parameter Set the default positioning band and other parameters. [Refer to 7.10,
“Maintenance – Parameters.”]
I/O Test Conduct I/O Tests. [Refer to 7.11, “Maintenance – I/O Tests.”]
Alarm List Detail internal information of alarms are displayed. [Refer to 7.12, “Maintenance –
Alarm List.”]
Backup Data Transfer data between the touch-panel teaching pendant and controller. [Refer to
7.13, “Maintenance – Data Backup.”]
Environment Set Set the touch sound and other environment specifications. [Refer to 7.14,
“Environment Setting.”]
Change Axis Select axis.
Monitor The controller status is displayed. [Refer to 7.15, “Monitor.”]
