189
7. Operation of MEC Controllers

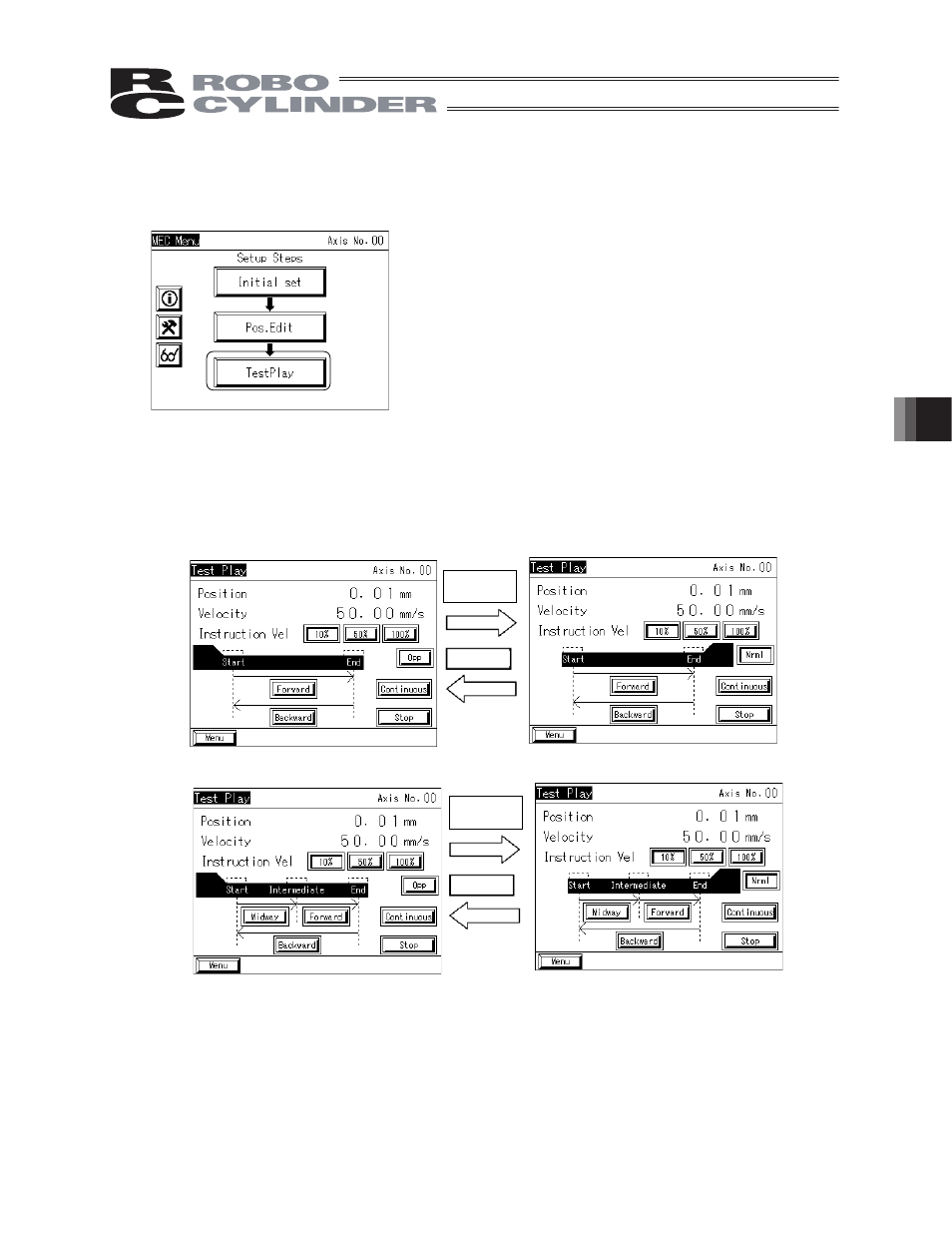

7.7 Trial Operation
You can perform I/O tests and axis movement operation tests.
Touch [TestPlay] on the MEC menu screen.
x Operation test: You can perform operation tests of axis movement.
A screen corresponding to the operation pattern you have selected appears.
The display can be switched between the normal mode and reversed-home mode.
If your actuator is of the reversed-home specification, you can switch to the reversed-home mode
to align the display with the actual actuator.
Stopping at 2 points (Reversed home)
Reversed
home
Stopping at 3 points (Reversed home)
Stopping at 3 points
Stopping at 2 points
Normal
Normal
Reversed
home
7.8
