6. Operation of SEP
Controllers
3) Jog (Use the arrow keys [Jog-] and [Jog+] to jog the actuator to the target position and then acquire
the achieved position (current position) as the forward end position or backward end position).
An example of operation mode 0 (standard movement between 2 points) is explained.
How to acquire the current position, or 80.0 mm, as the backward end position is explained.

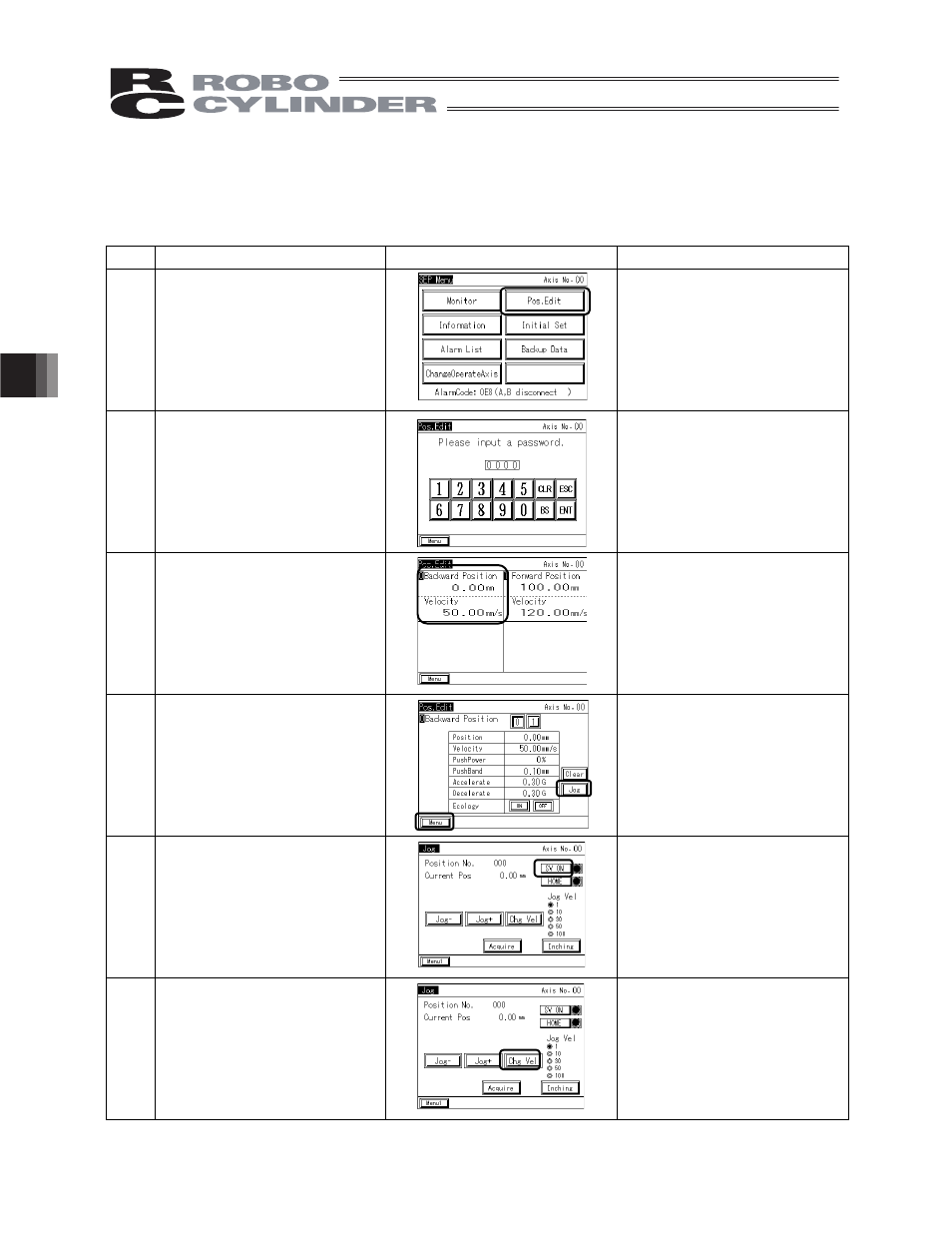

No. Operation Screen Remarks
1 Touch [Pos. Edit] on the SEP
menu screen.
2 If the password is other than
"0000," the password input
screen appears.
Input a password.
You can set a password for
position setting from "Position
edit password" on the
parameter edit screen.
3 Set the position, acceleration
and deceleration relating to the
backward end position.
Touch [Backward Position].
Touch [Menu] to return to the
SEP menu screen.
4 Touch [Jog]. Touch [Menu] to return to the
position setting screen.
* Perform home return if not
already completed.
5 If the servo is off, touch [SV ON]
to turn on the servo.
6 Touch [Chg Vel] to set a desired
jog speed.
