13

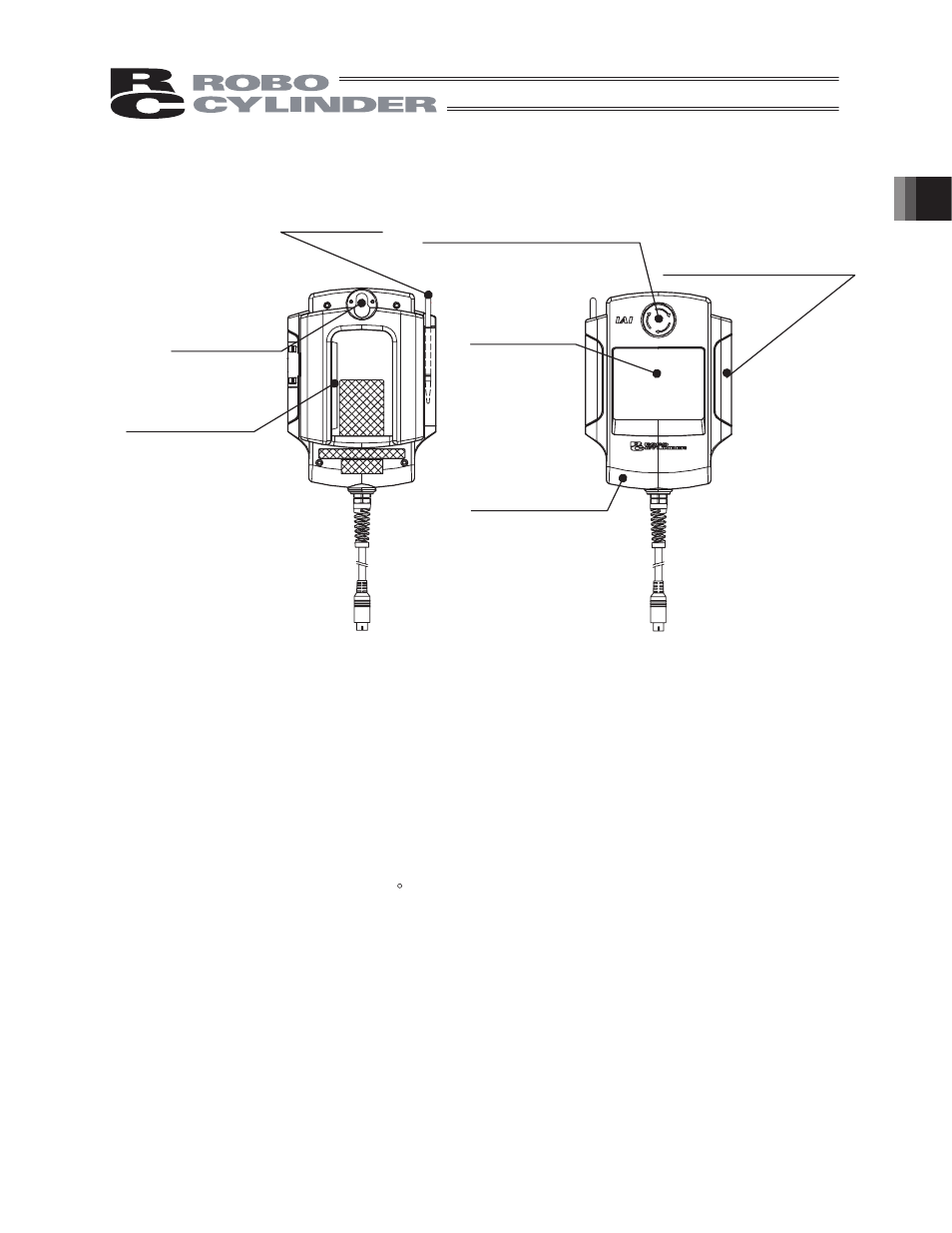

2. Explanation of Each Part
[4] Wall-mounting
hook
[3] Touch pen [2] EMERGENCY STOP (pushbutton
switch for emergency stop)
(Note) Do not open this lid.
(for future expansion)
[1] Touch panel
operation
display screen
[5] Strap securing part
2. Explanation of Each Part
[1] Touch-panel operation display screen
The screen consists of a STN monochrome LCD and a touch panel.
Various settings that have been edited or taught are displayed.
To operate the screen, use a finger or the touch pen to touch
(Note 1)
desired parts of the touch
panel.
(Note 1) This touch panel is of analog resistance membrane type, so do not touch two or more
locations on the screen at the same time.
If two or more locations are touched at the same time, the centers of all touched
locations may respond and trigger multiple operations.
(Note 2) When operating the touch panel, do not apply a force exceeding 0.5 N.
If any greater force is applied, the touch panel may be damaged.
(Note 3) The life of touch panel is approx. 1 million touches at the same location. (Assuming a
use environment of 25 C)
[2] EMERGENCY STOP (Pushbutton switch for emergency stop)
This switch actuates an emergency stop.
[3] Touch pen
This touch pen is used to touch the touch-panel operation display screen.
[4] Wall-mounting hook
This hook is used to mount the touch panel on a wall.
[5] Strap securing part
This part is used to attach a strap (optional).
[6] Dead-man Switch
(CON-PD, PG)
