5. Operation of CON Controllers
5.8.1 Jog/Inching Operation
[Jog operation]
You can perform jog operation.

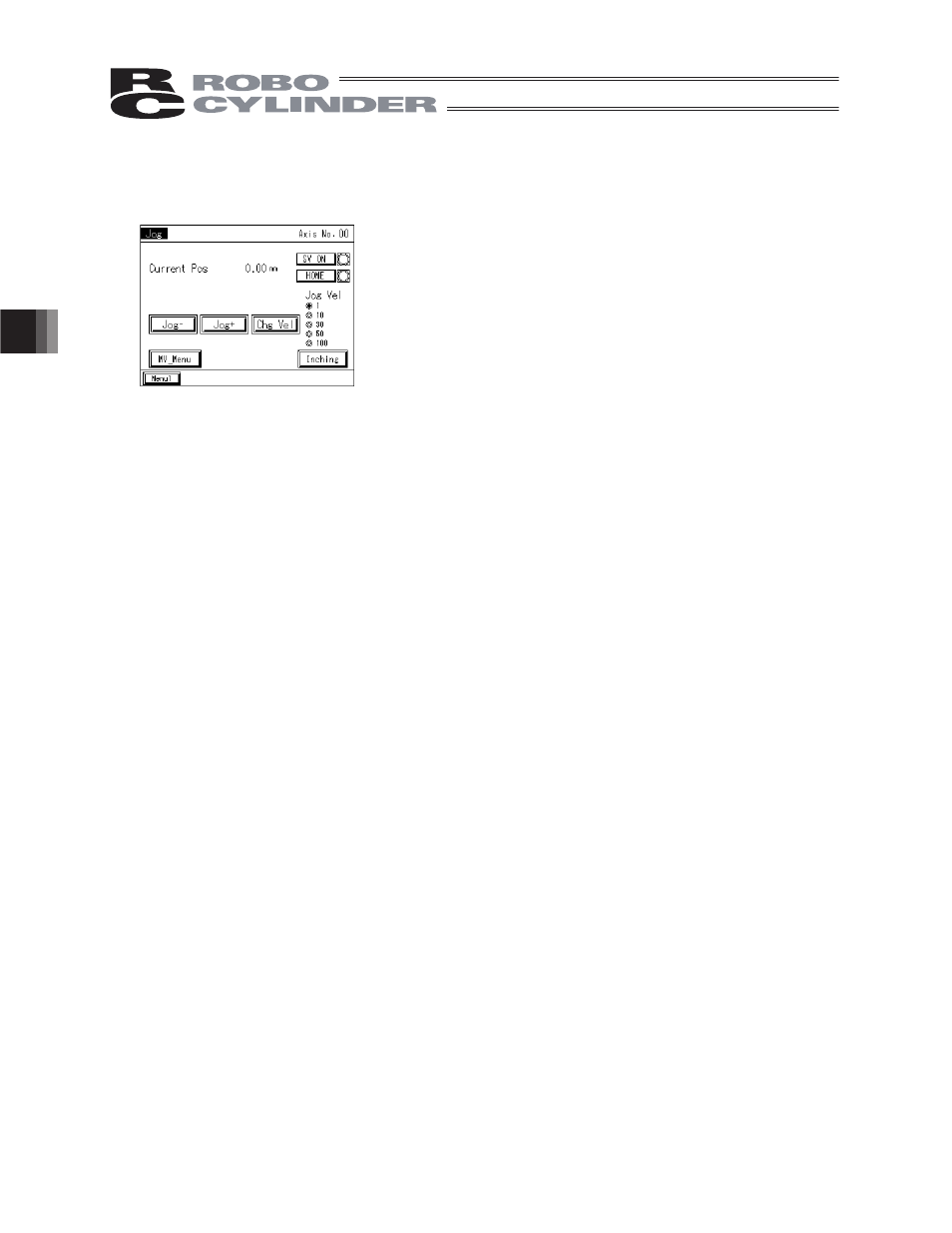

Operation on the jog screen
x [Jog-], [Jog+]: The axis jogs while each button is touched. [Jog-] moves the axis in the negative
direction, while [Jog+] moves the axis in the positive direction.
x [SV ON]: Touching [SV ON] while the servo is off turns on the axis servo and O becomes
lit. Touching [SV OFF] while the servo is on turns off the axis servo and O
becomes unlit.
x [HOME]: Touching [HOME] while home return is not yet completed causes the axis to
return home and O becomes lit.
x [Chg Vel]: The jog speed changes in the order of 1, 10, 30, 50 and 100 mm/s every time
[Chg Vel] is touched.
x [Inching]: Touching [Inching] changes to the inching screen.
x [Menu1]: Move to the Menu 1 screen.
