148
6. Operation of SEP
Controllers

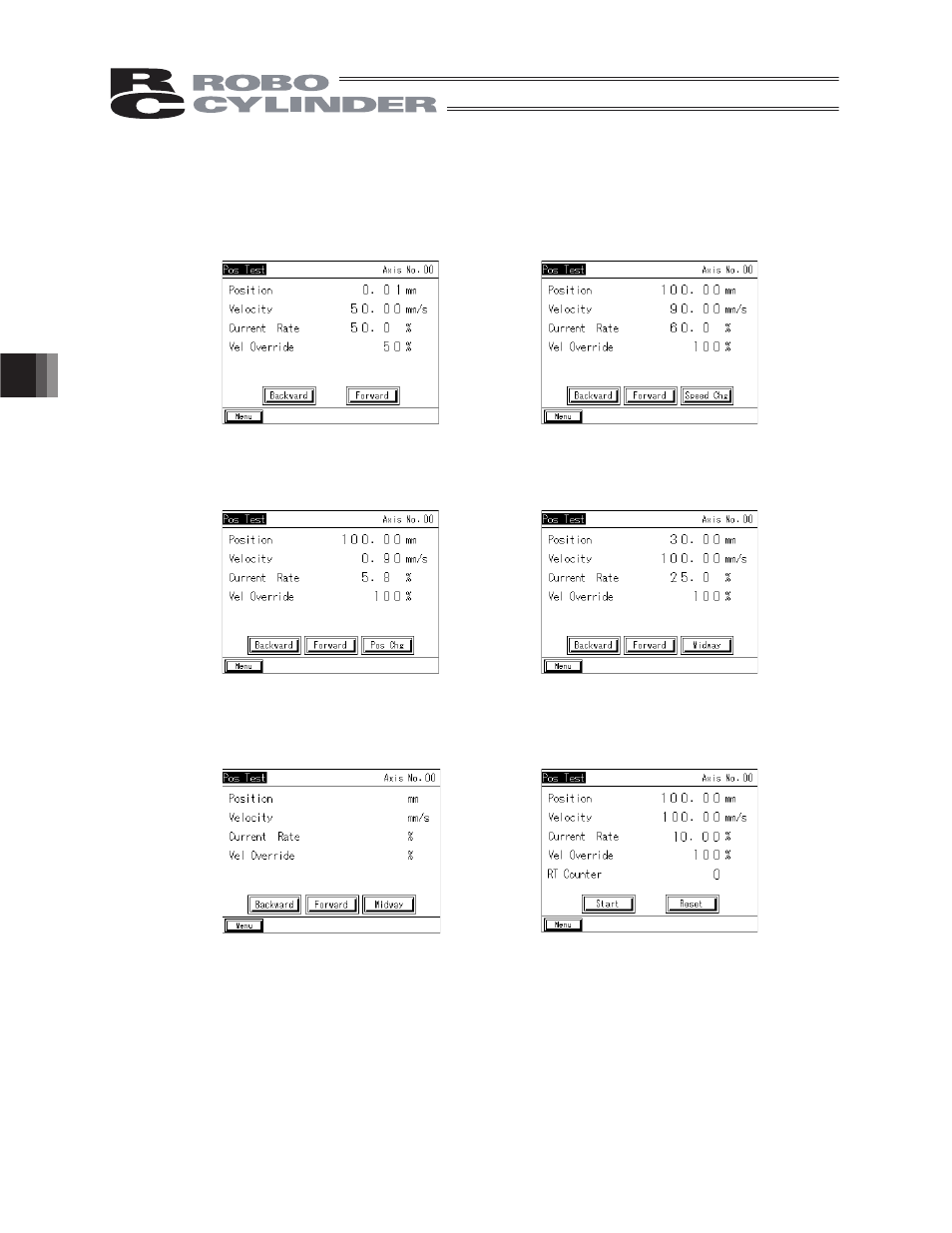

x Pos Test: Operation tests for axis movement can be performed.
The screen corresponding to the selected operation pattern appears.
Operation pattern 0
(standard movement between 2 points)
Operation 1 (change travel speed)
Operation pattern 2 (change position data)
Operation pattern 3
(movement by 2 inputs among 3 points)
Operation pattern 4
(movement by 3 inputs among 3 points)
Operation pattern 5
(continuous back-and-forth operation)
䢸䢸 䢰䢲䢲
䢹䢲 䢰䢲䢲
䢵䢸 䢰䢲
䢳䢲
