7. Operation of MEC Controllers
7.7 Position Setting (Position Data Setting and Manual Axis Operation (Jogging,
Inching))
The position, push force, push band and other position data are set. You can move the actuator by
jogging or inching.

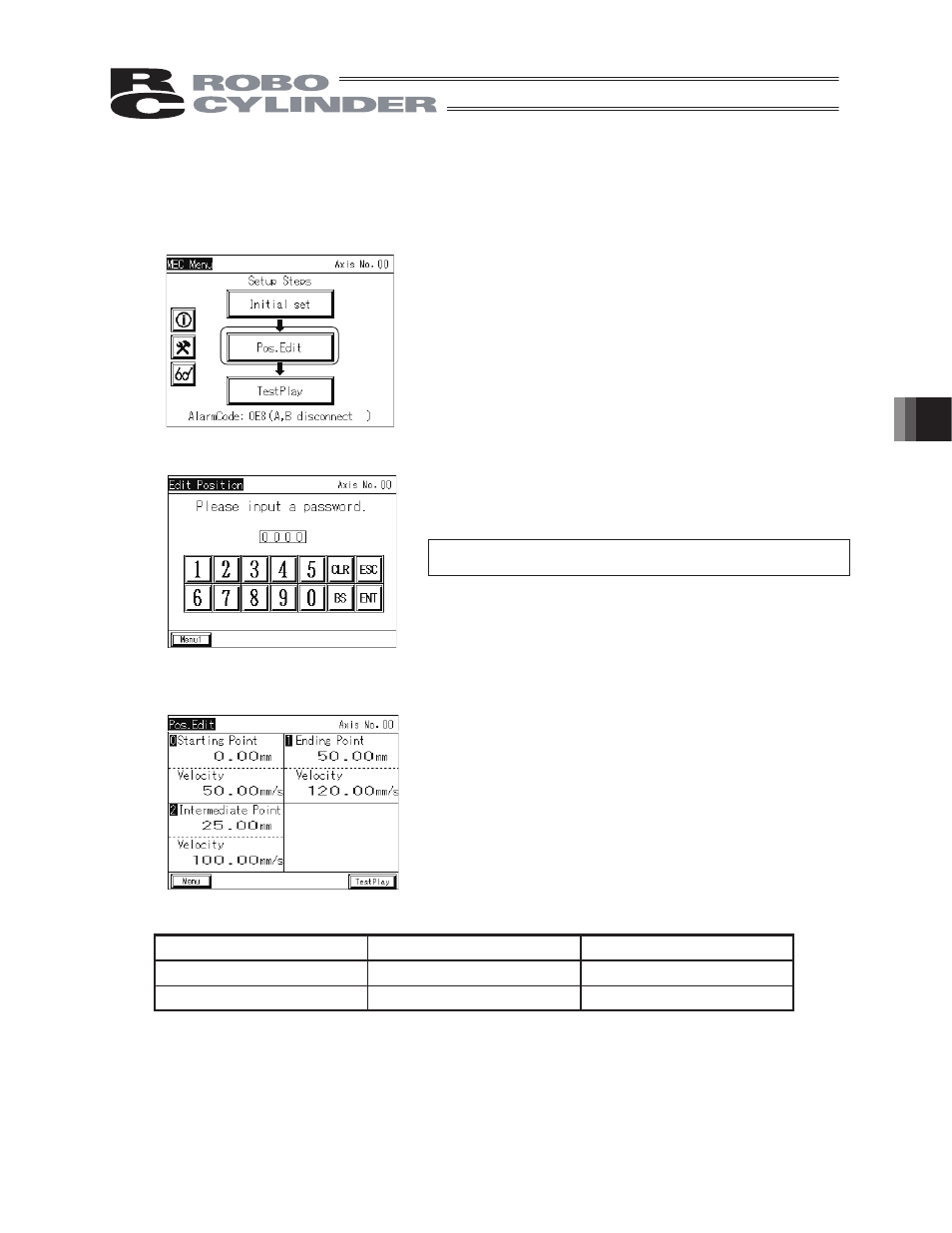

Touch [Pos. Set] on the MEC menu screen.
Before the display switches to the position setting screen, the password entry screen appears if the
password is other than “0000.”
Enter the password using the numeric keypad, and then
touch [ENT].
A desired password can be set in the “position data edit
password” field of the parameter edit screen.
If the valid password has been set, the display switches to the position setting list screen. The
displayed items vary depending on the operation pattern.
Touch the position you want to set.
Touch [Menu] to return to the MEC menu screen.
The screen shown to the left is an example of Stopping
at 2 points.
Number of positions to be set
Operation pattern Movement Number of positions to be set
Stopping at 2 points Move between 2 points
Stopping at 3 points Move between 3 points
The set value of each position is shown.
