178
7. Operation of MEC Controllers

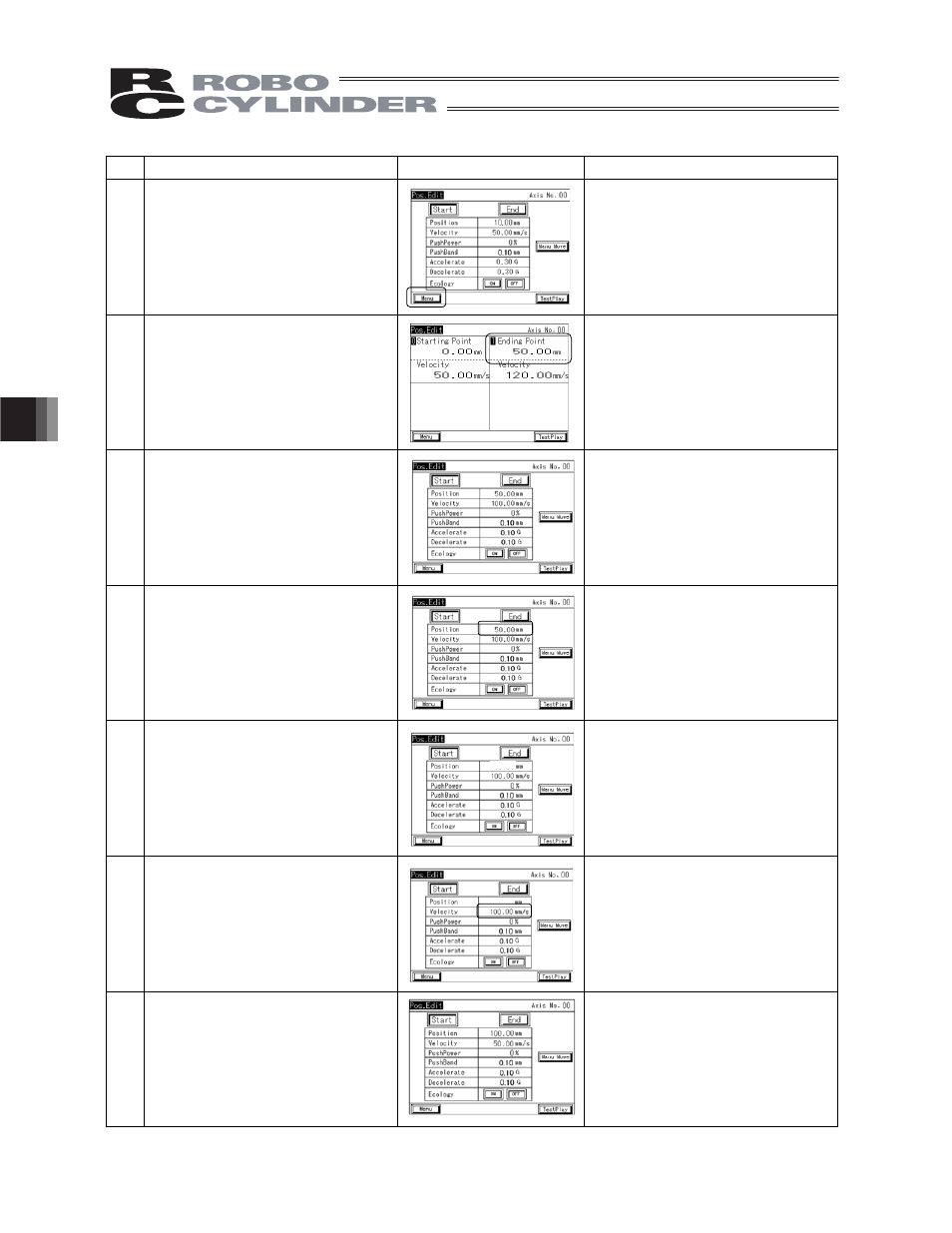

No. Operation Screen Remarks
12 Touch [Menu].
13 Set the position relating to the end
point, acceleration, and
deceleration.
Touch [Ending Point].
Touch [Menu] to return to the MEC
menu screen.
14 The display switches to the end
point screen.
Set the position relating to the end
point, acceleration, and
deceleration.
Touch [Menu] to return to the
position setting screen
15 Touch the value field of position.
When the numeric keypad is
displayed, touch [1], [0], [0], and
then [ENT]. Touch [Menu] to return to the
position setting screen
16 “100” is shown in the position field. Touch [Menu] to return to the
position setting screen
17 Touch the value field of position.
When the numeric keypad is
displayed, touch [5], [0], and then
[ENT]. Touch [Menu] to return to the
position setting screen
18 “50” is shown in the speed field. Touch [Menu] to return to the
position setting screen
