Panasonic MINAS E-series - Manual (Page 14)

14
M K D E T 1 3 1 0 P
1~4 5~6 11~12 8~9 7 10
Special specifications
Control Mode
P: Position Control
Current rating of current detector
Power supply
1: Single-phase 100 V
2: Single-phase 200 V
3: Three-phase, 200 V
5: Single-phase/Three-phase, 200 V
Maximum current rating of power element
Symbol
T1
T2
Maximum current rating of power element
10A
15A
Symbol
05
10
Current rating of current detector
5A
10A
Outer frame symbolic characters
Symbol
MKDE
MLDE
Frame name
E-Series K frame
E-Series L frame
Introduction
General
MINAS-E series is a unit of an AC servo motor and driver with downsized capability and performance that are useful
for positioning of a motor whose capacity is small from 50W to 400W.
By adopting 2500 P/r incremental encoder with velocity response frequency of approximately 400 Hz and 5 wires,
we could omit wiring.
The equipment includes real-time auto tuning and enables automatic setting of complicated gain tuning. In addition,
it has a damping control function that provides for stable stop performance and contributes to miniaturization of the
equipment and reduction of tact time.
It supports a console (available as an option) capable of monitoring such as display of rotation speed, parameter
setting, test run (JOG operation), parameter copying, etc., and pursues maximum ease for use.
This document is designed for you to properly and sufficiently use functions of MINAS-E series with such excellent
features.
Cautions
(1) No part or whole of this document may be reproduced in any form or by any means.
(2) Contents of this document are subject to change without notice.

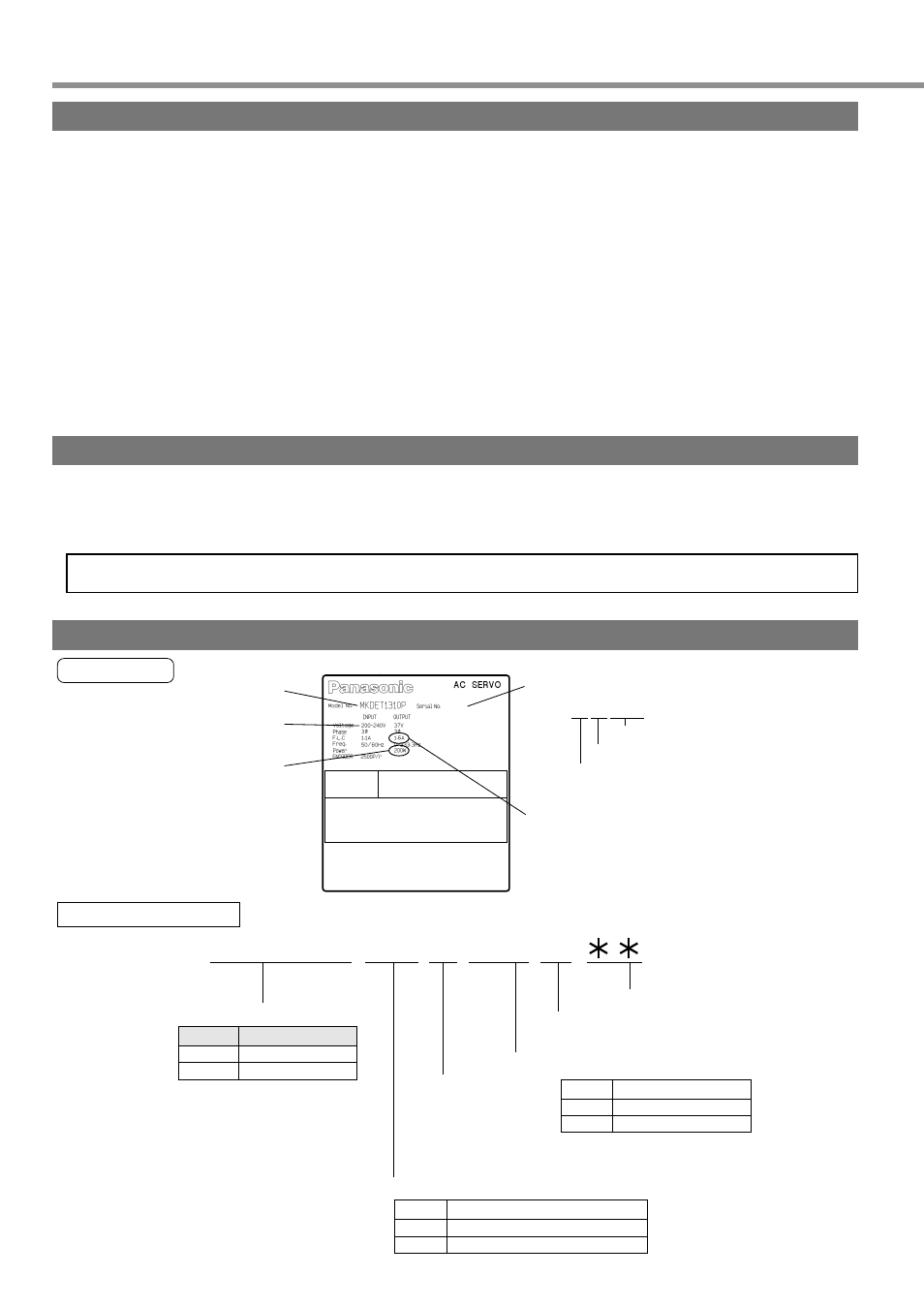

Model of Driver
Name plate
Model Designation
After Opening the Package
• Make sure that the product is what you ordered.
• Check whether the product is damaged.
• The instruction manual (Safety edition and Extracted edition) is included in a carton box.
If the product is not what you purchase, or it is, or damaged, contact dealer or sales agent.
Model
Rated input voltage
Rated motor output
Rated output current
Serial Number
Ex.:03010001
Lot Number
Month of production
Year of production
(Lower 2 digits of AD year)
03010001
