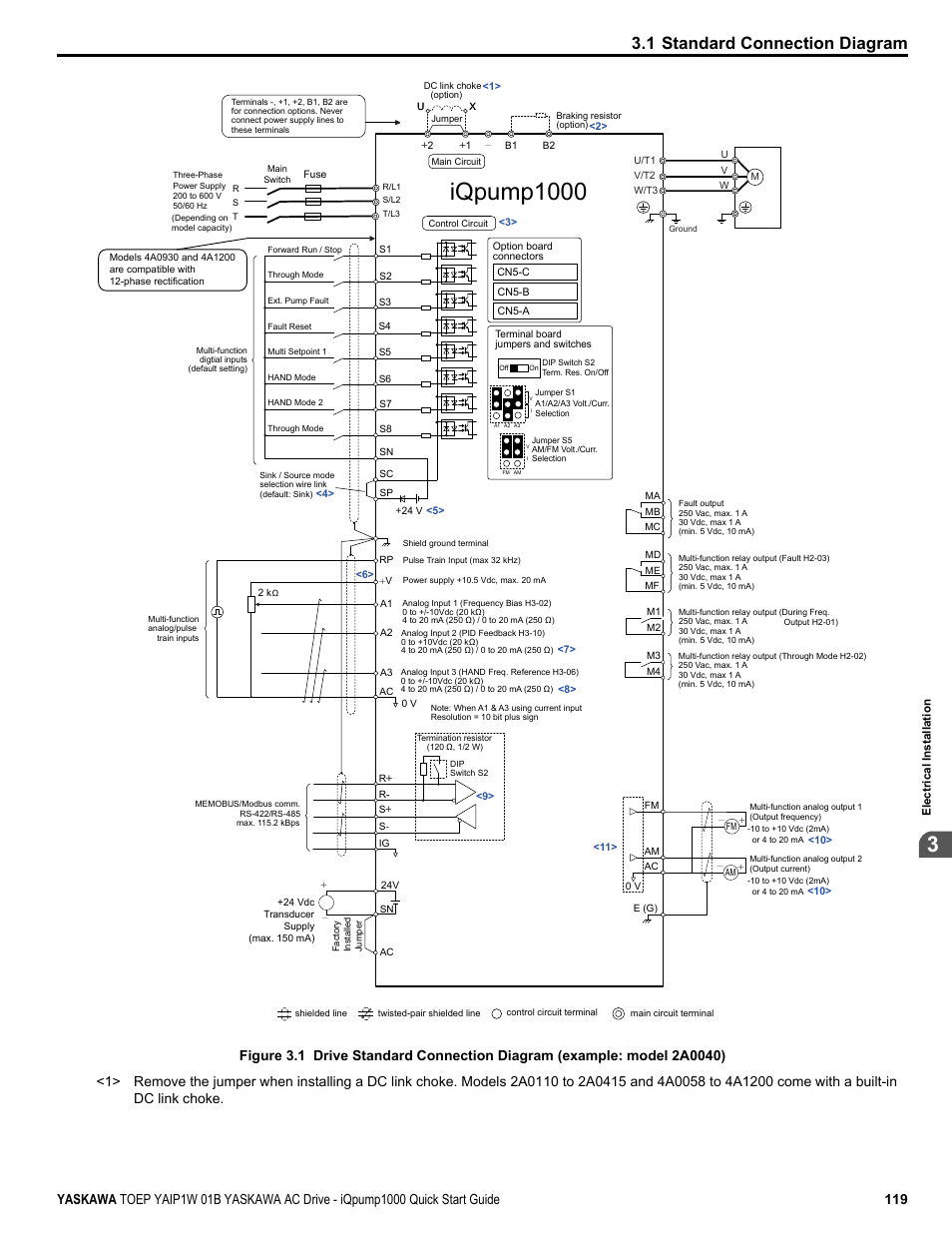

Figure 3.1, Iqpump1000, 1 standard connection diagram – Yaskawa iQpump1000 AC Drive Quick Start User Manual
Page 119
