YASNAC PC NC Operating Manual Chapter 3: HMI Process Operation
3 - 34
3.3.4 Timers Screen

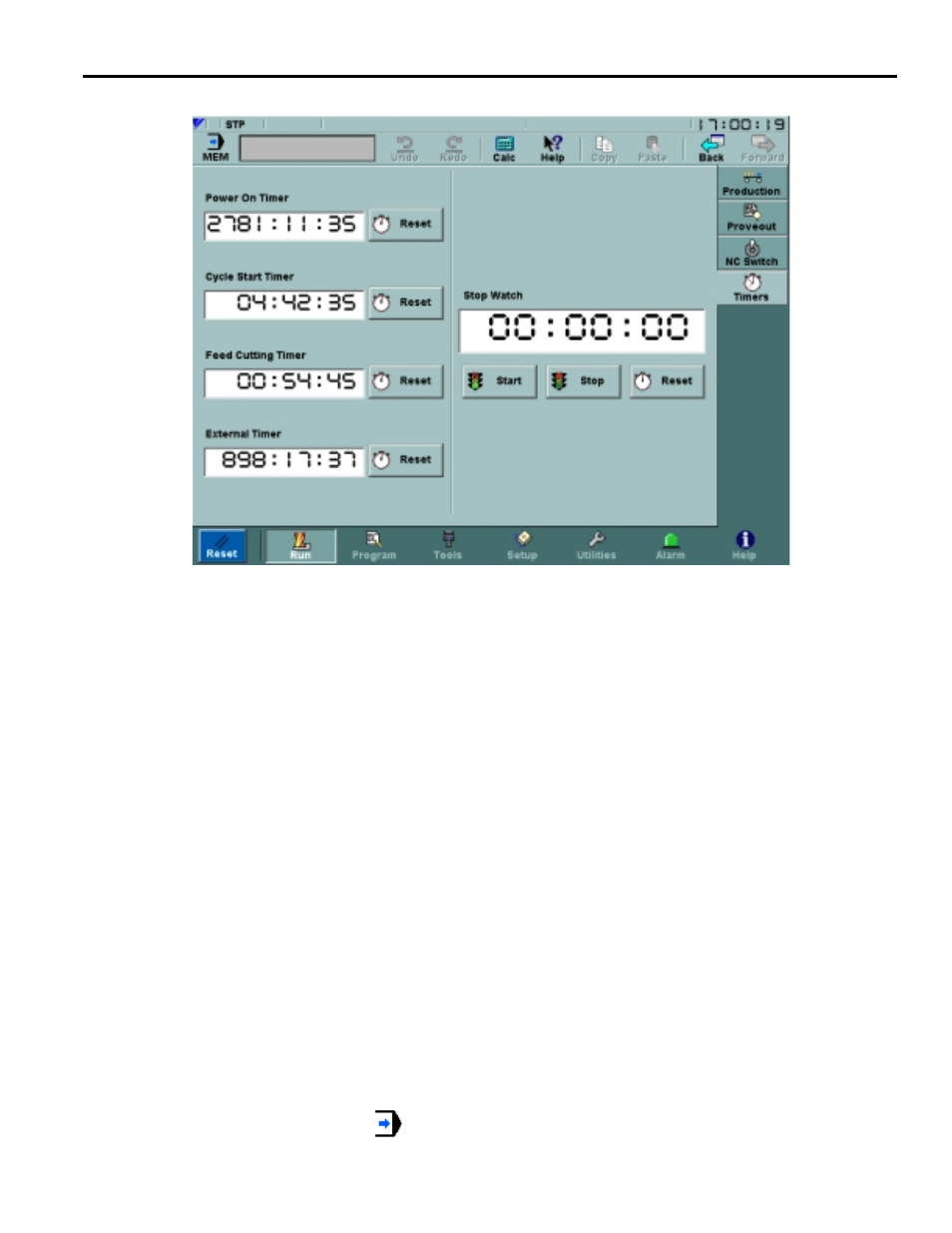

Fig. 3.3.4.1 The Timers Screen
The Timers screen, shown in Figure 3.3.4.1 on page 34, is used to display and reset CNC timers.
The Power On Timer displays the total accumulated time after turning the power ON.
The Cycle Start Timer displays the total accumulated time in which the NC has operated in the
automatic mode.
The Feed Cutting Timer displays the total accumulated time in which the NC has operated in the
cutting mode.
The External Timer displays the total accumulated time in which external input signals have
been ON.
Using the Cycle Start Timer:
• Using the File:Editor screen, create and save the following program:
O00001
G04P10.
M30
• Set The NC to memory mode.
